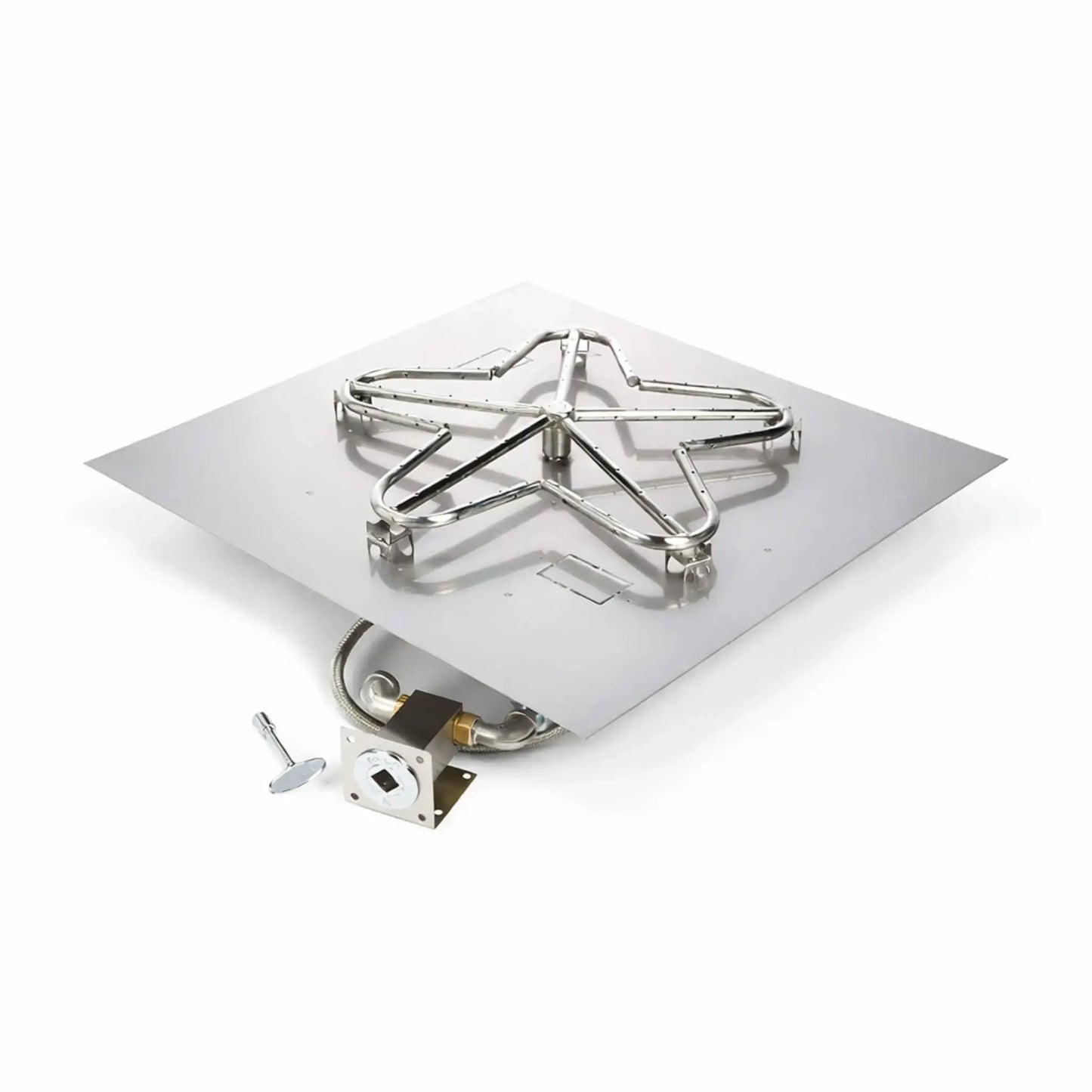

• Clean product image of the HPC Fire Inspired Hearth Products Controls Square Flat Pan Match Lit CSA MLFPK FLEX burner kit on a white background, featuring a stainless steel square flat pan with a star-shaped burner, flexible gas line, and key valve bracket assembly. The polished metal finish and exposed components make it easy to see the full system layout for fire pit installation.

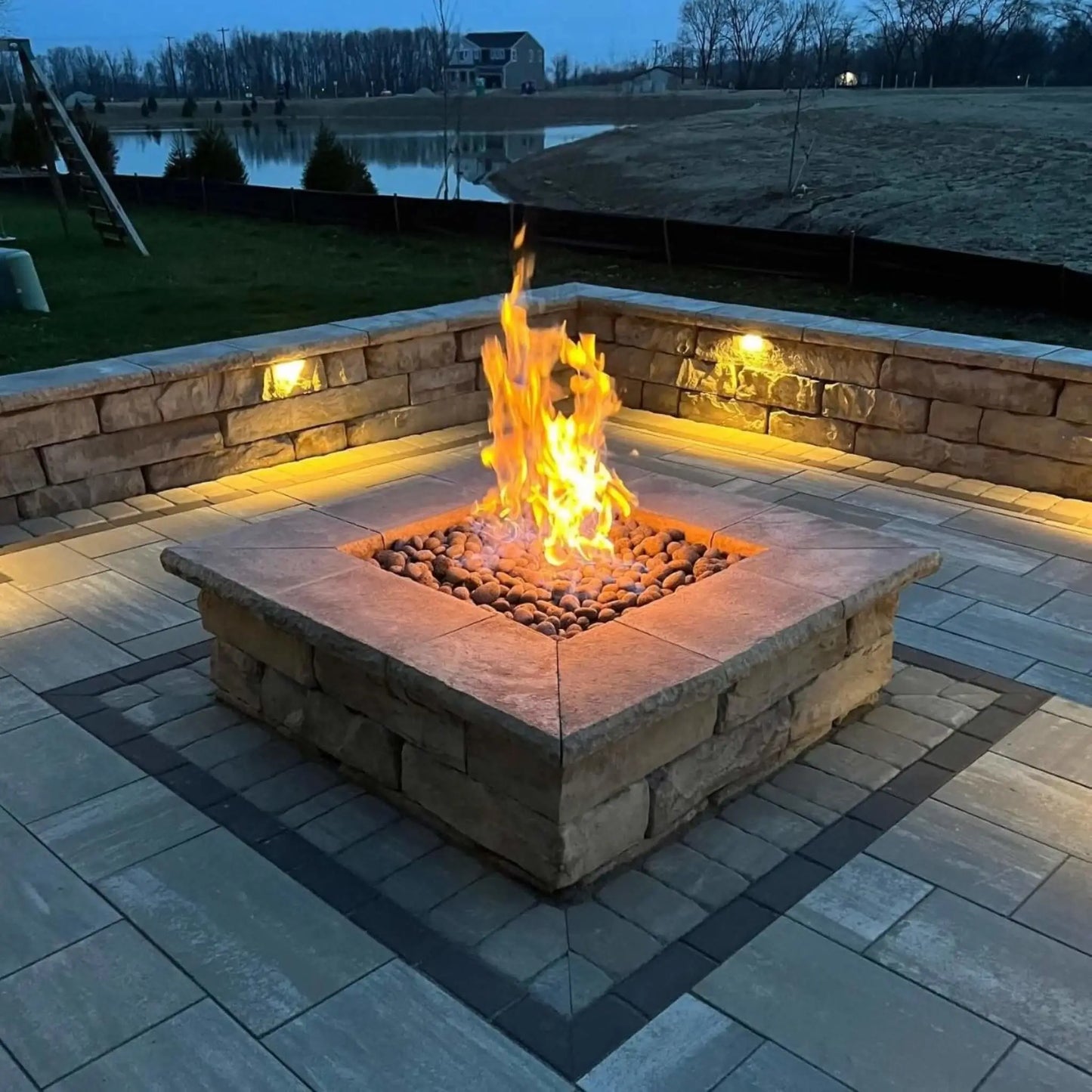

  • A beautifully lit square fire pit using the HPC Fire Hearth Products Controls Square Fire Pit Burner Flat Pan Match Lit CSA MLFPK FLEX system, centered in a paver patio at dusk. Warm flames rise over lava rock, complemented by built-in seating walls with ambient lighting, overlooking a calm backyard pond setting.
  • Hand holding a blue long-reach butane lighter igniting a small flame at the tip, designed for safely lighting outdoor fire pits, fireplaces, and gas burners. The extended black nozzle allows precise ignition from a distance, making it ideal for match-lit fire pit systems and manual lighting applications.

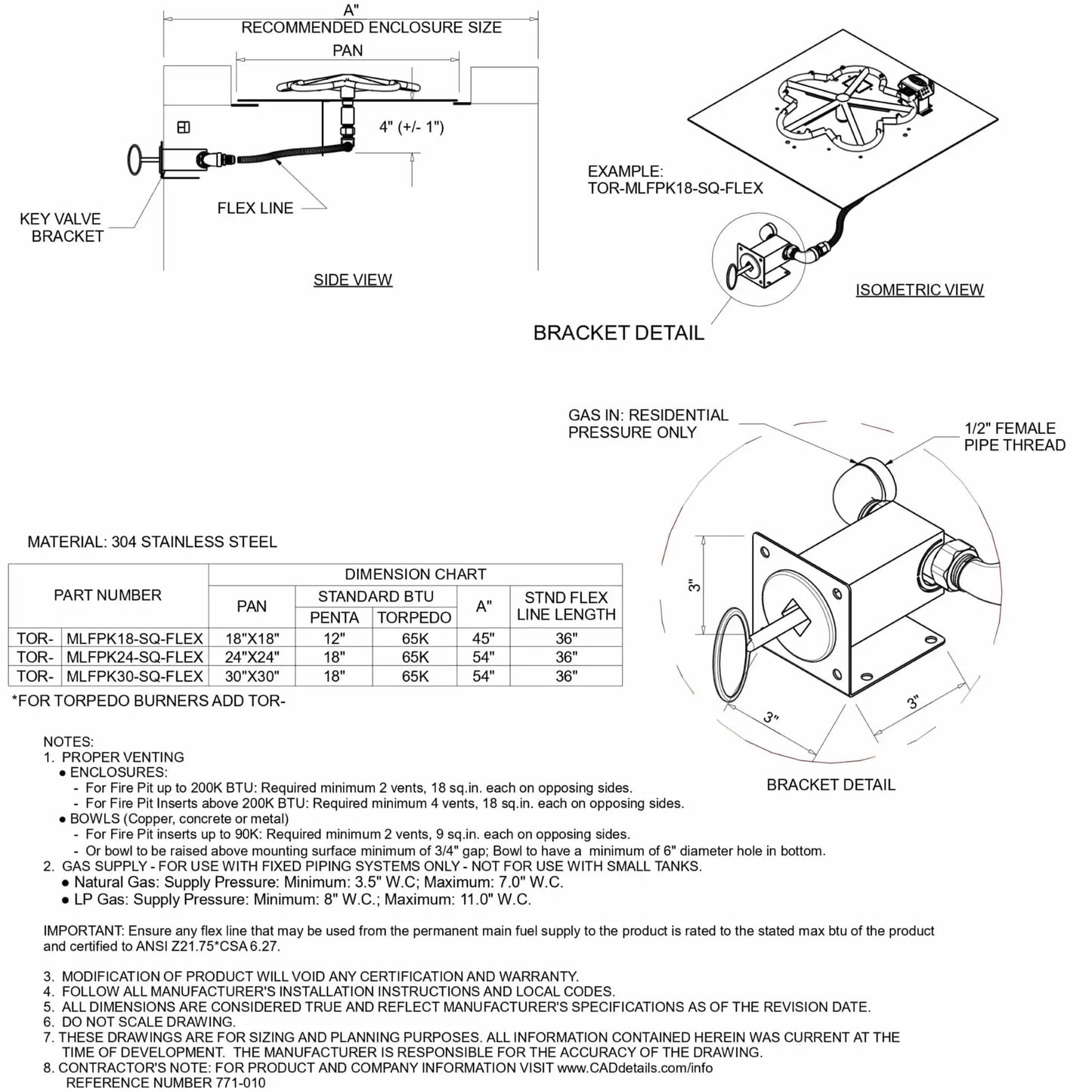

  • Detailed technical specification sheet for the HPC Fire Inspired Hearth Products Controls Square Flat Pan Match Lit CSA MLFPK FLEX system, showing side view diagrams, isometric burner layout, and bracket detail. The sheet highlights enclosure sizing, flex line connection, key valve bracket, gas inlet specs, and dimension charts with BTU ratings, providing a clear installation and planning reference for square fire pit burner setups.

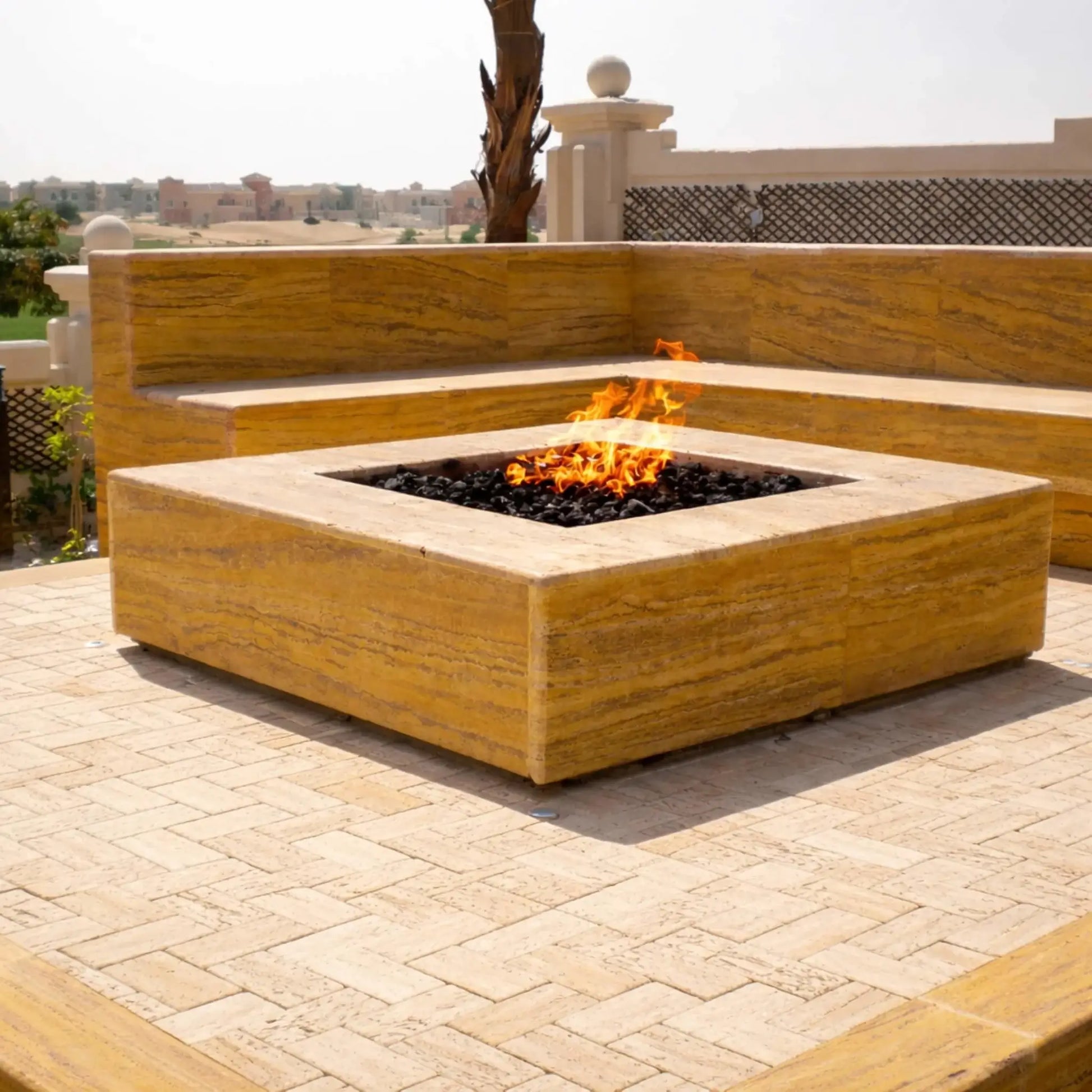

  • A sleek, modern square fire pit constructed with smooth tan stone, showcasing the HPC Fire Hearth Products Controls Square Fire Pit Burner Flat Pan Match Lit CSA MLFPK FLEX burner. Black fire glass enhances the flame contrast, set within a contemporary outdoor lounge space with built-in bench seating and desert-style surroundings.

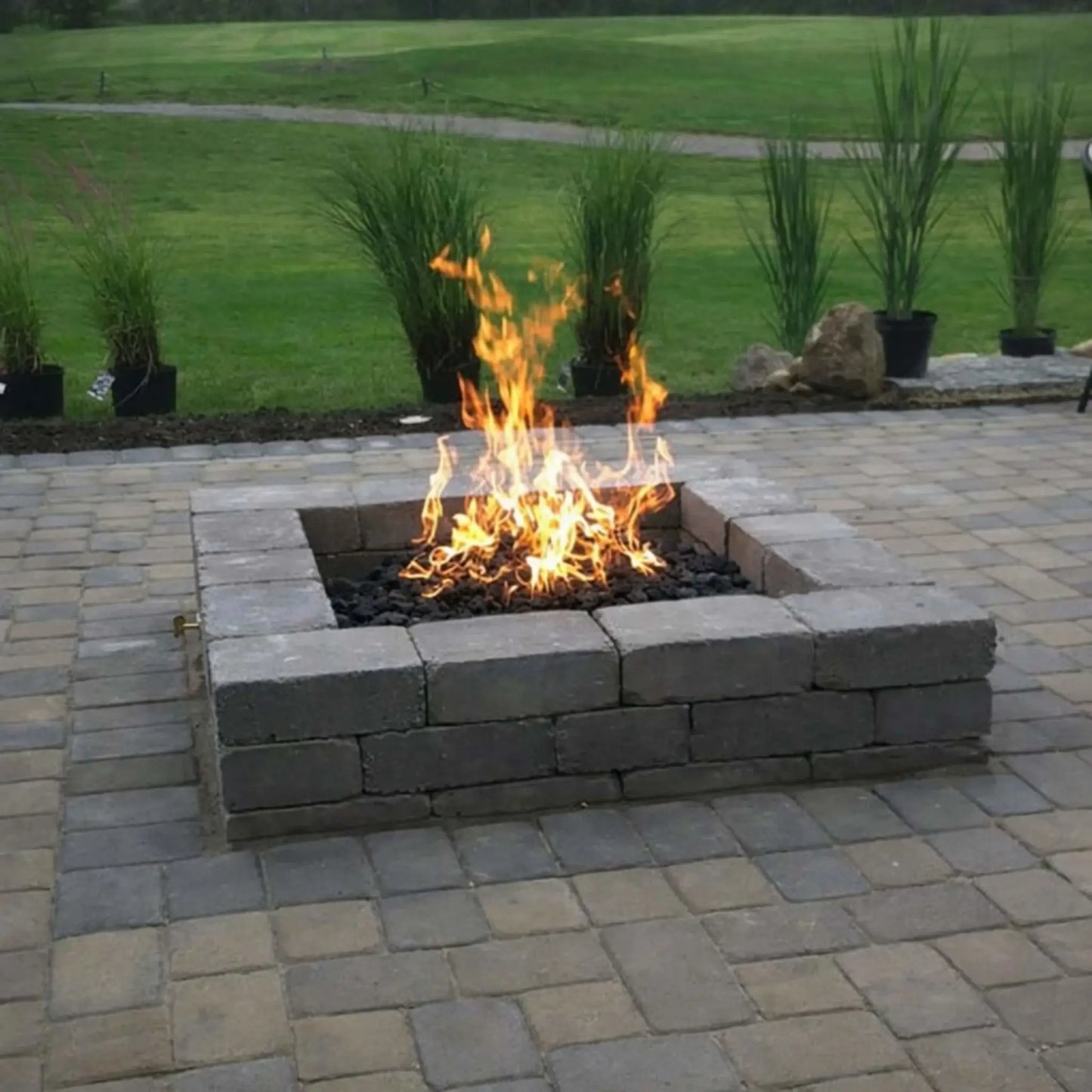

  • A compact square block fire pit built with gray concrete pavers, featuring the HPC Fire Hearth Products Controls Square Fire Pit Burner Flat Pan Match Lit CSA MLFPK FLEX system. Flames rise over dark media, surrounded by a simple patio layout with neatly arranged landscaping and ornamental grasses in the background.
  • Close-up of a brass universal gas orifice fitting with clearly labeled NG and LP directions, designed for controlling gas flow in fire pit burners. The precision-machined component features threaded connections for easy installation and conversion between natural gas and propane systems.
1 7

Square CSA 18" - 30" Flat Fire Pit Burner Kit - MLFPK Match Lit Ignition by HPC Fire

Square CSA 18" - 30" Flat Fire Pit Burner Kit - MLFPK Match Lit Ignition by HPC Fire

gold proud authorized dealer badge

Ships in: 7-10 Business Days (Special Order)

MLFPK18SQ-FLEX-NG

Fuel Type
Size
Burner Type
$605.15 USD
$637.00 USD $605.15 USD
Sale Sold out
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

What's Included

Fire Pit Insert (Assembled)

  • Burner
  • Flat Pan
  • 1/2" Straight, 1/4 Turn Key Valve and key, with mounting bracket, (excess flow valve
  • 36" Whisper Flex Gas Line

*Additional Flex Line Needed (Sold Separately) to connect from Control Box to Gas line

Specifications

Length:

  • 14" ID
  • 18" ID
  • 24" ID

Width:

  • 14" ID
  • 18" ID
  • 24" ID

Height: 4.5"

Weight: 14lbs - 35lbs

Material/Finish: Stainless Steel

Fuel Type: Natural Gas or Propane Gas

Heat Output (BTUs): 65K BTUs

Ignition Type: Match Lit Ignition

Certification: CSA Certification

Warranty: Limited Warranty

  • Stainless Steel Fire Pit and Outdoor Fireplace Burners - Lifetime Warranty
  • Electronics, Gas Valve: Commercial - 1 year; Residential - 3 year.
  • Pilot Assembly: Commercial - 1 year; Residential - 2 year.
  • Stainless Steel Pan, Valve Box: Commercial - 1 year; Residential - 5 years

Assembly: Some Assembly Required

Documents & Downloads

Shipping & Returns

Shipping: Depending on Size

  • This Product Ships Small Parcel (Ground). For more details, please see our full shipping policy.

or

  • This Product Ships LTL (Freight) and includes *Free Curbside Delivery For more details, please see our full shipping policy.

Returns & Exchanges:

  • This product is eligible for returns within 30 days of delivery minus 20% Re-Stocking Fee & any applicable Shipping cost. For more details, please see our full return policy.

Disclaimers

Important Safety Notice:

  • This product includes chemicals recognized by the State of California as potentially causing cancer, birth defects, or other reproductive harm. Please handle with care and adhere to all safety instructions outlined in the product manual. For detailed information about Proposition 65 and its implications, please visit the official CA Prop 65 Warning website.

Elevate your outdoor gatherings with the Square CSA Flat Fire Pit Burner Kit - MLFPK Match Lit Ignition by HPC Fire. Featuring a durable stainless steel burner and pan, this kit delivers consistent flames and withstands outdoor conditions. With minimal components and still holding the CSA Standard for safety, the MLFPK Match Lit Ignition is both simple and economical, thus making it ideal for areas without 110/120V power. This kit supports both natural gas and propane and offers a recessed flat installation. Combining durability, innovation, and style, this fire pit kit creates a warm, inviting ambiance perfect for any outdoor space.

Key Features:

  • Stainless Steel Construction: Weather-resistant and durable for long-lasting performance.
  • Match Lit Operation: Ideal for areas without 110/120V power, providing a simple and economical option for operation.
  • CSA Certified: Meets the highest safety and quality standards.
  • Efficient Flame Control: Engineered for smooth, even, and captivating flames.
  • Gas Compatibility: Versatile design supports both natural gas and propane setups.
  • Recessed Installation: Flat design for a seamless result.
    • *Will Require ledge or support of some form.

Perfect for creating a warm and inviting ambiance, the Square CSA Flat Fire Pit Burner Kit - MLFPK Match Lit Ignition by HPC Fire combines elegance, innovation, and safety in one exceptional package. Elevate your outdoor space with this top-tier fire pit kit, designed to bring people together around a mesmerizing flame.
