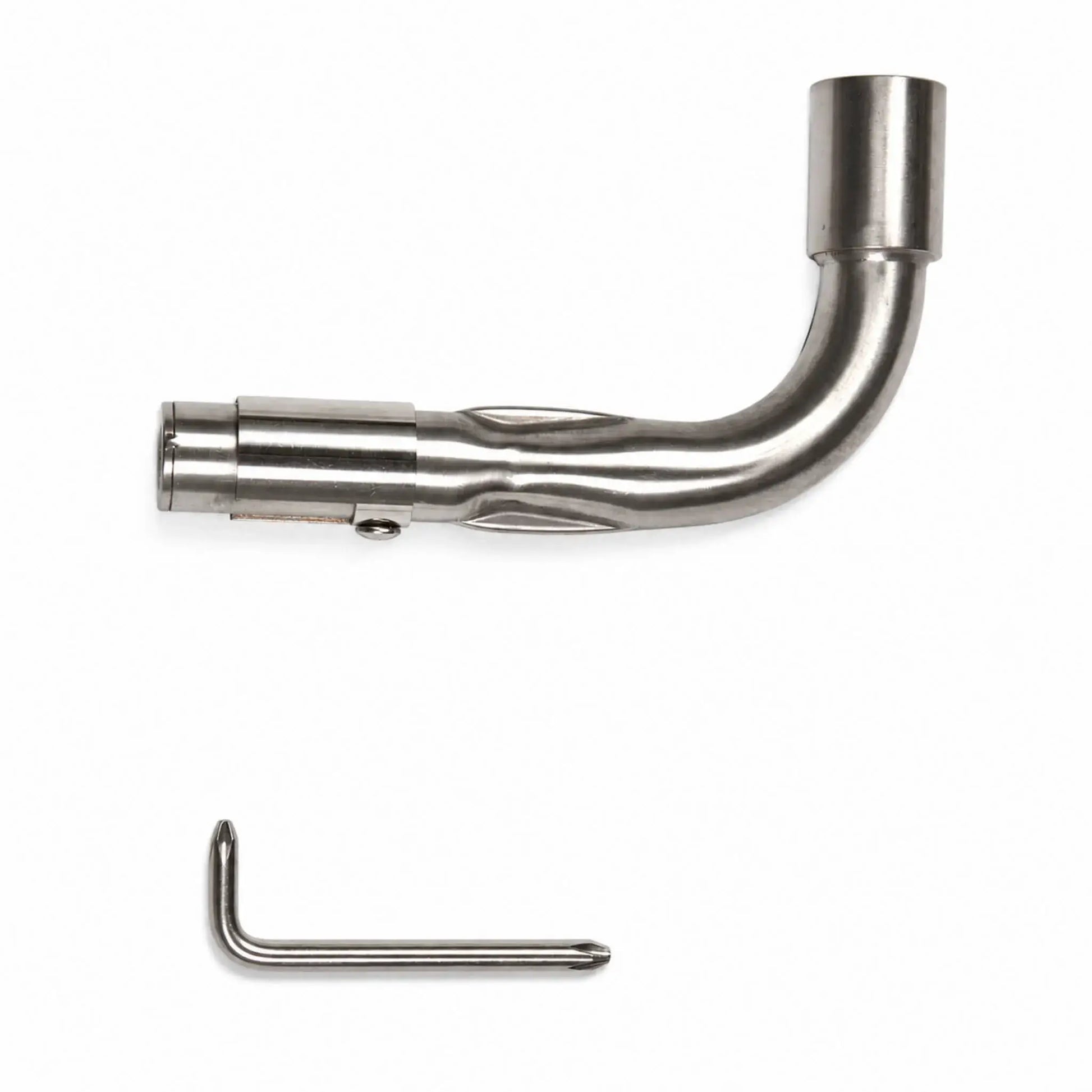

• Flame Havens Refuge Series stainless steel Venturi pipe shown in the natural gas configuration on a white background. The L-shaped fire pit component features a curved burner connection, cylindrical openings, and an adjustable air-mixing sleeve covering the intake screen. An L-shaped adjustment tool is displayed below the pipe.

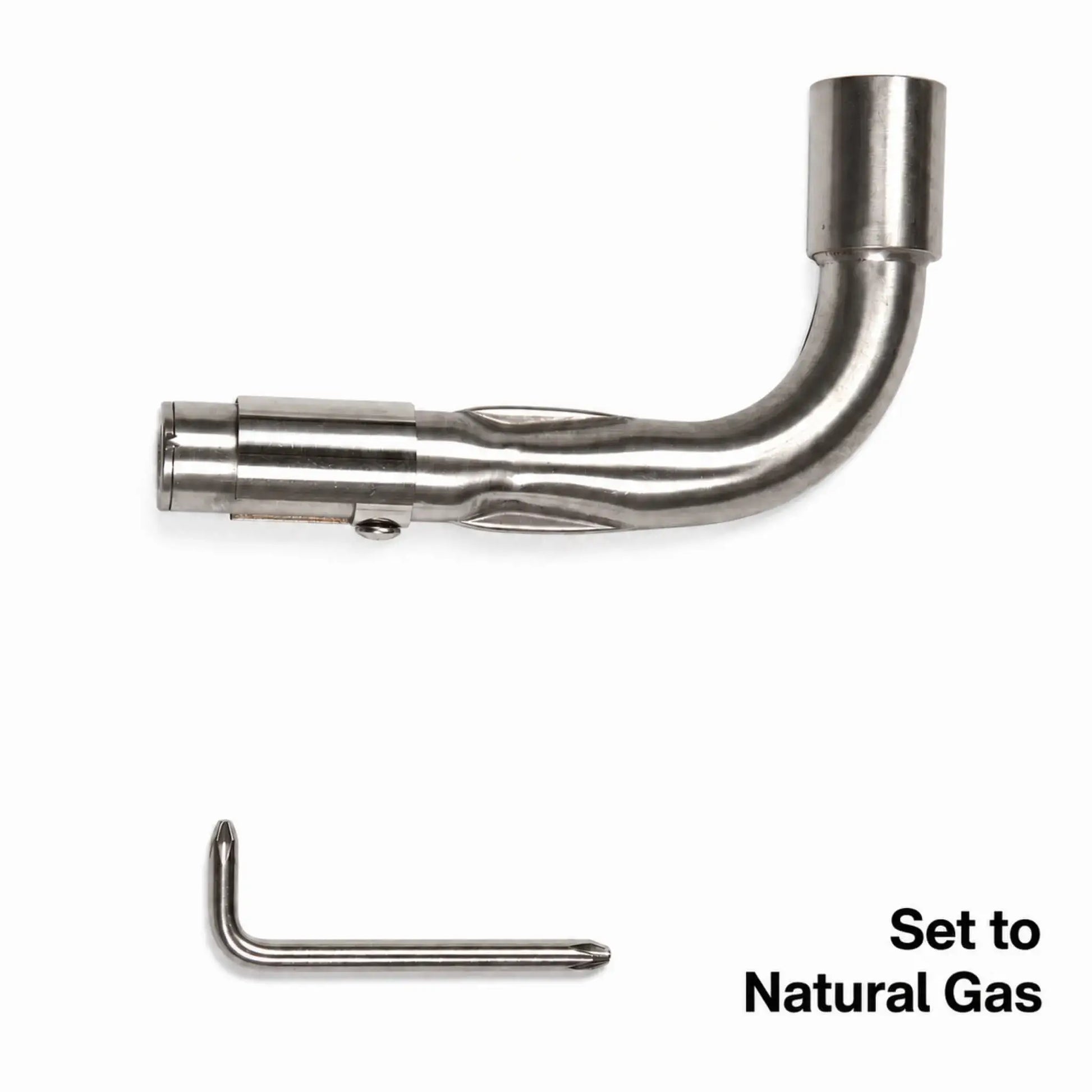

  • Flame Havens Refuge Series propane and natural gas Venturi pipe shown in the natural gas position. The stainless steel L-shaped pipe has a curved burner connection and an adjustable sleeve covering the air intake screen. An L-shaped adjustment tool appears below, with bold text reading “Set to Natural Gas” in the lower-right corner.

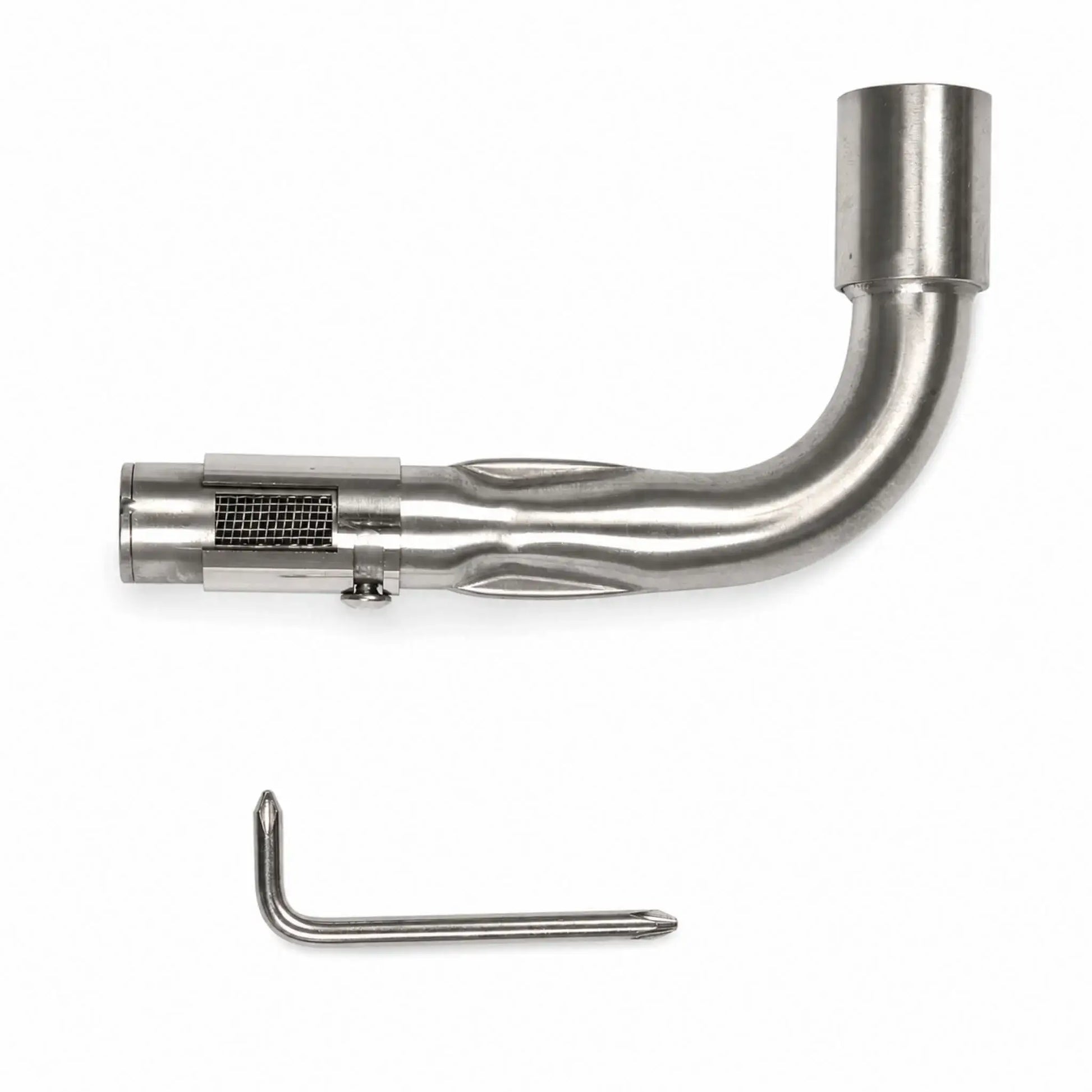

  • Flame Havens Refuge Series stainless steel Venturi pipe shown in the propane gas configuration on a white background. The L-shaped fire pit component has a curved burner connection and an adjustable air-mixing sleeve positioned to expose the mesh intake screen. An L-shaped adjustment tool is displayed beneath the pipe.

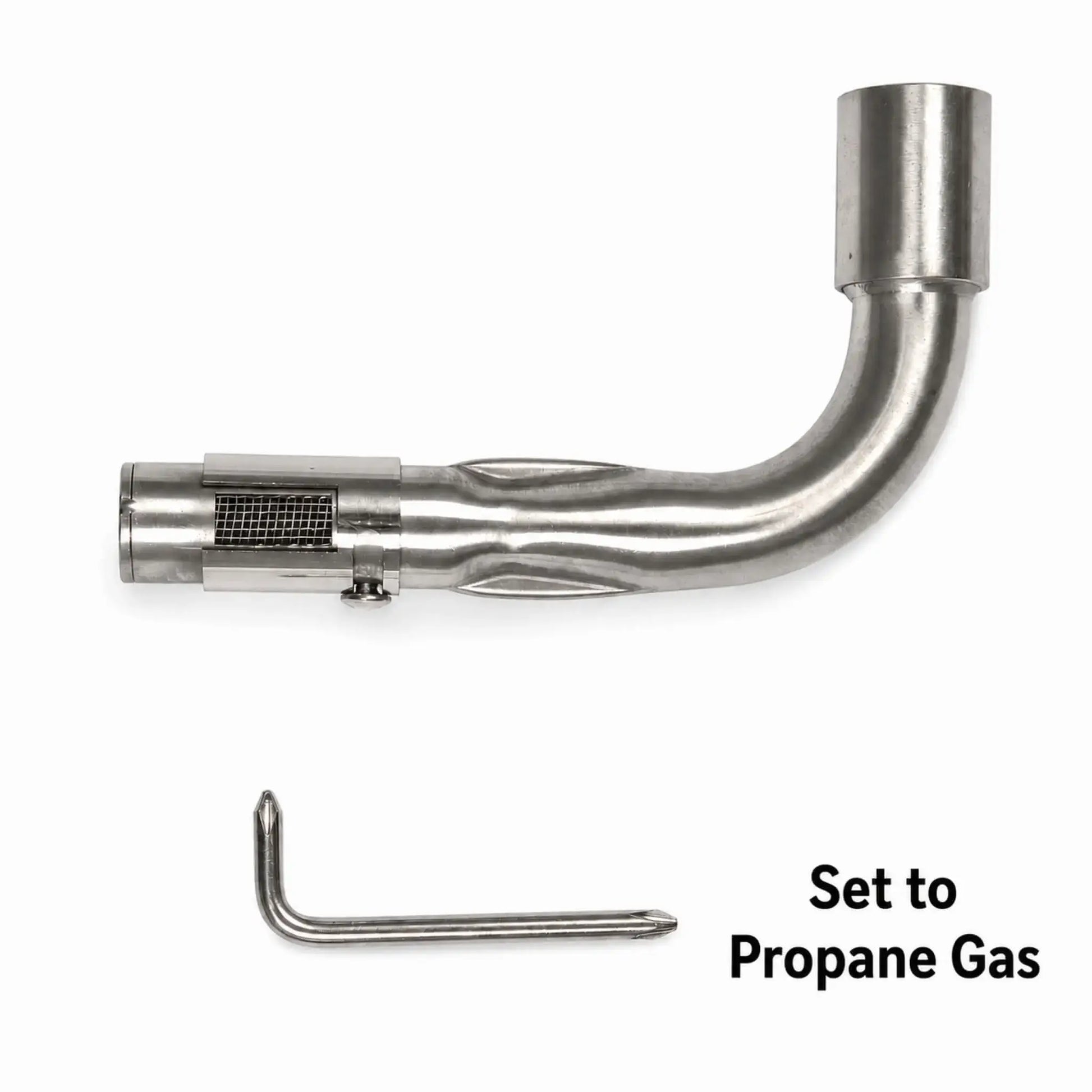

  • Flame Havens Refuge Series propane and natural gas Venturi pipe shown in the propane position. The stainless steel L-shaped pipe features a curved burner connection and an adjustable sleeve exposing the mesh air intake screen. An L-shaped adjustment tool appears below, with bold text reading “Set to Propane Gas” in the lower-right corner.
1 4

Replacement Part: CSA Certified Venturi Pipe (Propane & Natural Gas) by Flame Havens Refuge Series

Replacement Part: CSA Certified Venturi Pipe (Propane & Natural Gas) by Flame Havens Refuge Series

  • Gold Premium Craftsmanship icon featuring a crossed hammer and screwdriver with a polished sparkle above them. The thick, clean linework symbolizes skilled workmanship, careful construction, attention to detail, and professionally made products.Premium Craftsmanship
  • Gold Warranty Included icon designed as a scalloped award ribbon with a prominent check mark in the center. The thick outlined badge represents dependable warranty coverage, verified product protection, and added peace of mind for customers.Warranty Included
  • Gold Certified Performance icon featuring a gauge-style dial and check mark inside a scalloped certification seal. The thick outlined design communicates tested performance, dependable operation, quality assurance, and verified product standards.Certified Performance

Ships in: (Pre-Order) Ships Early September

FHRVTP

Wide concrete samples banner displaying textured color swatches in charcoal, medium gray, and ivory. The promotional graphic reads “Need a Sample?” and invites customers to order concrete samples before buying, with a gold “Order Concrete Samples” button.
$28.74 USD
$28.74 USD
Sale Sold out
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

What's Included

Venturi Pipe (Propane & Natural Gas)

Specifications

Length: 5.5"

Width: 3.25"

Height: 1"

Weight: .5 lbs

Material/Finish: Stainless Steel

Fuel Type: Natural Gas or Propane Gas

Heat Output (BTUs): 65K BTUs w/Correct Orifice

Assembly: Assembly Required

Documents & Downloads

  • NEED OWNERS MANUAL

Shipping & Returns

Shipping:

  • This Product Ships Small Parcel (Ground). For more details, please see our full shipping policy.

Returns & Exchanges:

  • This product is eligible for returns within 30 days of delivery minus 10% - 20% Re-Stocking Fee & any applicable Shipping cost. For more details, please see our full return policy.

Disclaimers

Important Safety Notice:

  • This product includes chemicals recognized by the State of California as potentially causing cancer, birth defects, or other reproductive harm. Please handle with care and adhere to all safety instructions outlined in the product manual. For detailed information about Proposition 65 and its implications, please visit the official CA Prop 65 Warning website.

Color, Finish, & More:

  • Attention! Due to the distinctive characteristics of metal and differences in monitor settings, color representation may vary from what you see on screen.

Maintain peak performance and proper combustion with the Flame Havens Refuge Series Venturi Pipe Replacement Part. Engineered for compatibility with CSA Certified Flame Havens fire pits, this precision component plays a critical role in fuel-air mixing and gas flow regulation, ensuring a clean, efficient, and consistent flame.

Essential for Proper Combustion

The venturi pipe is designed to optimize the mixture of gas and air prior to ignition, which is essential for achieving:

    • Stable, well-defined flames
    • Efficient fuel burn
    • Reduced soot and incomplete combustion

For propane systems, the venturi actively mixes air with fuel, while for natural gas, it serves as a precise gas flow guide into the burner.

Dual Fuel Compatibility

This versatile component is compatible with both Propane (LP) and Natural Gas (NG) systems. Featuring an adjustable rotating air sleeve, the venturi pipe can be easily configured to match your fuel type:

    • Propane Mode: Opens air intake for proper fuel-air mixing
    • Natural Gas Mode:  Restricts air intake for controlled gas flow

Designed for Refuge Series Fire Pits

Built specifically as a direct replacement part for CSA Certified Flame Havens Refuge Series Fire Pits, ensuring:

    • Proper fit and alignment

Reliable performance

    • Seamless integration with existing burner systems

Durable Stainless Steel Construction

Crafted from high-quality stainless steel for long-lasting durability:

  • Corrosion-resistant for outdoor environments
  • Heat-resistant under high flame conditions
  • Built to withstand continuous use

What’s Included

Venturi Pipe (Propane & Natural Gas Compatible)

Key Features

  • Dual fuel compatibility: Propane & Natural Gas
  • Adjustable rotating air sleeve for fuel conversion
  • Ensures proper air-to-fuel ratio for clean combustion
  • OEM replacement part for Flame Havens Refuge Series
  • Durable, corrosion-resistant stainless steel construction

Ideal Use Cases

  • Replacing a worn or damaged venturi pipe
  • Restoring optimal flame performance
  • Converting between propane and natural gas configurations

Professional Installation Recommended

For best results and safety compliance, installation should be performed by a qualified technician familiar with gas fire pit systems.

View full details
Signature Series Fire Pit logo featuring a stylized gold flame rising from a shallow fire bowl. Elegant black script spells “Signature,” with widely spaced gold “Series” lettering below and sweeping black and gold circular lines framing the design.

The signature line of Flame Haven products embodies our commitment to refined design, premium craftsmanship, and dependable outdoor performance.

These are made from the most durable, weather-resistant materials and equipped with highly reliable or certified technology. A signature series product contains thoughtfully selected components and is designed to deliver lasting beauty, warmth, and effortless operation. Every detail is intended to provide lasting value and peace of mind — creating an inviting centerpiece customers can confidently enjoy for years to come.

FAQ

Everything You Need to Know

What is GFRC concrete, and will every finish look identical?

GFRC is Glass Fiber Reinforced Concrete, offering strength, reduced weight, and outdoor durability. Because each enclosure is hand-finished, minor variations in color, texture, mottling, pinholes, and surface character are normal.

Can the fire pit remain outdoors year-round?

The GFRC enclosure is designed for outdoor use, but the fire pit should be protected from rain, snow, sprinklers, standing water, and prolonged moisture. The included protective cover should only be installed after the burner and fire glass are completely cool and dry.

Does the fire pit require professional installation?

A licensed or certified gas professional should install or connect the appliance, confirm gas pressure and capacity, perform leak testing, and verify safe operation. This is especially important for natural gas lines and any fuel conversion.

Are the glass wind guard and burner cover included?

They are optional accessories sold separately. Both are model-specific, so customers must select the correct shape and dimensions for their fire pit. The burner cover must always be removed before lighting the appliance.

Does the fire pit require electricity?

No household electrical connection is required. The ignition system is battery-powered and uses a spark igniter with flame-sensing technology. The system generally operates with a replaceable AAA battery.

What surface and clearances are required?

The fire pit must be installed on a stable, level, noncombustible surface such as concrete, masonry, brick, or stone. Adequate clearance must be maintained from walls, ceilings, furniture, vegetation, and combustible materials. Customers should follow the manual for their specific model and all applicable local codes.
