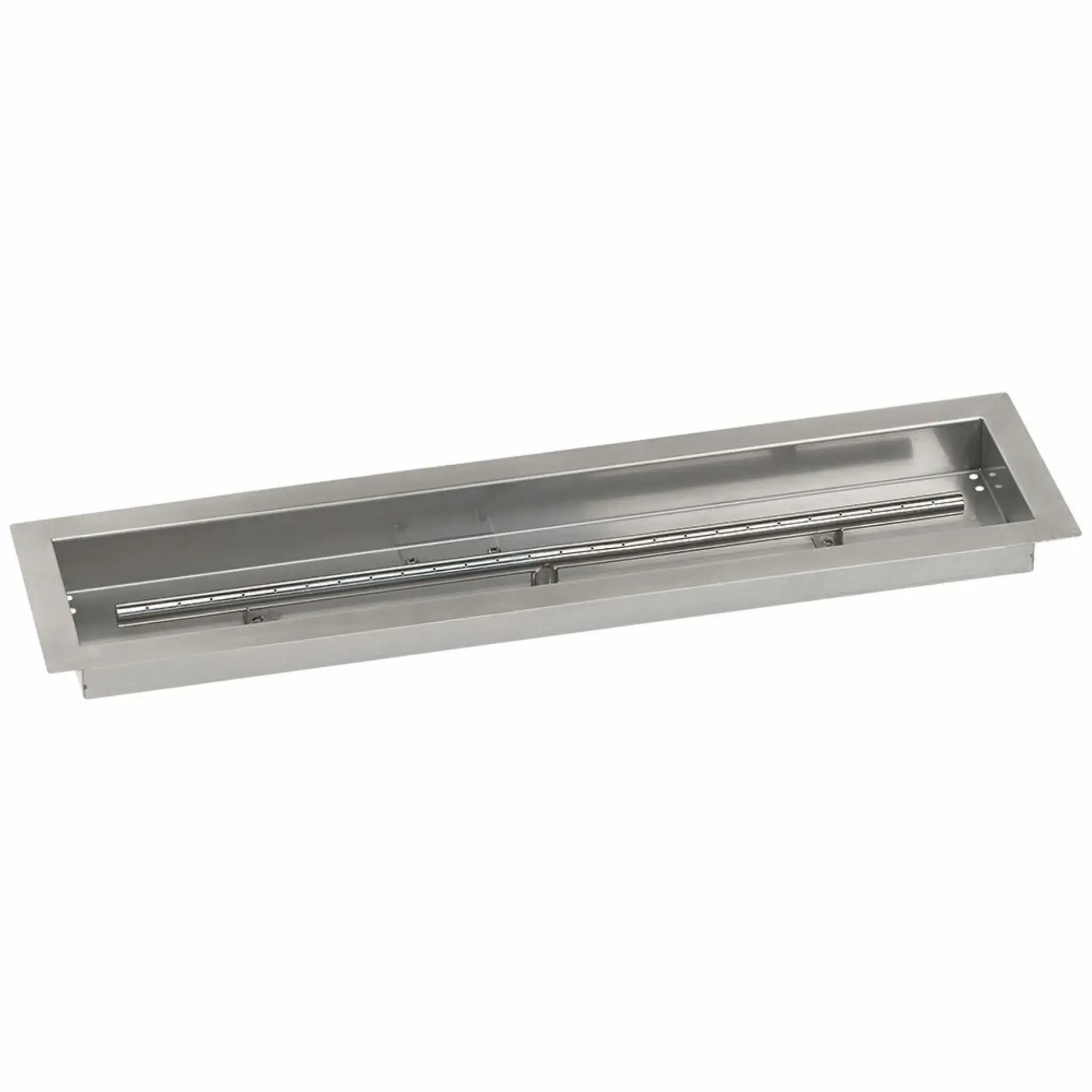

• 30x6 inch linear drop-in burner pan from American Fire Products in stainless steel, featuring a sleek rectangular fire pan and integrated stainless burner tube for compact outdoor gas fire pit designs.

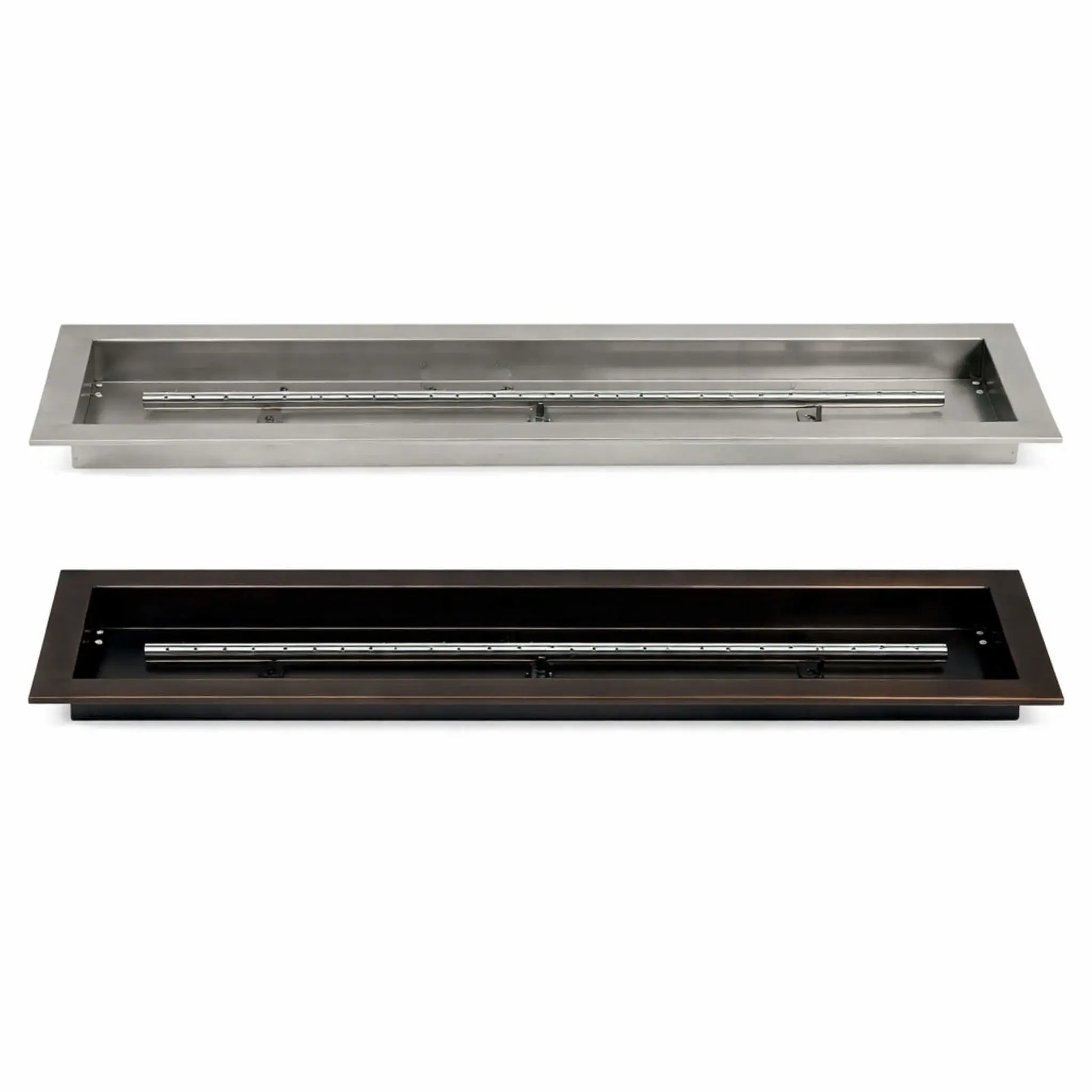

  • Side-by-side comparison of American Fire Products linear drop-in burner pans in stainless steel and oil rubbed bronze finishes, showcasing the rectangular pan construction and centered burner tube designed for custom outdoor fire pits.
  • Backyard fire pit built with natural stone walls and a stainless steel linear burner pan, producing a clean ribbon of flame set against a landscaped garden and outdoor seating area.

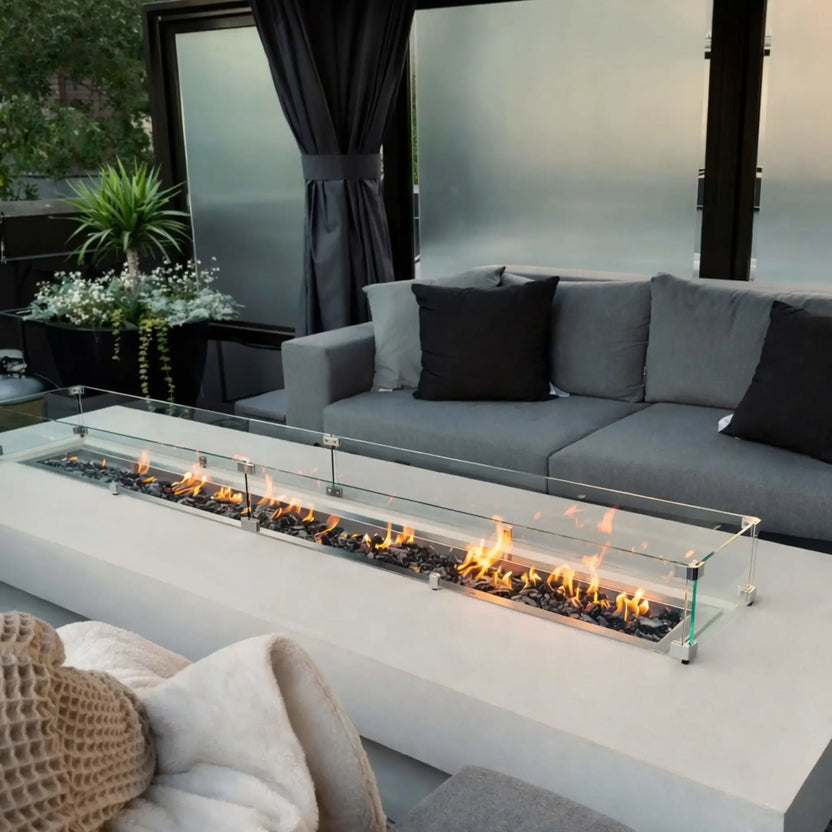

  • Contemporary backyard lounge with a sleek rectangular fire pit protected by a clear glass wind guard, bright flames dancing over dark fire glass, and deep gray outdoor couches framed by privacy panels and greenery.

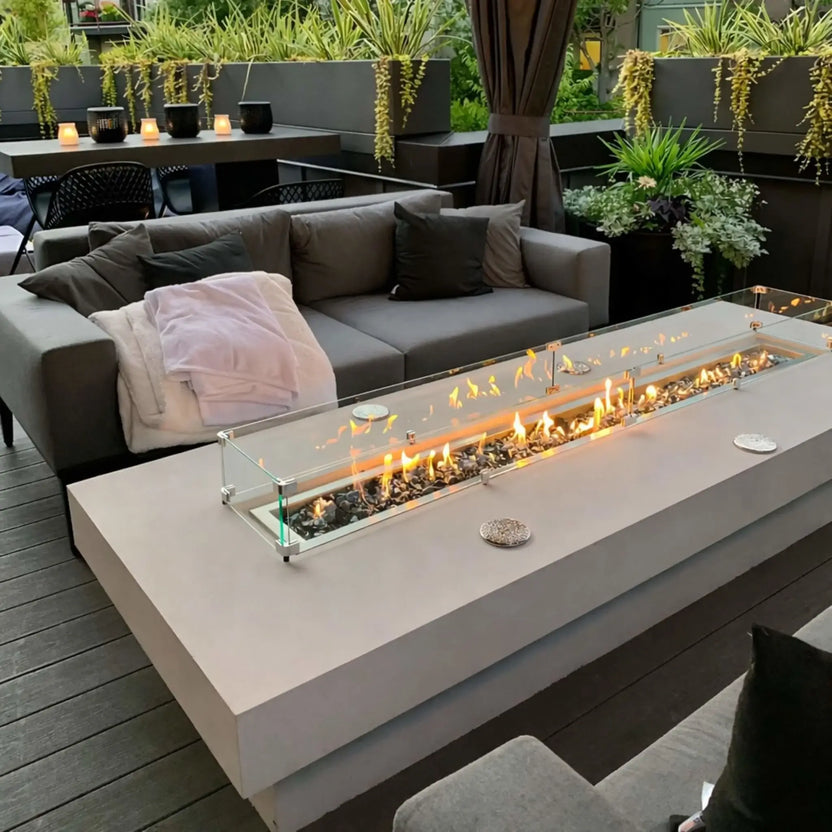

  • Modern outdoor patio seating area featuring a long linear fire pit table with a tempered glass wind guard, glowing flames over fire glass, and gray cushioned sofas surrounded by raised planters and soft ambient lighting.

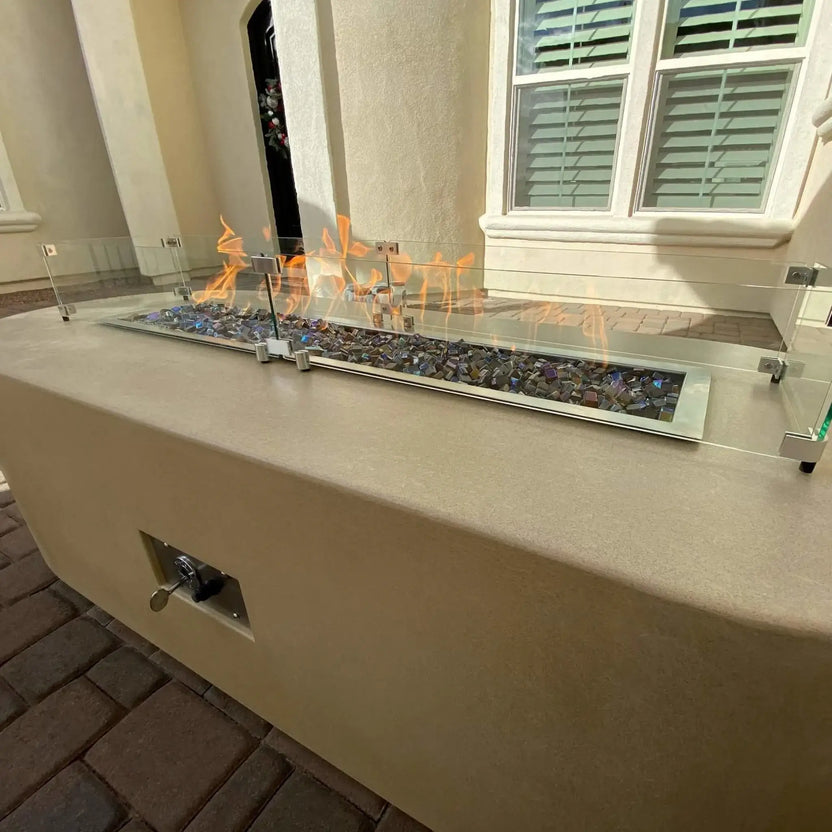

  • Linear outdoor gas fire pit built into a stucco fire table, featuring multicolor fire glass, visible flames, and a surrounding clear glass wind guard, installed in a residential courtyard with paver flooring.

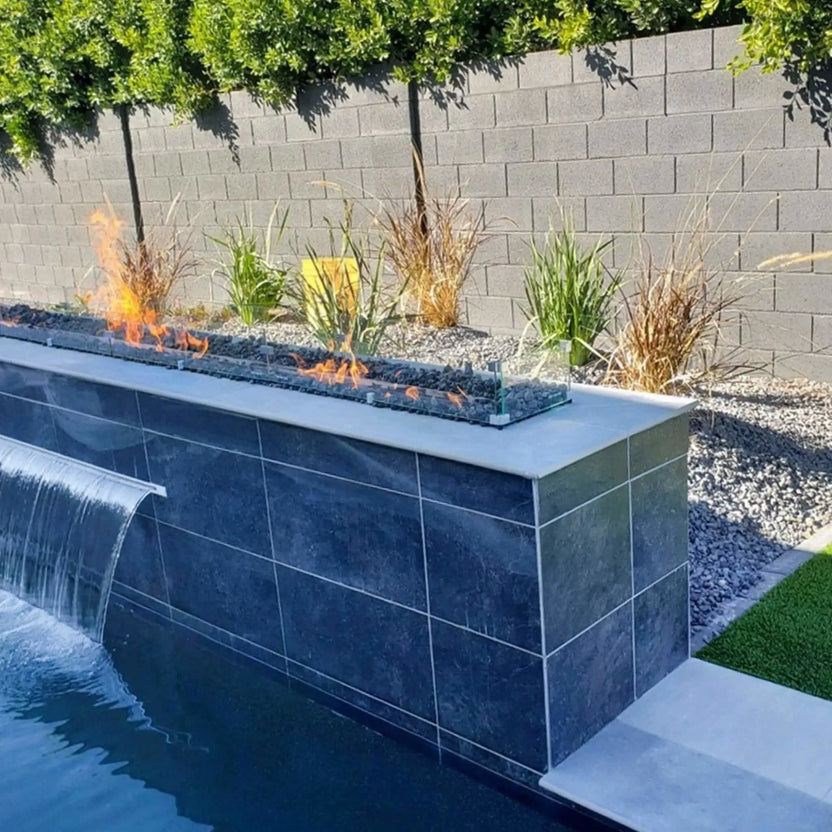

  • Contemporary poolside fire feature with a long linear gas fire pit mounted on a raised tiled wall, showcasing dancing flames over fire media and enclosed by a tempered glass wind guard for wind protection and safety.
  • Contemporary outdoor fire feature featuring a stainless steel linear burner pan filled with smooth fire stones, installed in a concrete fire pit table on a deck overlooking a wooded landscape at dusk.

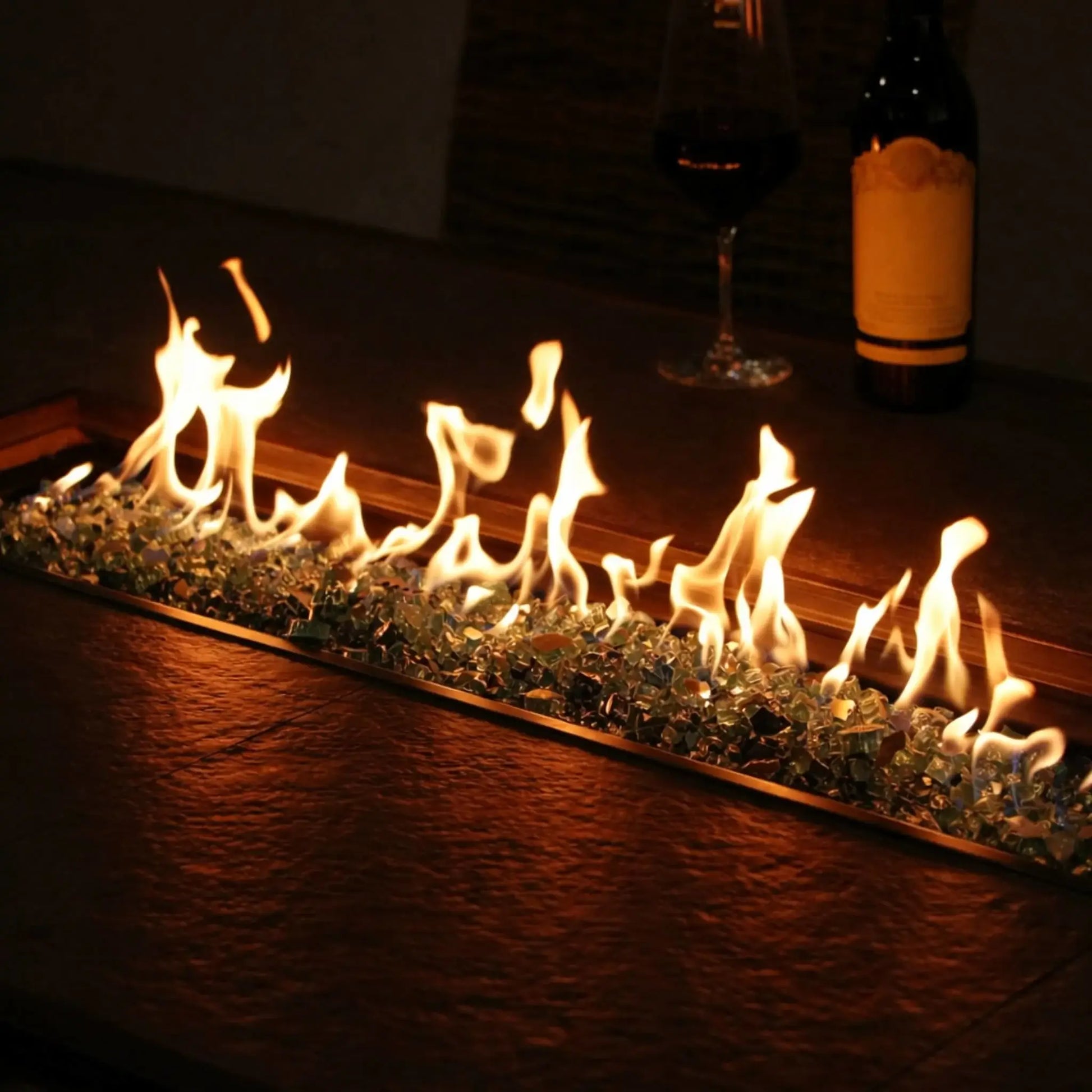

  • Indoor or covered outdoor linear fire feature with a stainless steel burner pan filled with fire glass, creating a continuous flame display along a wood surface beside wine glasses for an upscale, modern ambiance.

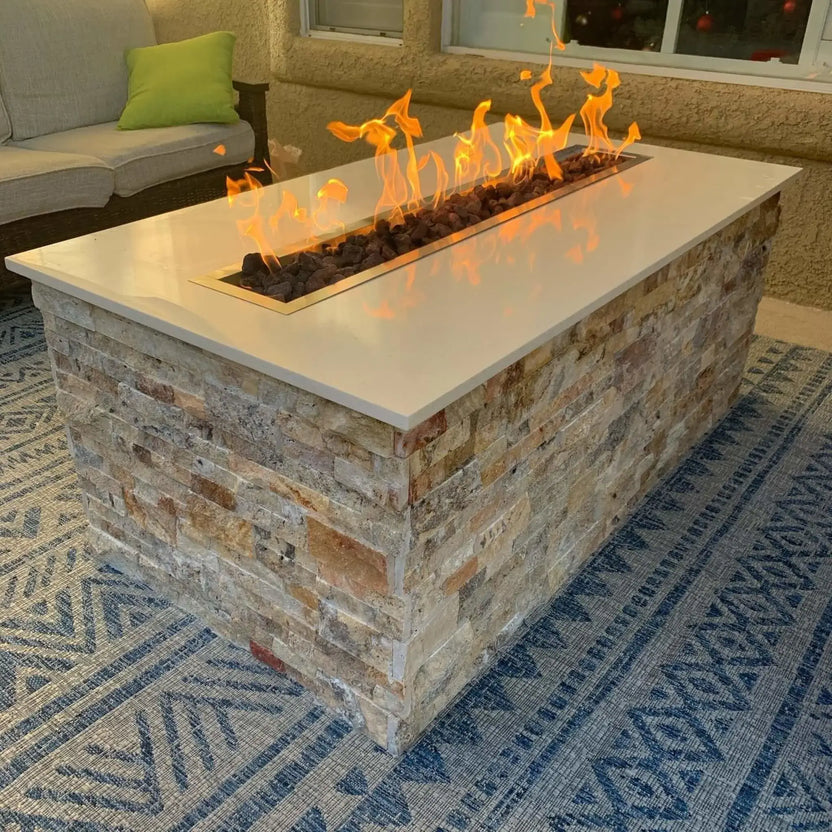

  • Rectangular outdoor fire pit table featuring a stainless steel linear burner pan installed flush into a smooth stone countertop, producing tall, even flames over lava rock in a modern patio seating area.

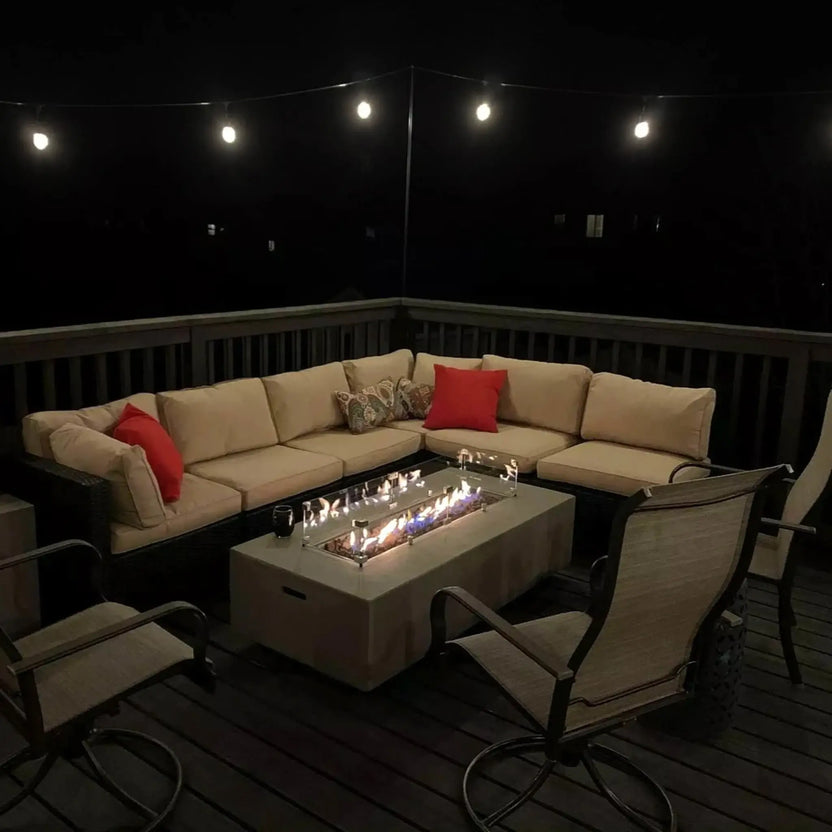

  • Evening patio setting with a linear fire pit centerpiece, protected by a glass wind guard and glowing fire glass, surrounded by cushioned outdoor seating and string lights on a wooden deck.

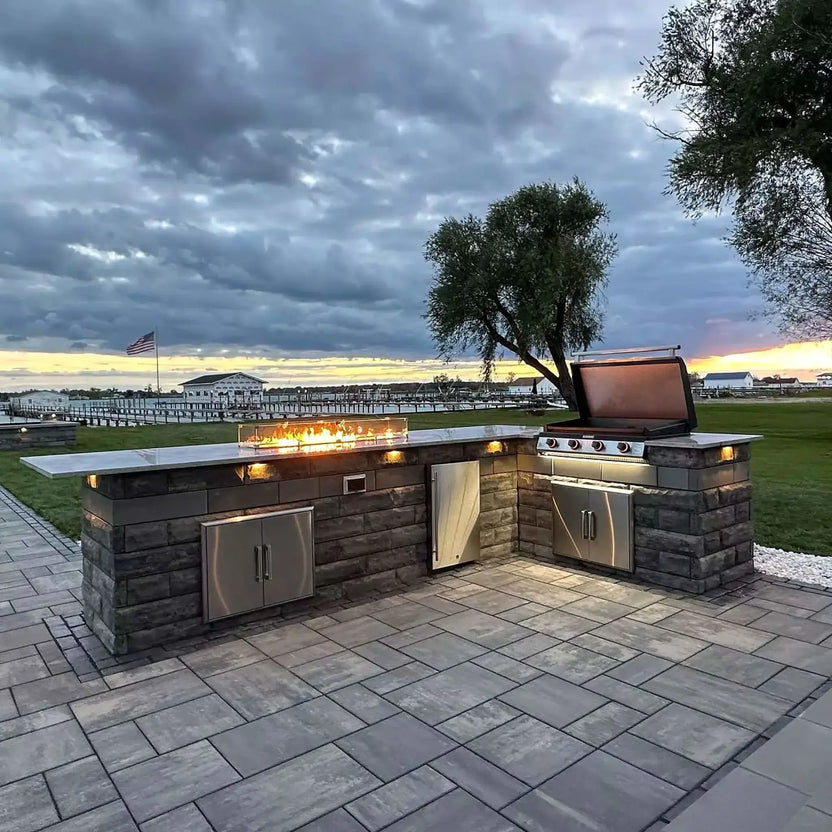

  • Outdoor kitchen island with a built-in linear fire feature, topped with a glass wind guard and decorative fire glass, set against a waterfront backdrop at sunset.

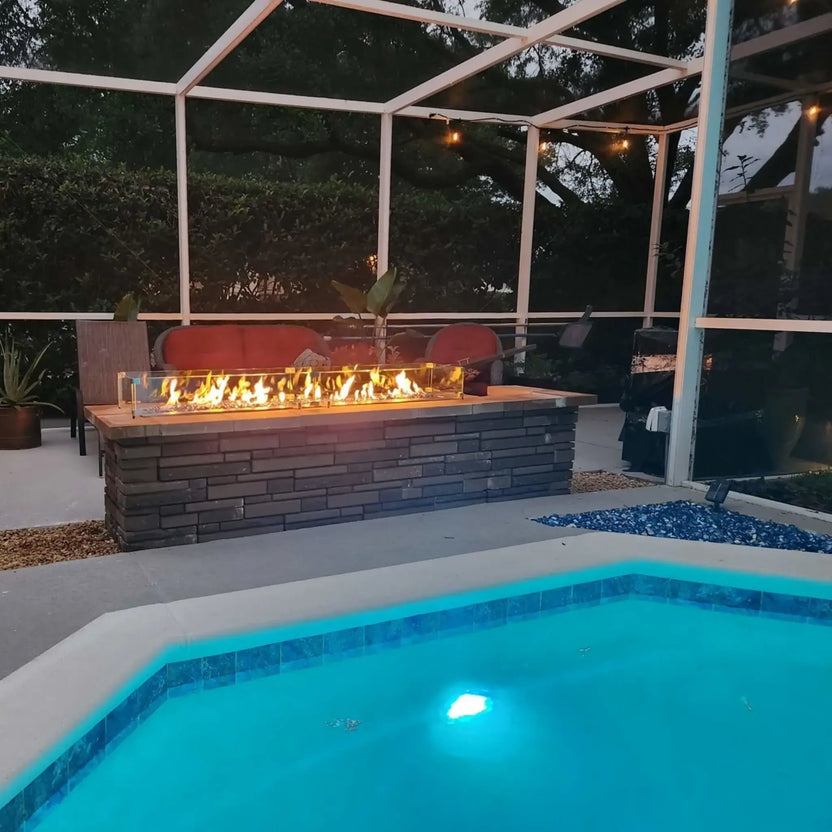

  • Evening poolside setting featuring a linear rectangular fire pit with active flames behind a tempered glass wind guard, installed in a stacked stone fire pit base beneath a screened patio enclosure.
  • Custom-built outdoor fire pit table with a stainless steel linear burner pan centered in a stone enclosure, surrounded by patio furniture and decorative pavers in a landscaped backyard setting.
  • Long rectangular fire pit with clear tempered glass wind guard and steady flames, set into a stone countertop with a stainless steel burner pan and white fire glass on a covered patio.

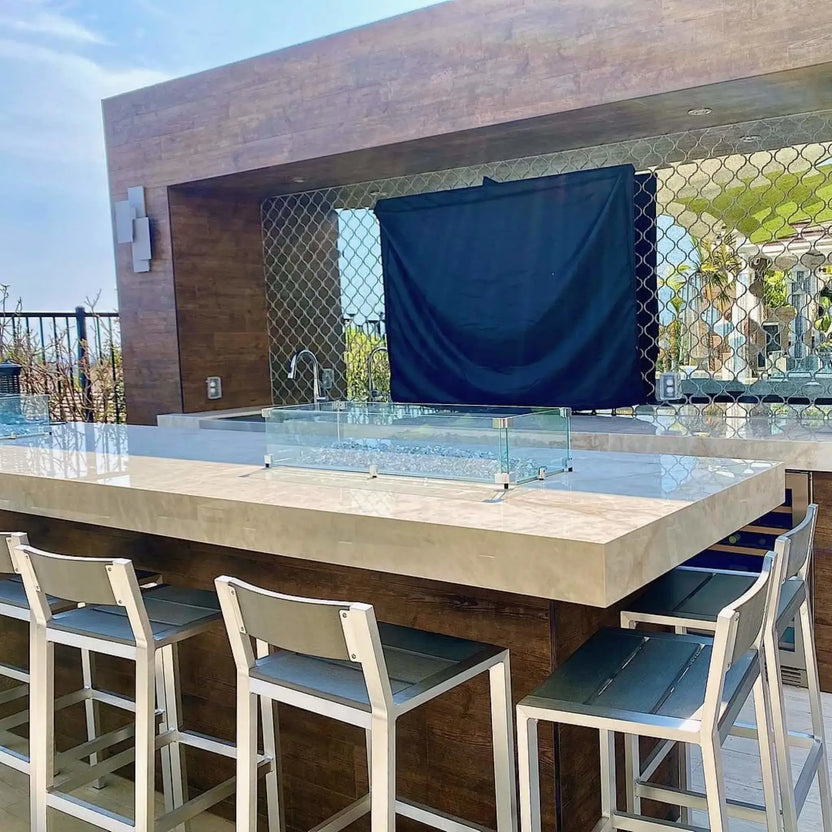

  • Modern outdoor kitchen bar with a linear rectangular fire pit featuring a clear tempered glass wind guard, set into a light stone countertop with bar seating, creating a sleek and contemporary outdoor entertaining space.

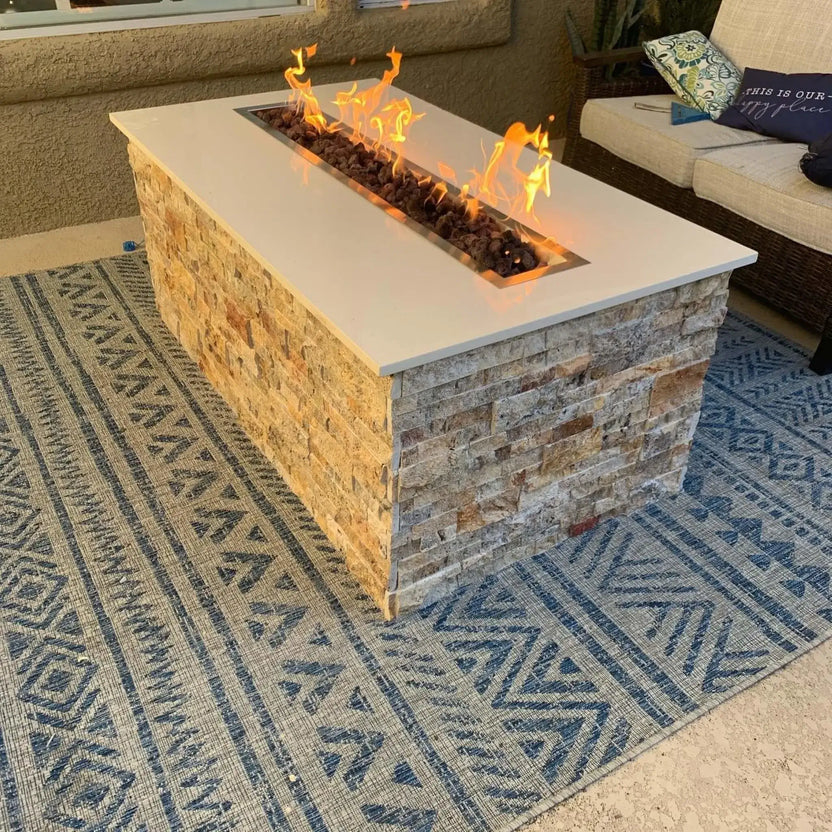

  • Modern outdoor fire pit with a long stainless steel linear burner pan set into a stacked stone base, showcasing vibrant flames running the full length of the fire feature on a covered patio.

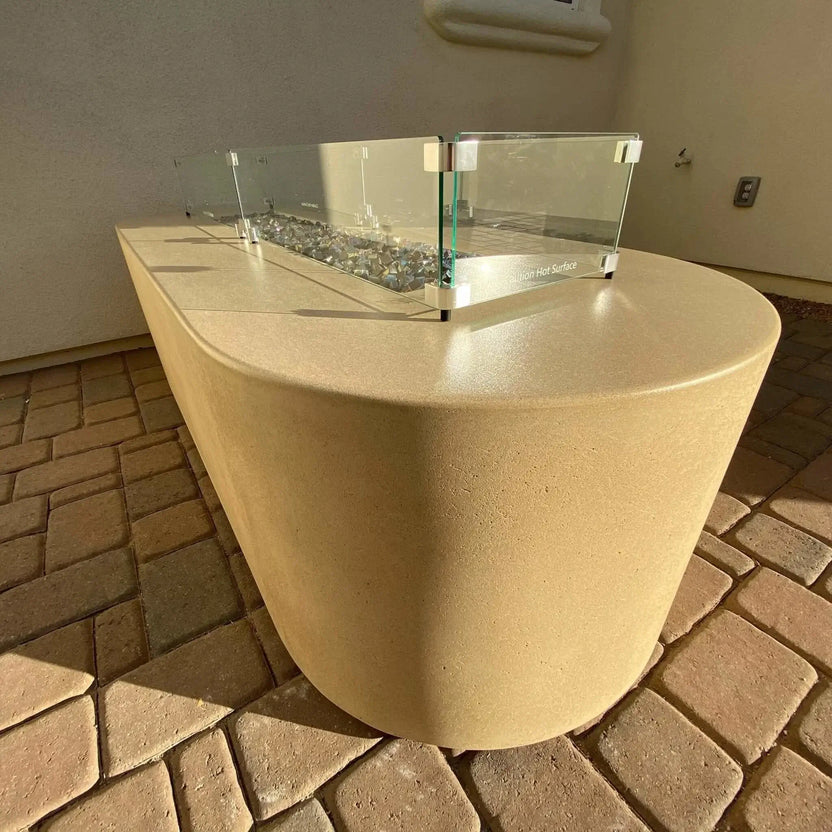

  • Side-angle view of a linear fire pit featuring a tempered glass wind guard mounted on a curved concrete fire table, showcasing reflective fire glass in a sunlit outdoor patio.

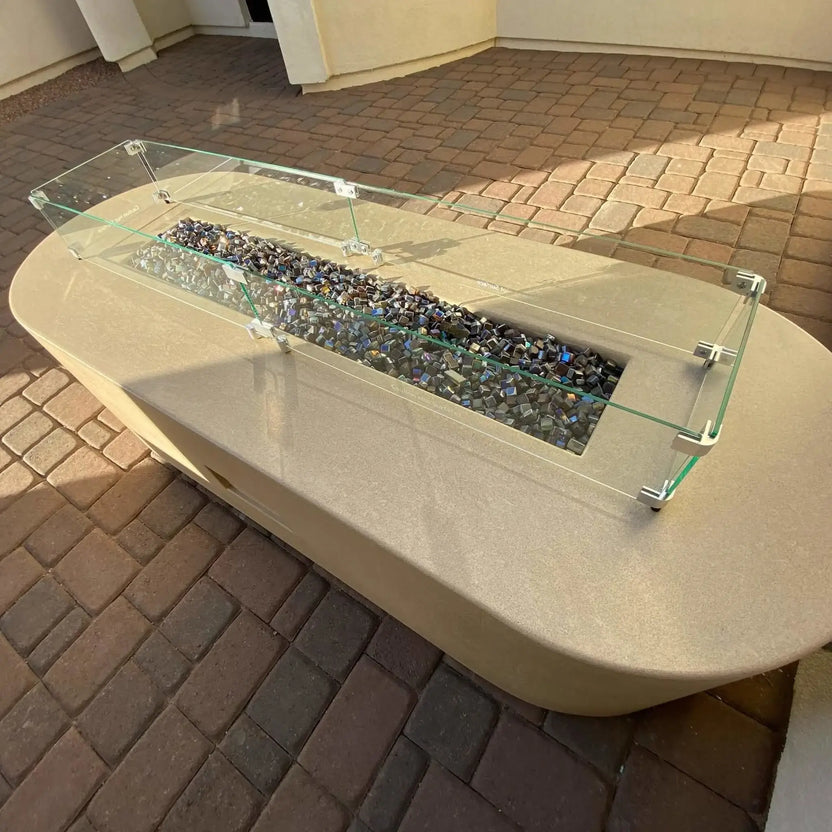

  • Outdoor linear fire pit table with a clear tempered glass wind guard installed, filled with reflective fire glass and set into a smooth concrete-style patio table on paver flooring.

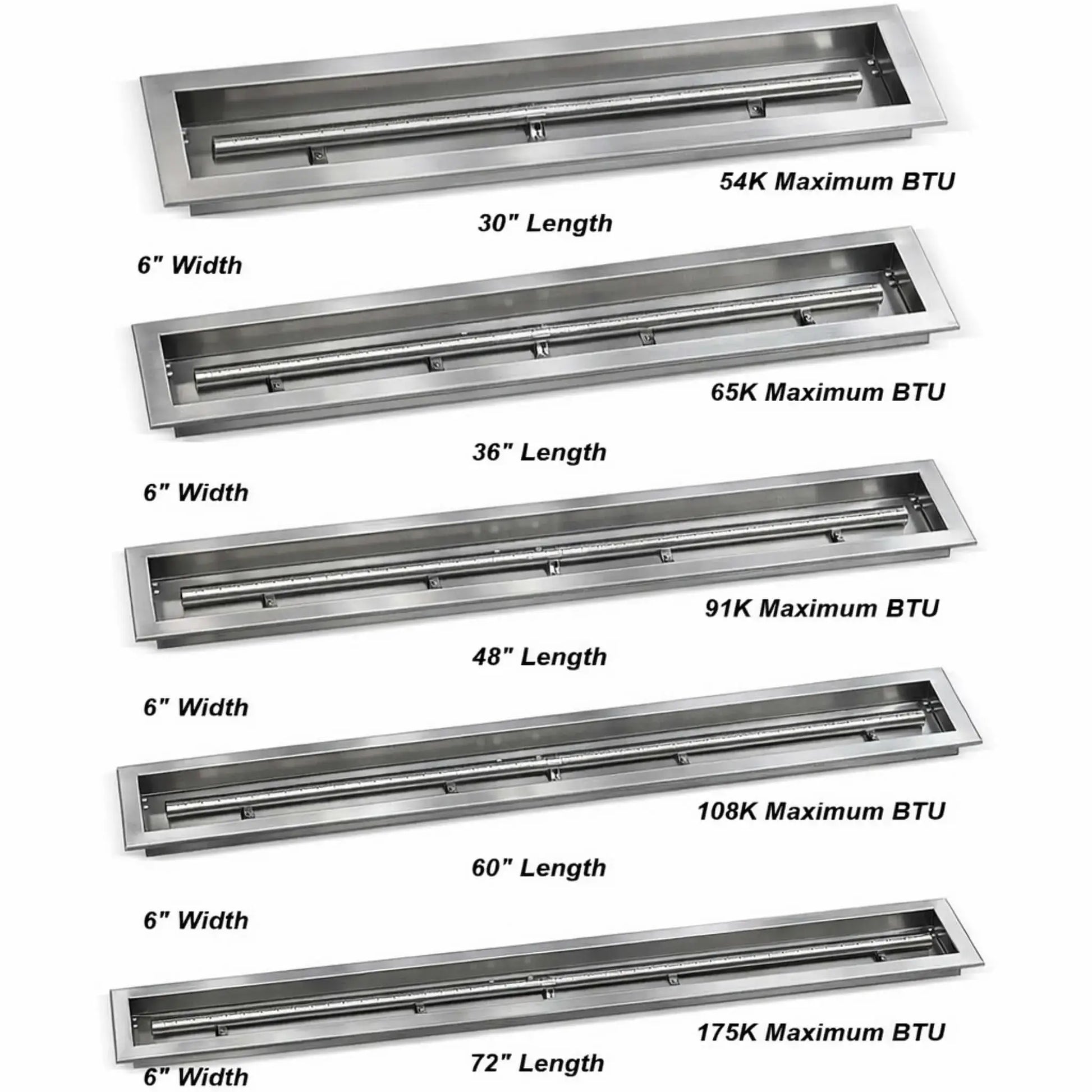

  • Stainless steel linear drop-in burner pans from American Fire Products with clearly labeled sizes and BTU outputs, displaying available lengths from 30 to 72 inches and a 6-inch width for high-performance outdoor gas fire features.

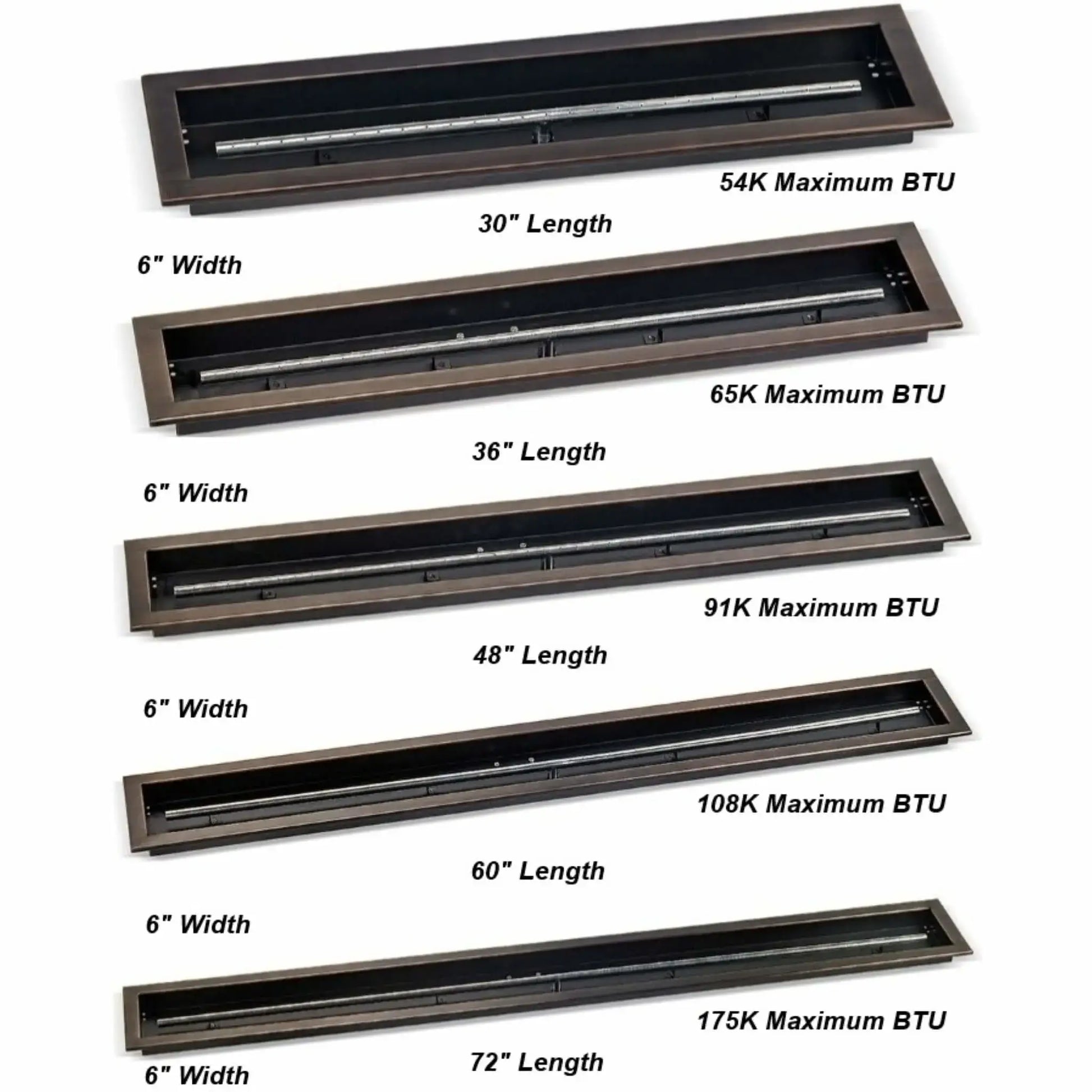

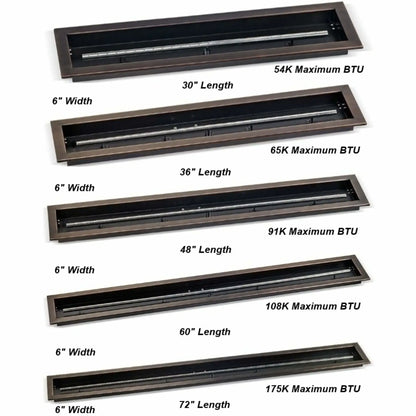

  • Oil rubbed bronze linear drop-in burner pans by American Fire Products displayed with labeled dimensions and maximum BTU ratings, showing available lengths from 30 to 72 inches with a consistent 6-inch width for outdoor gas fire pit installations.

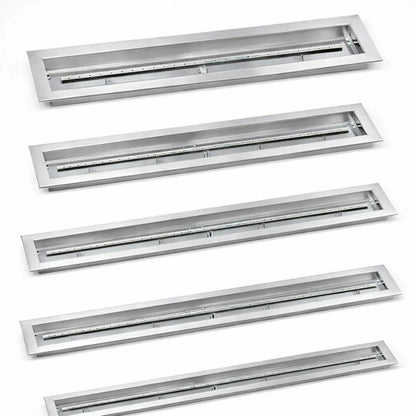

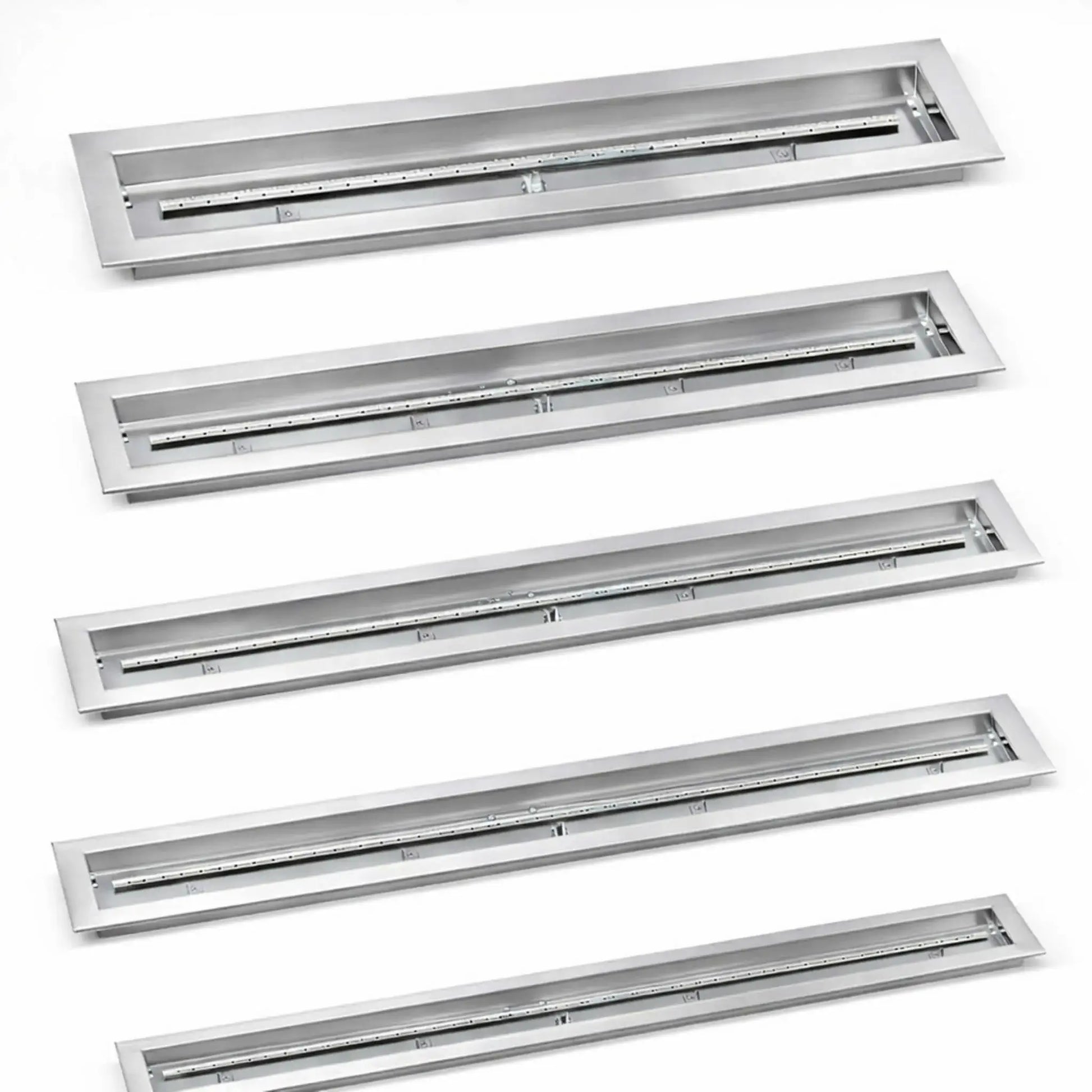

  • American Fire Products linear stainless steel drop-in burner pans shown in multiple lengths, featuring a brushed stainless finish, rectangular fire pan design, and integrated gas burner tube for modern outdoor fire pits and fire tables.

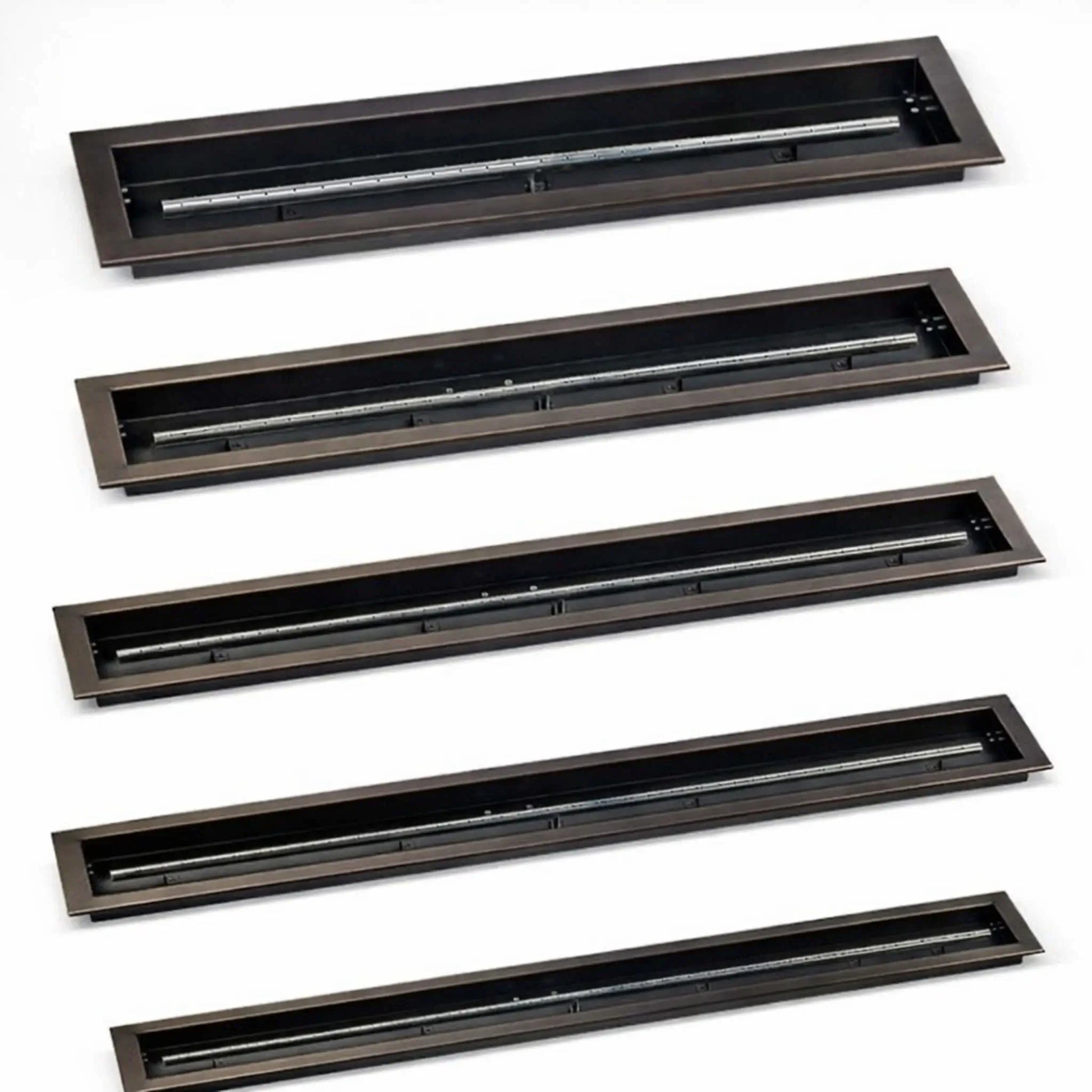

  • Linear drop-in gas burner pan by American Fire Products in an oil rubbed bronze finish, featuring a long rectangular fire pan with a centered stainless steel burner tube, shown in multiple size options for outdoor fire pits and custom fire features.

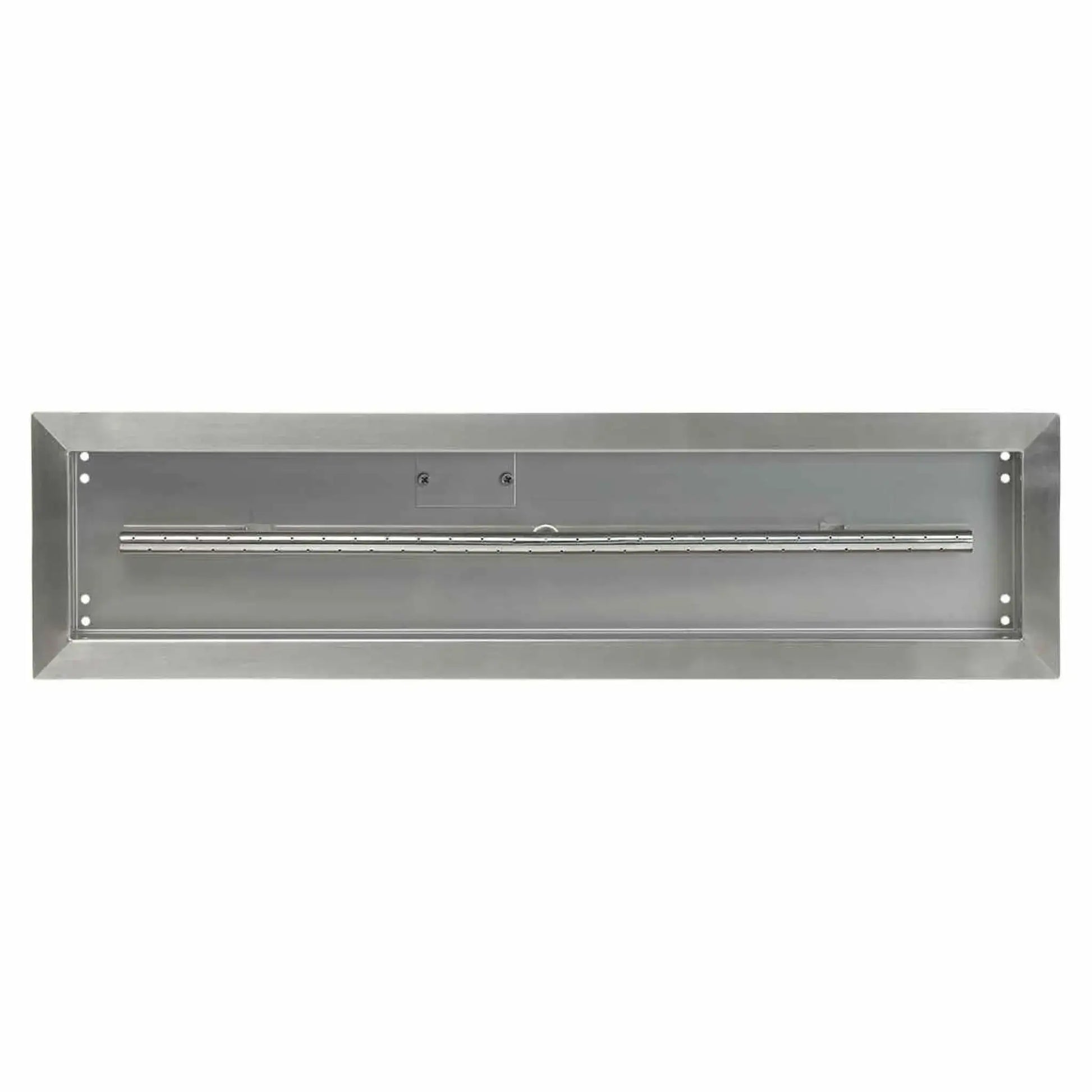

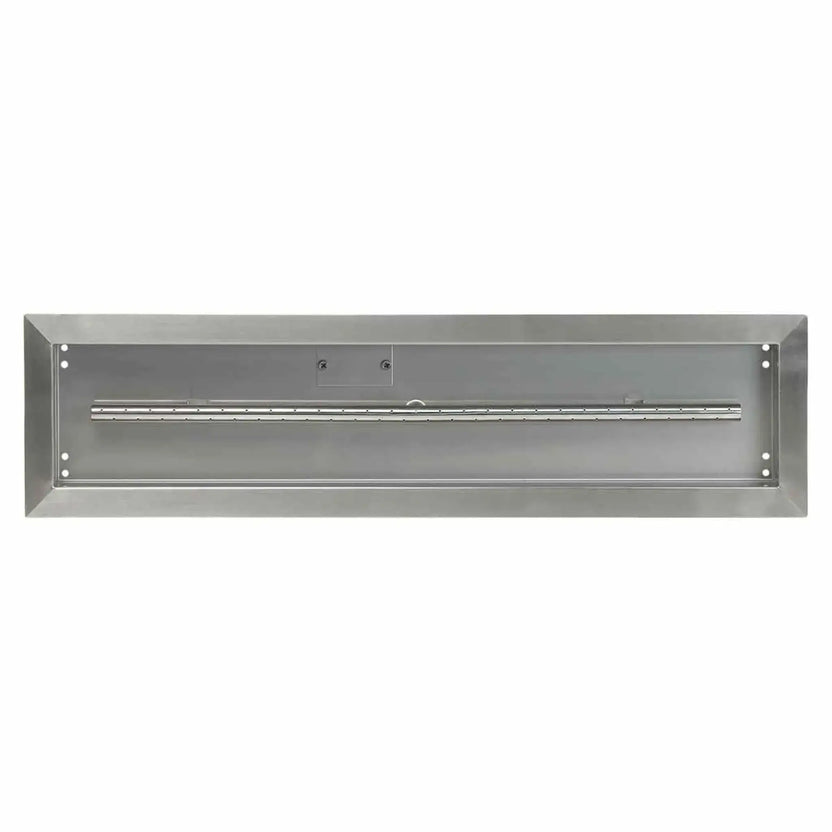

  • Front-facing view of a 30x6 stainless steel linear drop-in burner pan by American Fire Products, showing the recessed interior, mounting points, and evenly spaced burner ports for consistent flame output.

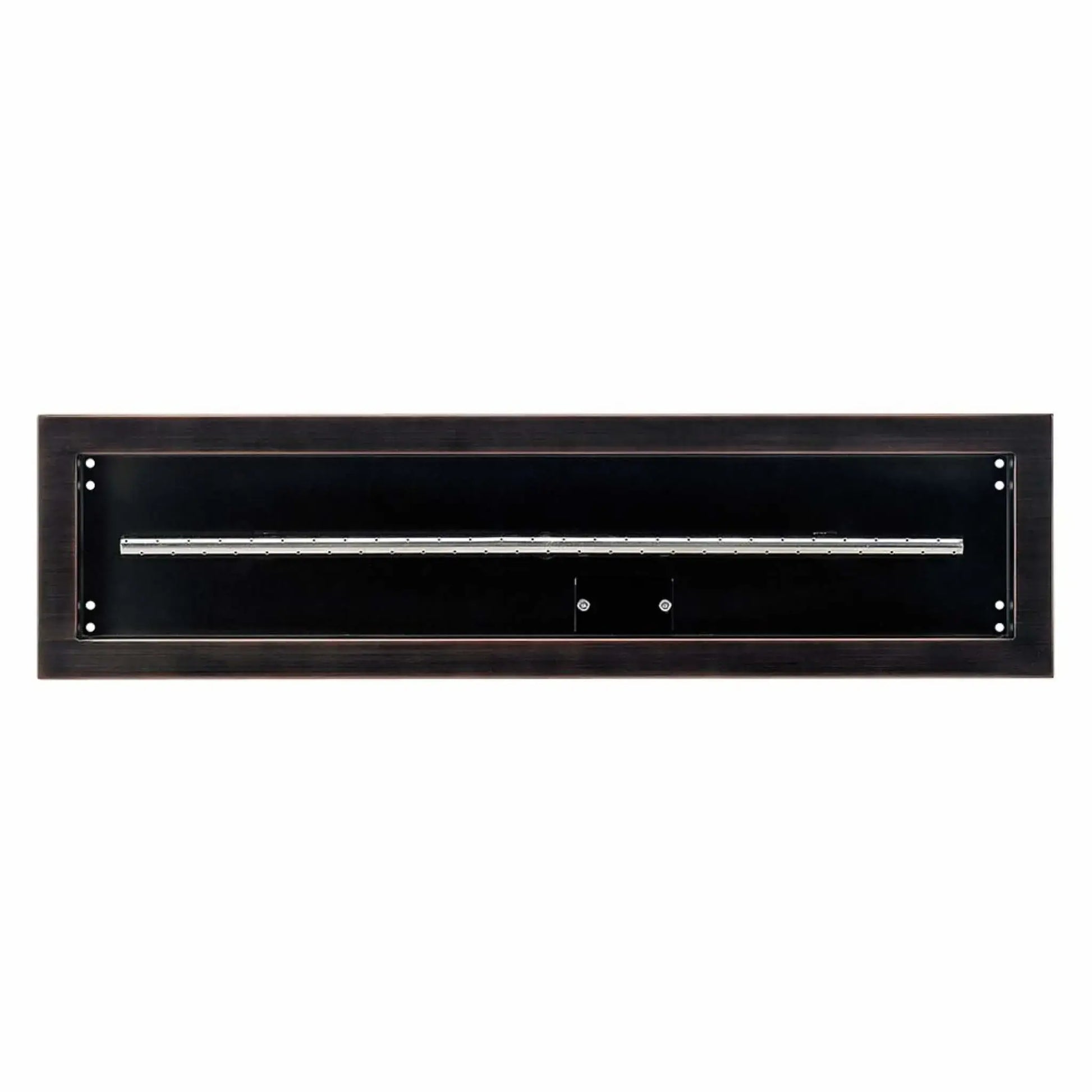

  • Top-down view of a 30x6 oil rubbed bronze linear drop-in burner pan from American Fire Products, showing the recessed fire pan interior, centered gas burner tube, and clean modern profile for outdoor fire pit installations.

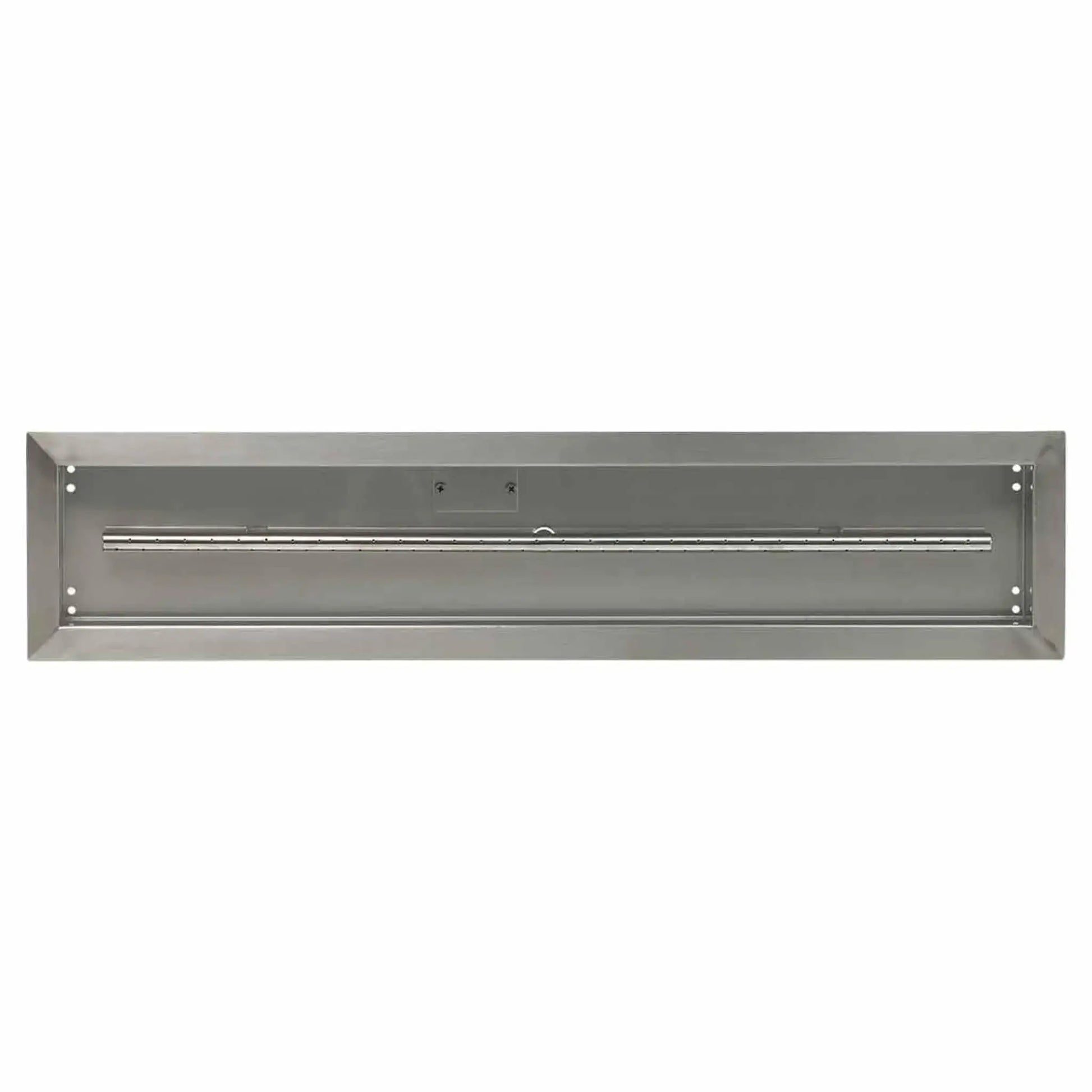

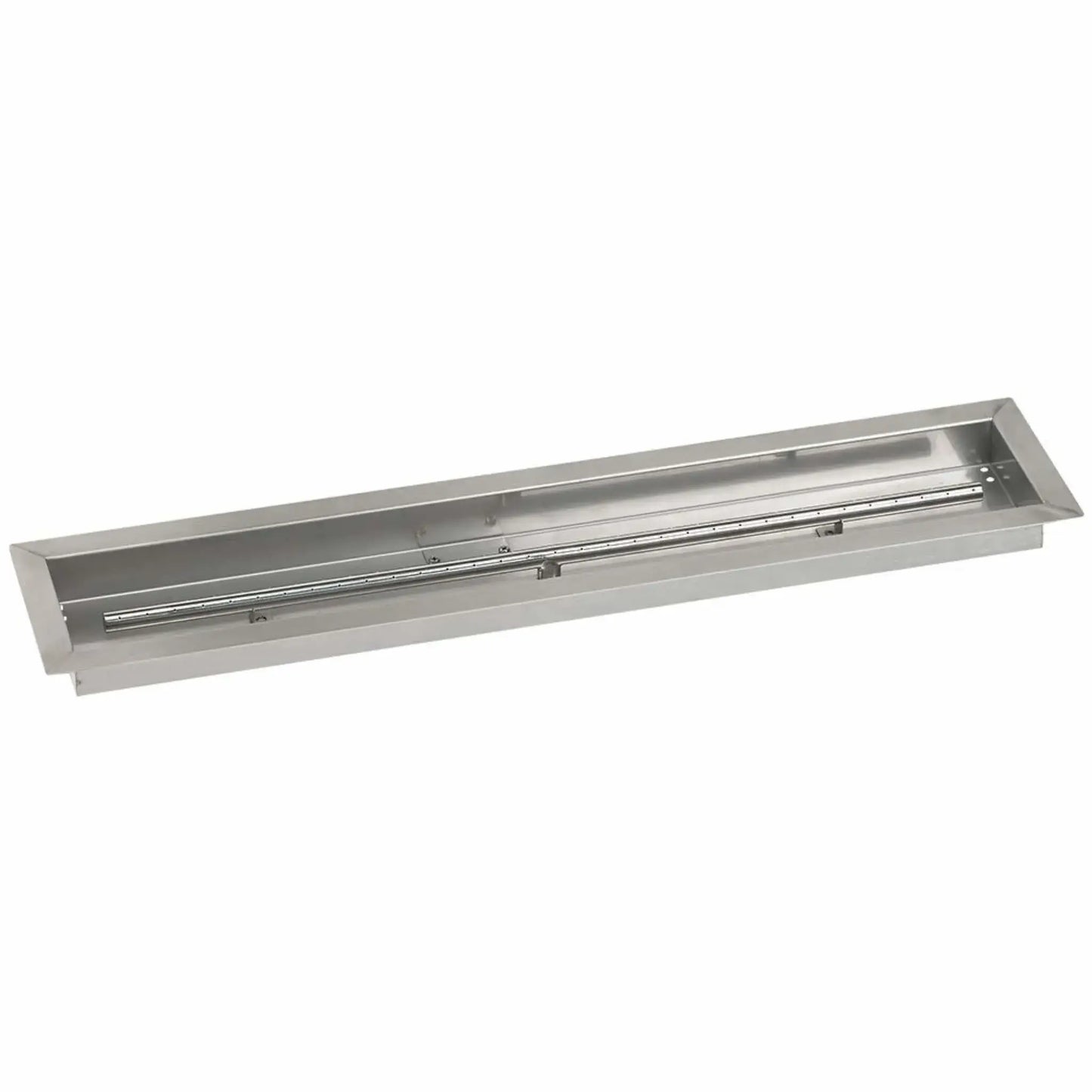

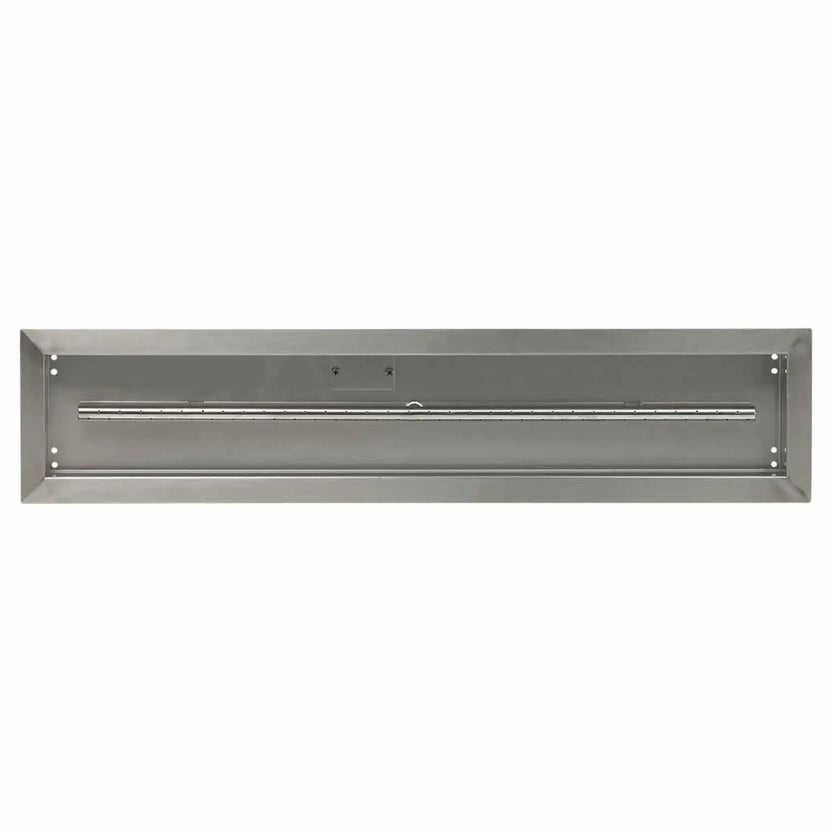

  • Top-down view of a 36x6 linear stainless steel drop-in burner pan from American Fire Products, highlighting the clean pan interior, full-length burner tube, and durable brushed stainless construction.

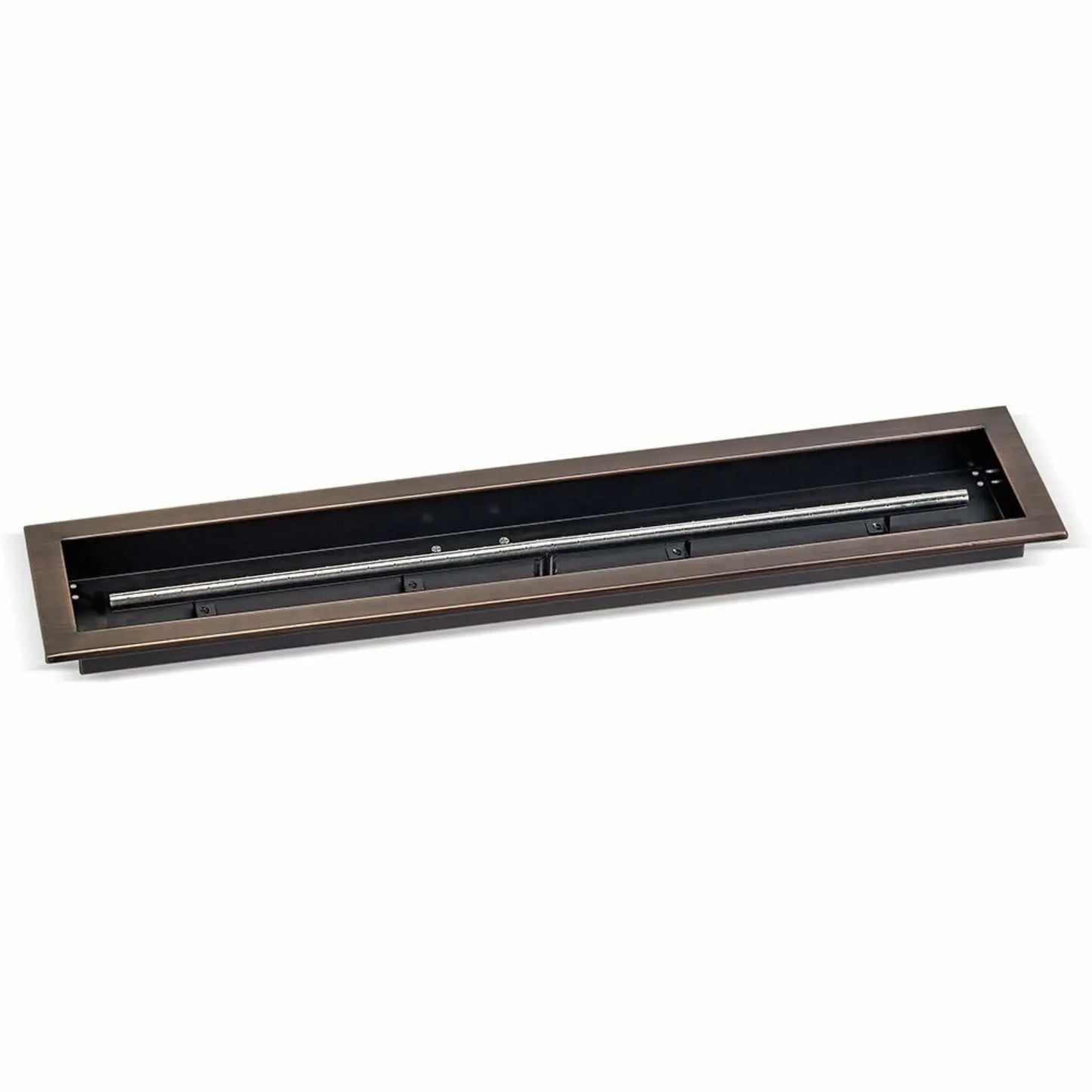

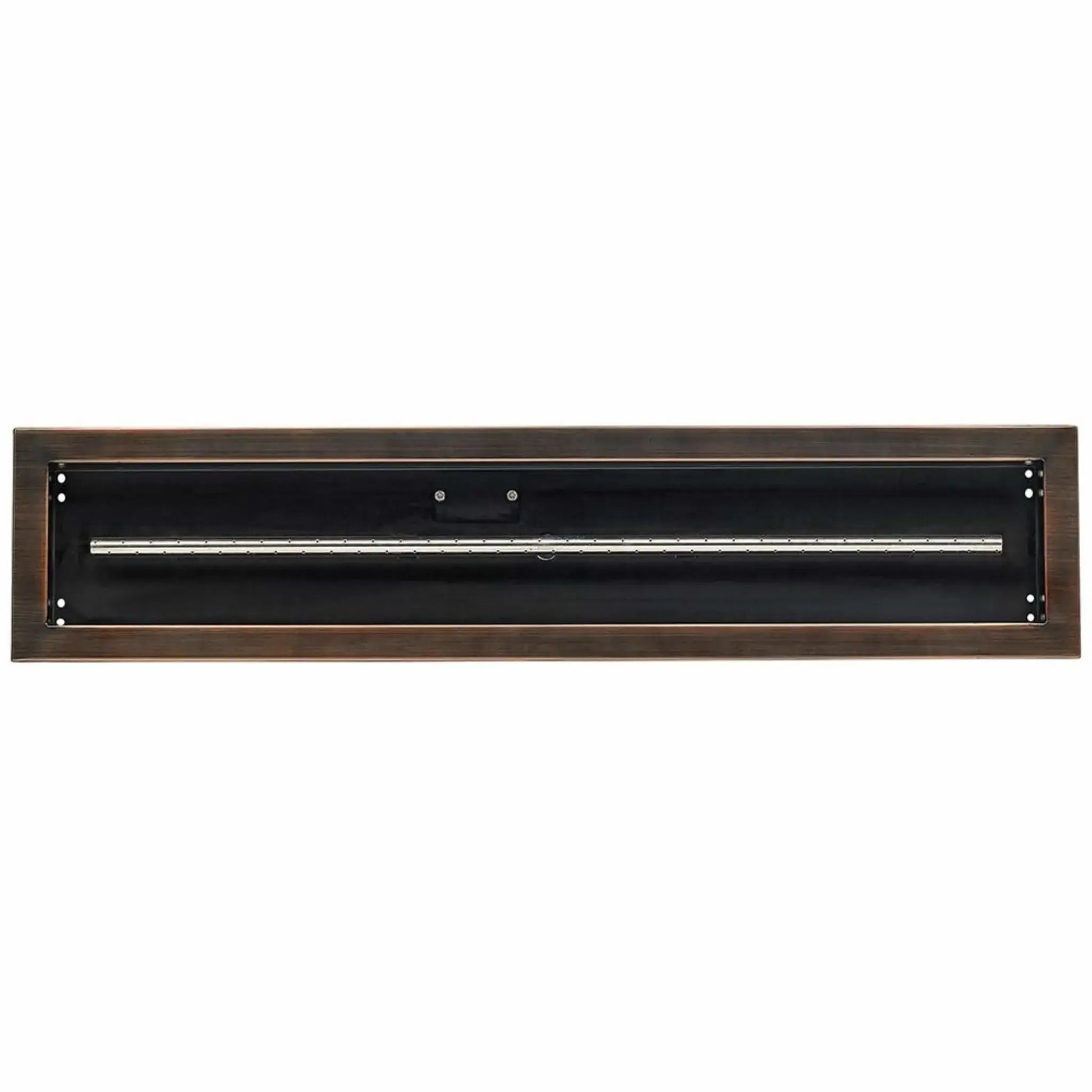

  • Front-facing view of a 36x6 oil rubbed bronze linear drop-in burner pan from American Fire Products, showing the recessed pan interior, mounting points, and evenly spaced burner tube for consistent flame distribution.

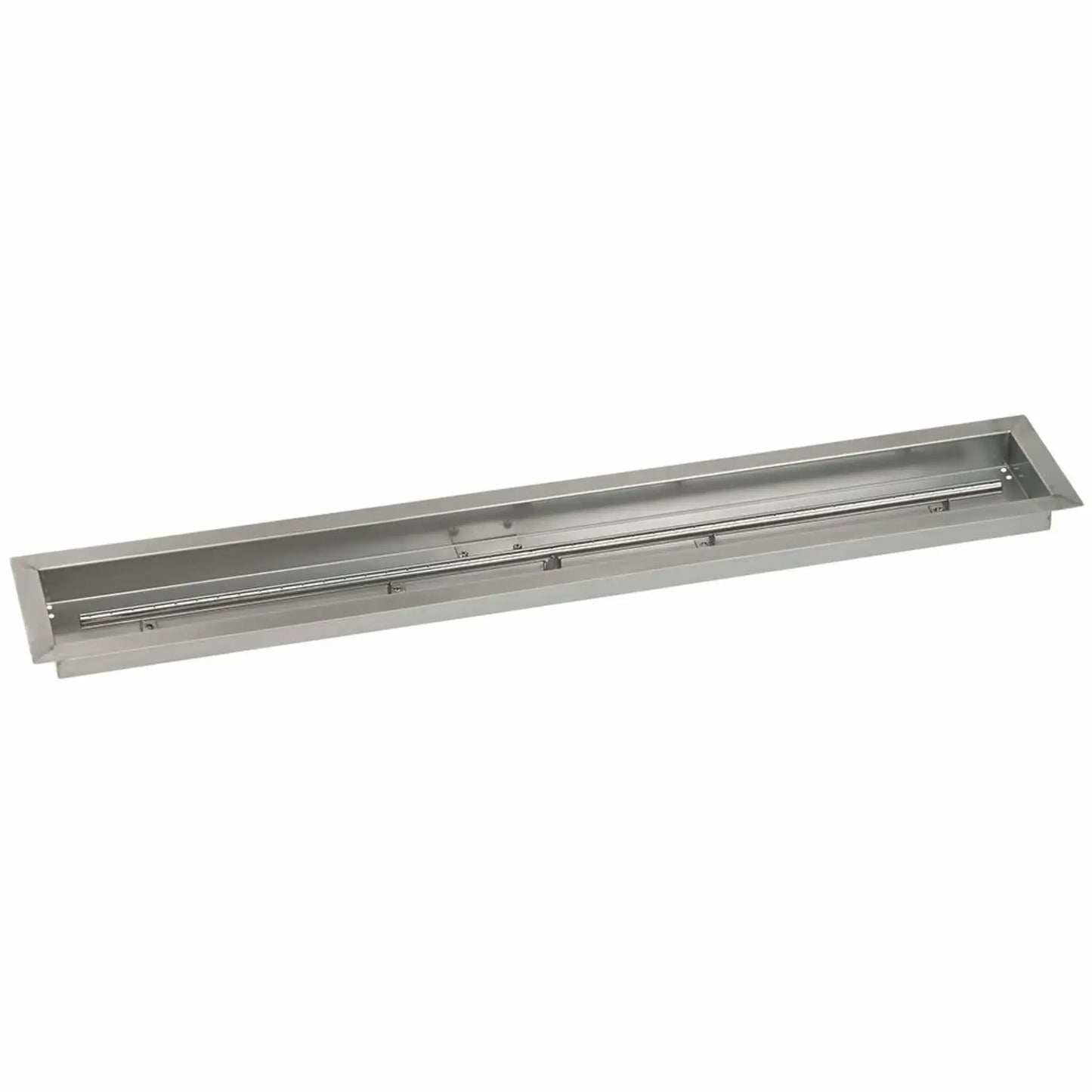

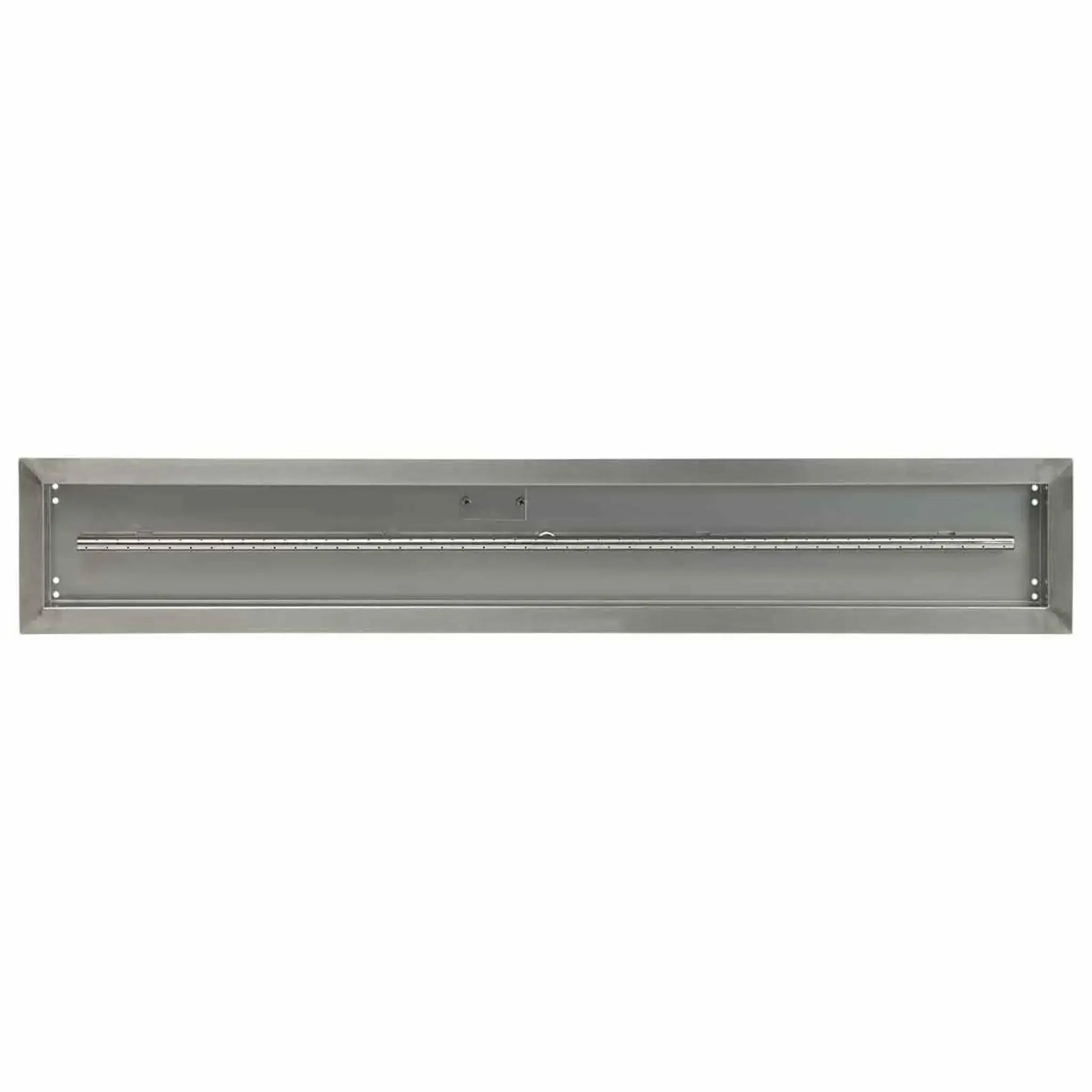

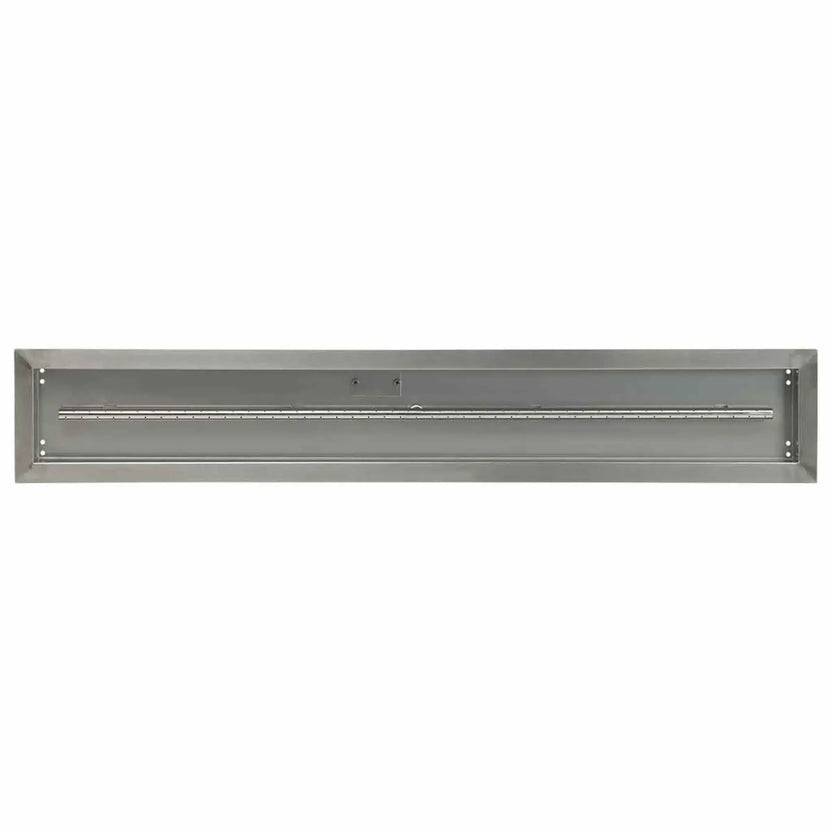

  • Angled view of a 48x6 linear stainless steel drop-in fire pit burner pan showing the clean welded edges, recessed pan depth, and centered burner for even flame distribution.

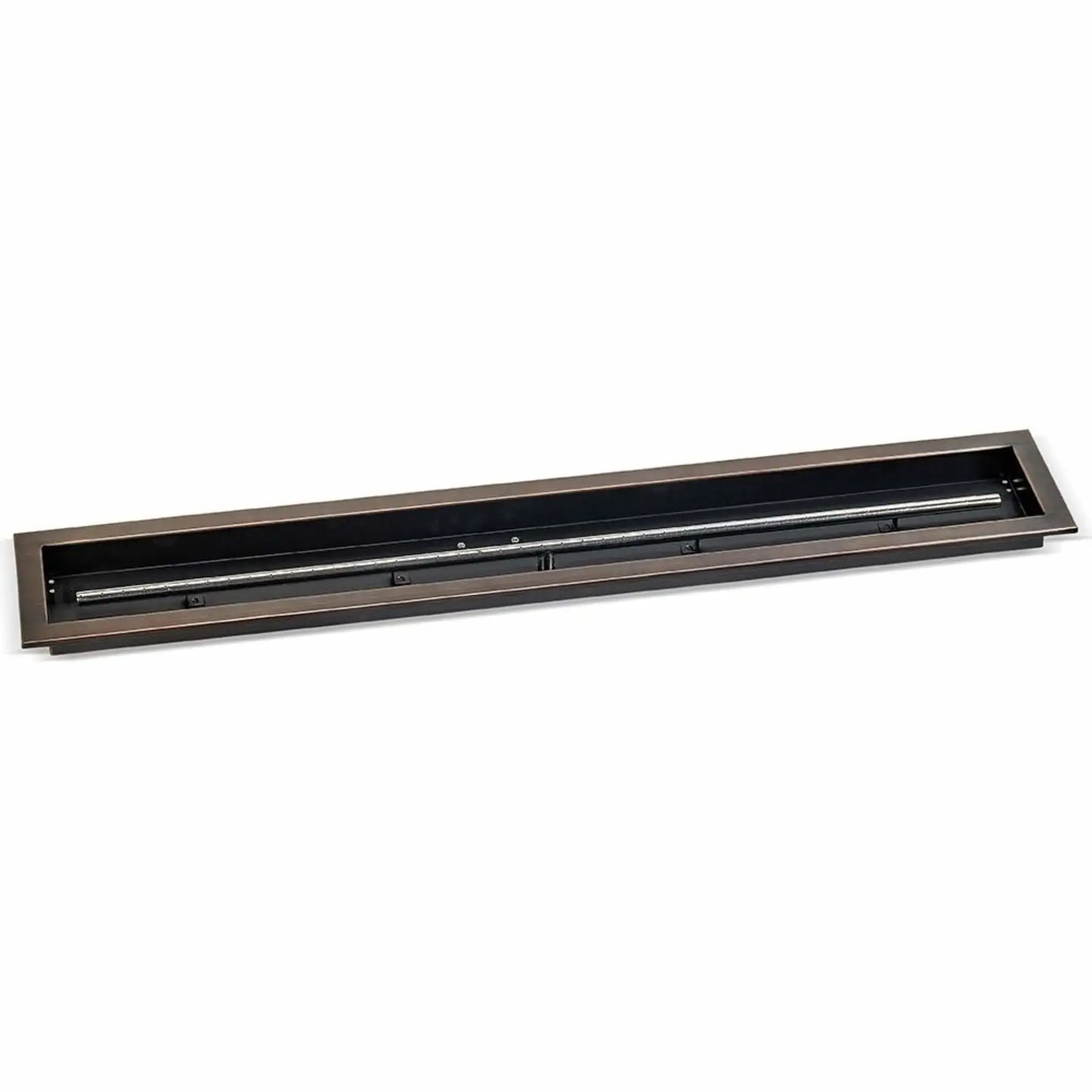

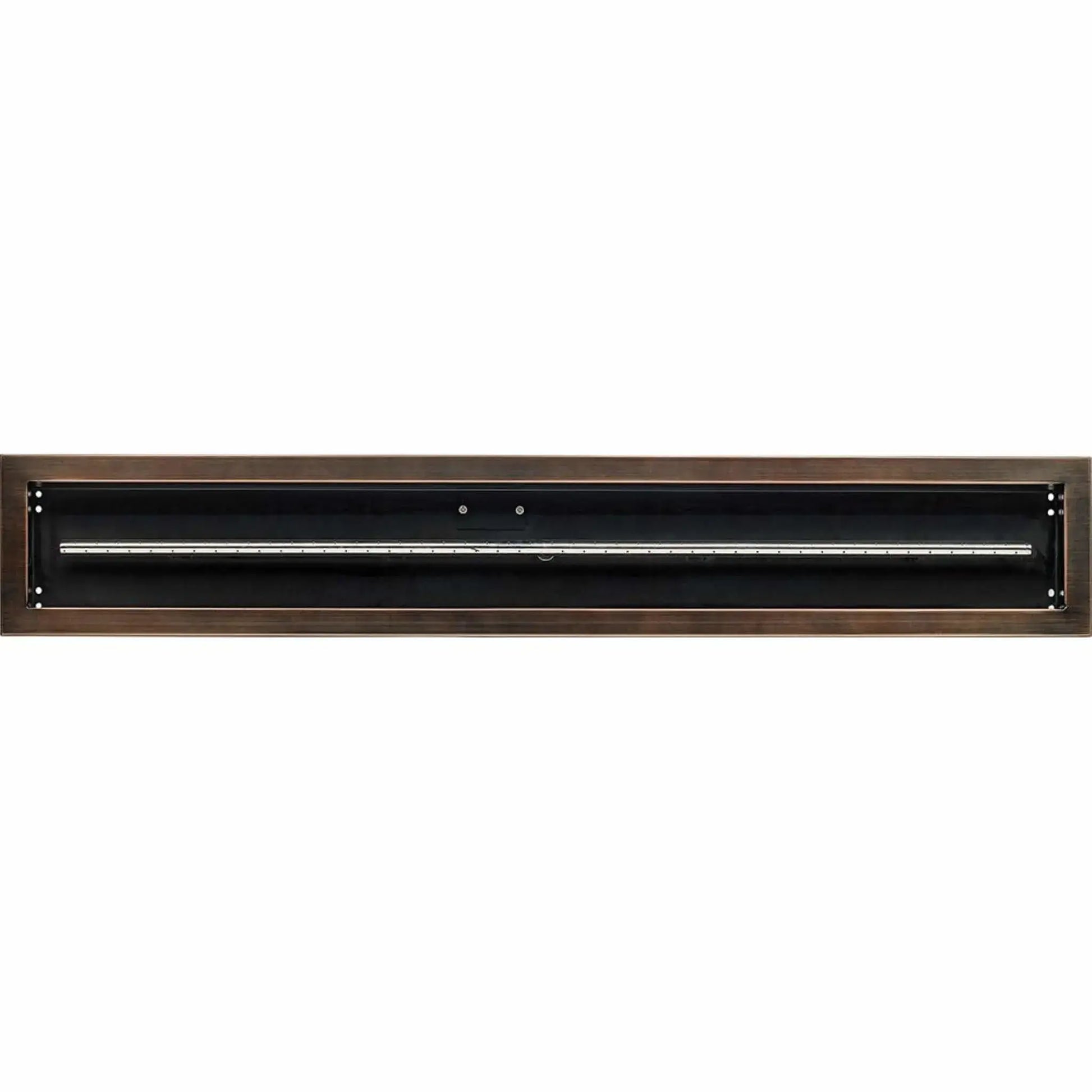

  • Top-down view of a 48x6 linear drop-in burner pan in an oil rubbed bronze finish, highlighting the elongated fire pan design and centrally mounted gas burner tube for modern outdoor fire features.

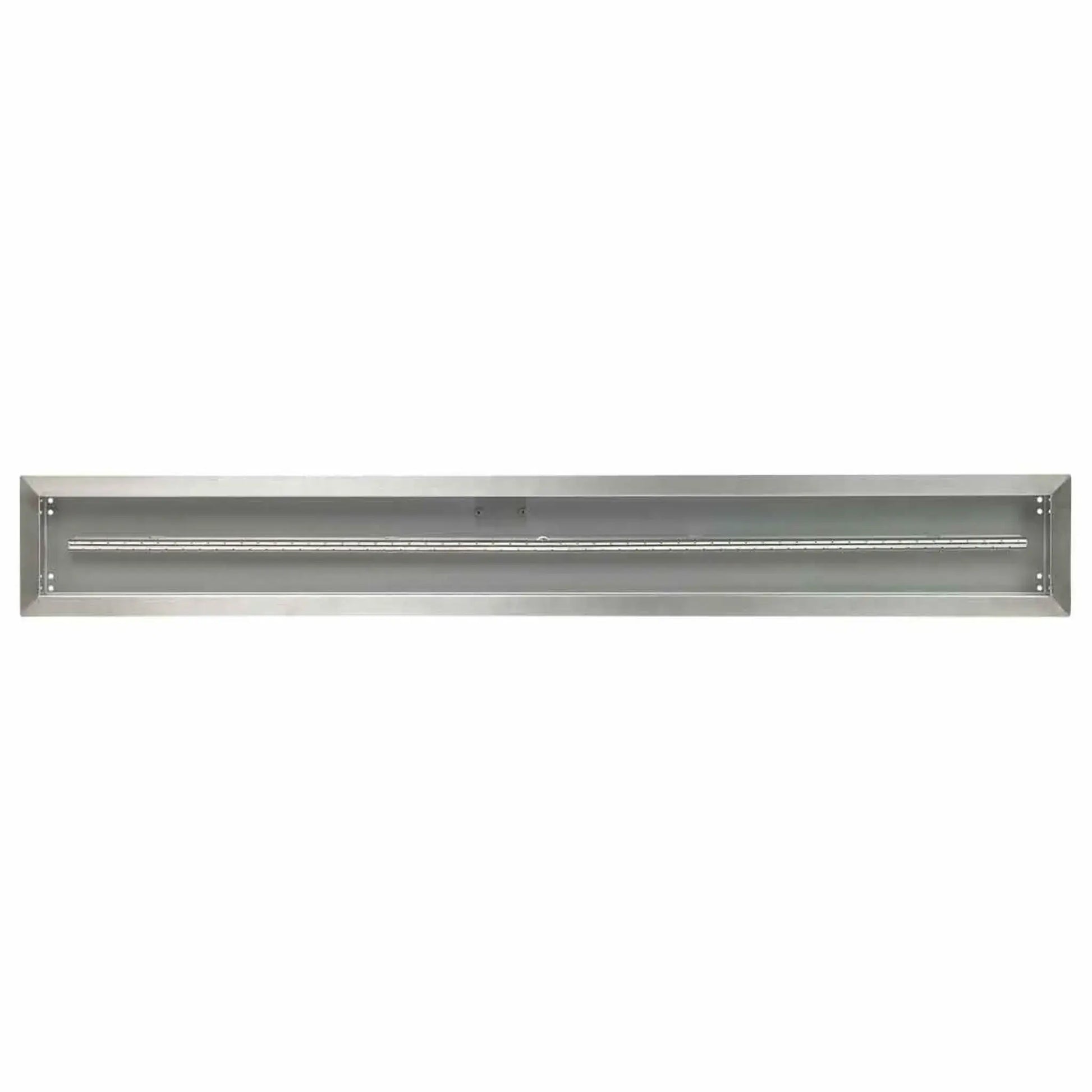

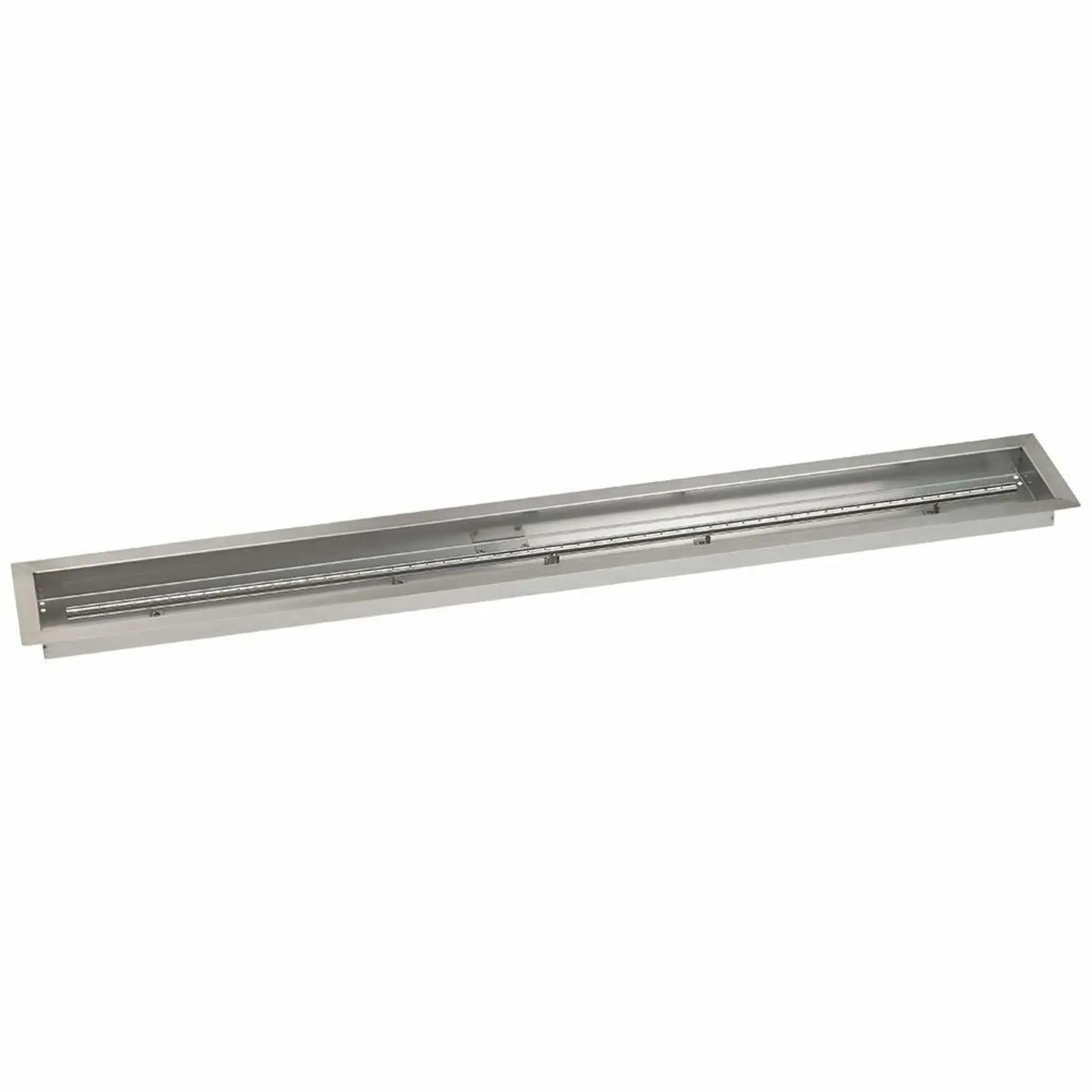

  • Perspective view of a 60x6 stainless steel linear drop-in burner pan highlighting the elongated burner design, smooth brushed finish, and low-profile rectangular construction.

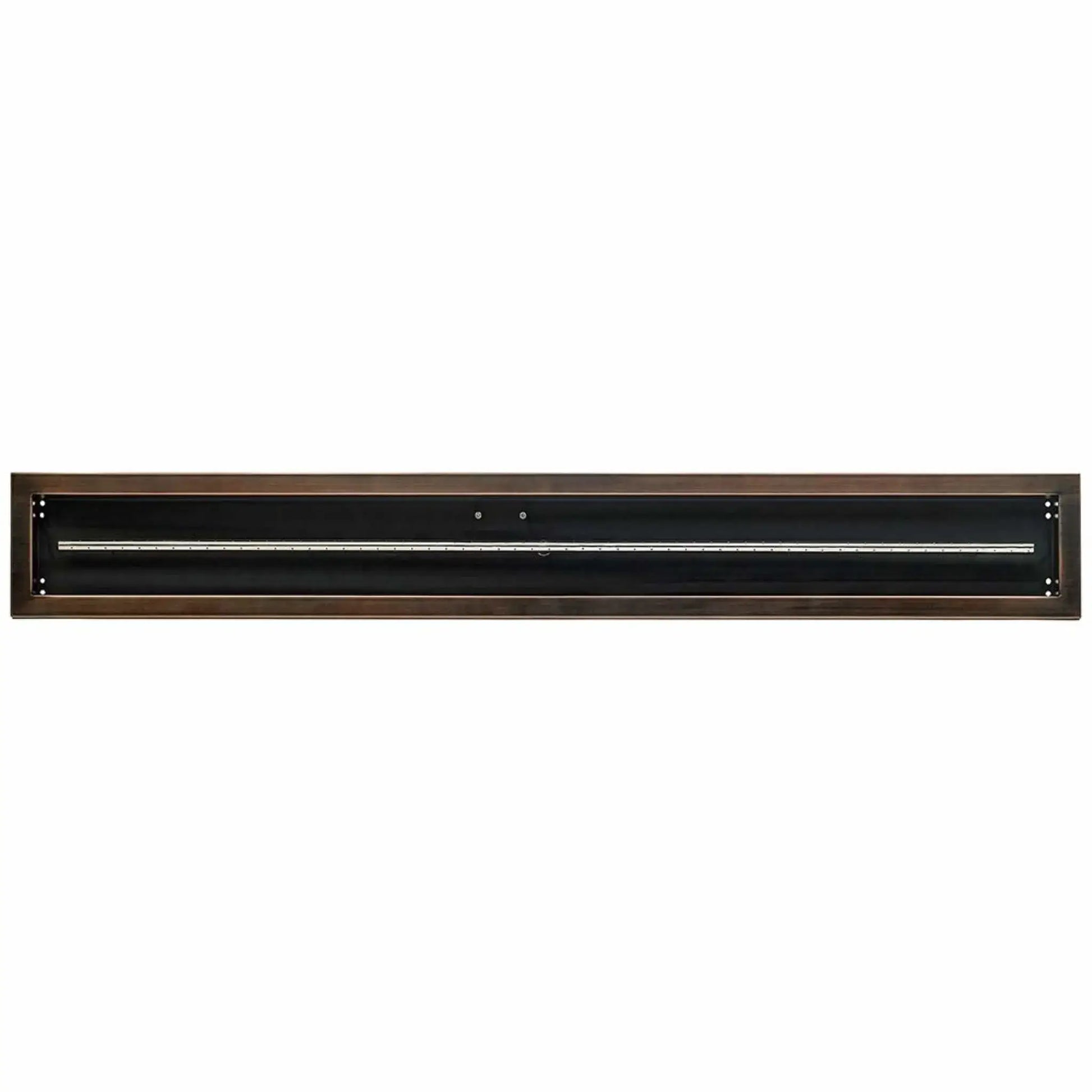

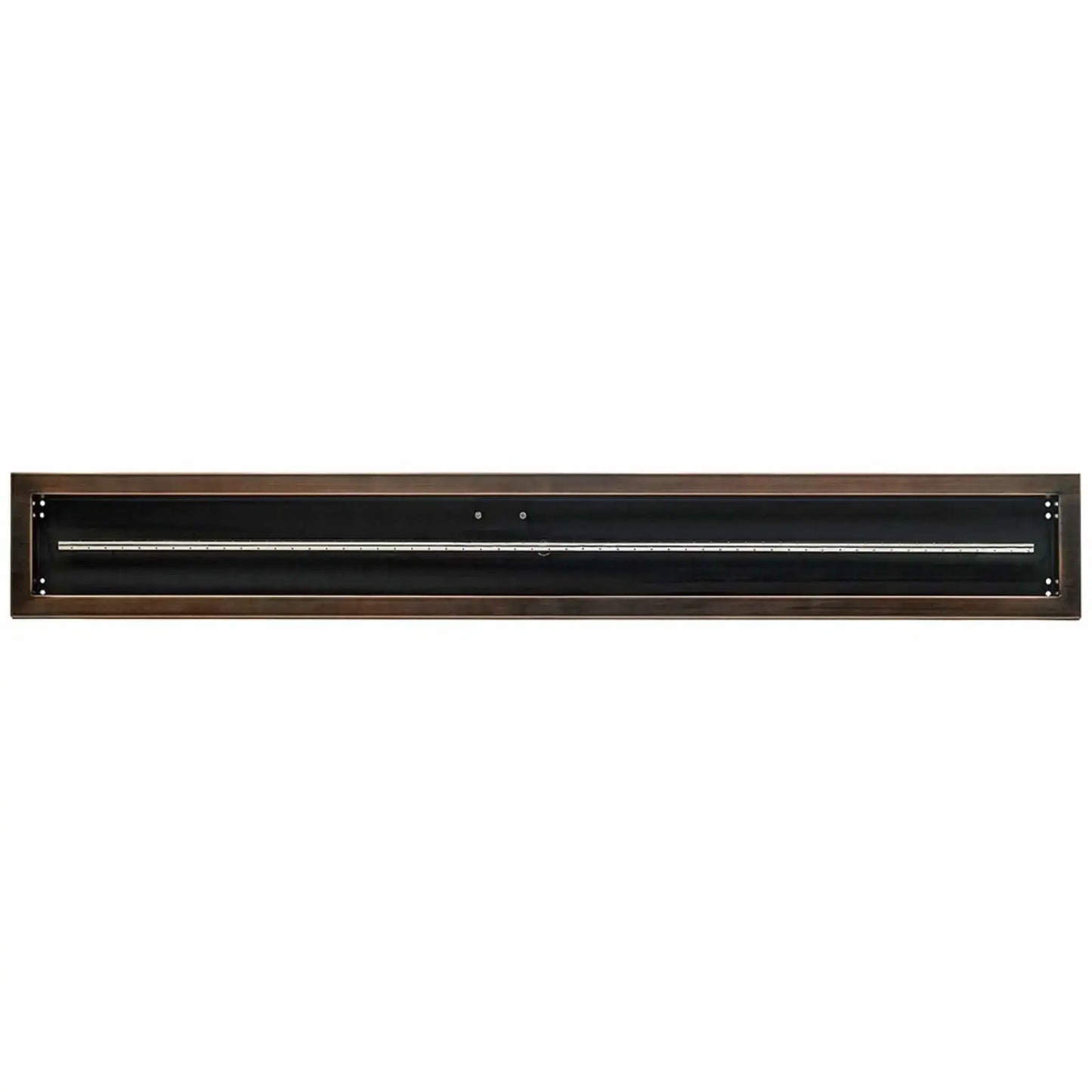

  • Straight-on view of a 60x6 oil rubbed bronze linear burner pan by American Fire Products, showing the full-length stainless steel burner, recessed interior, and clean modern edges for custom fire pit builds.

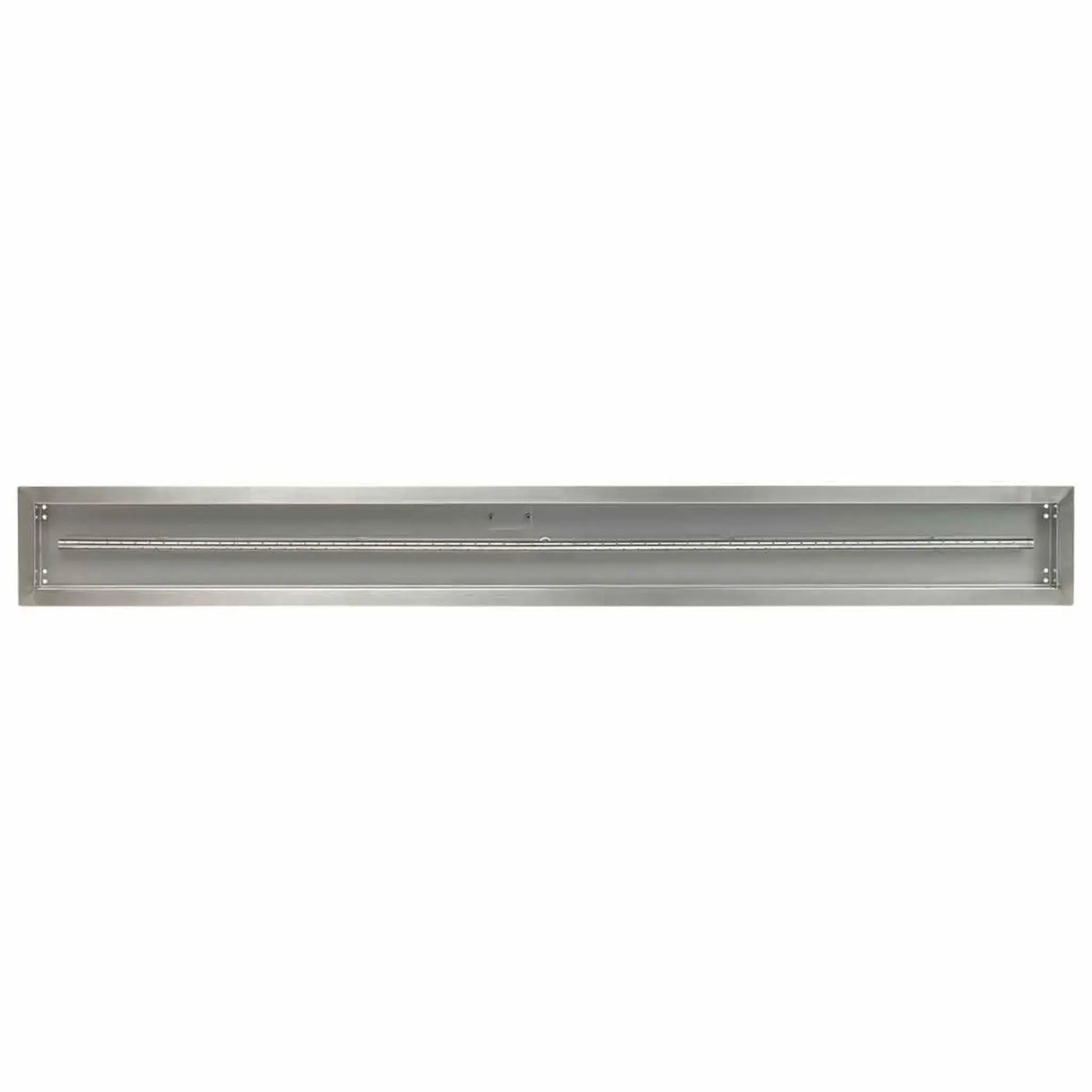

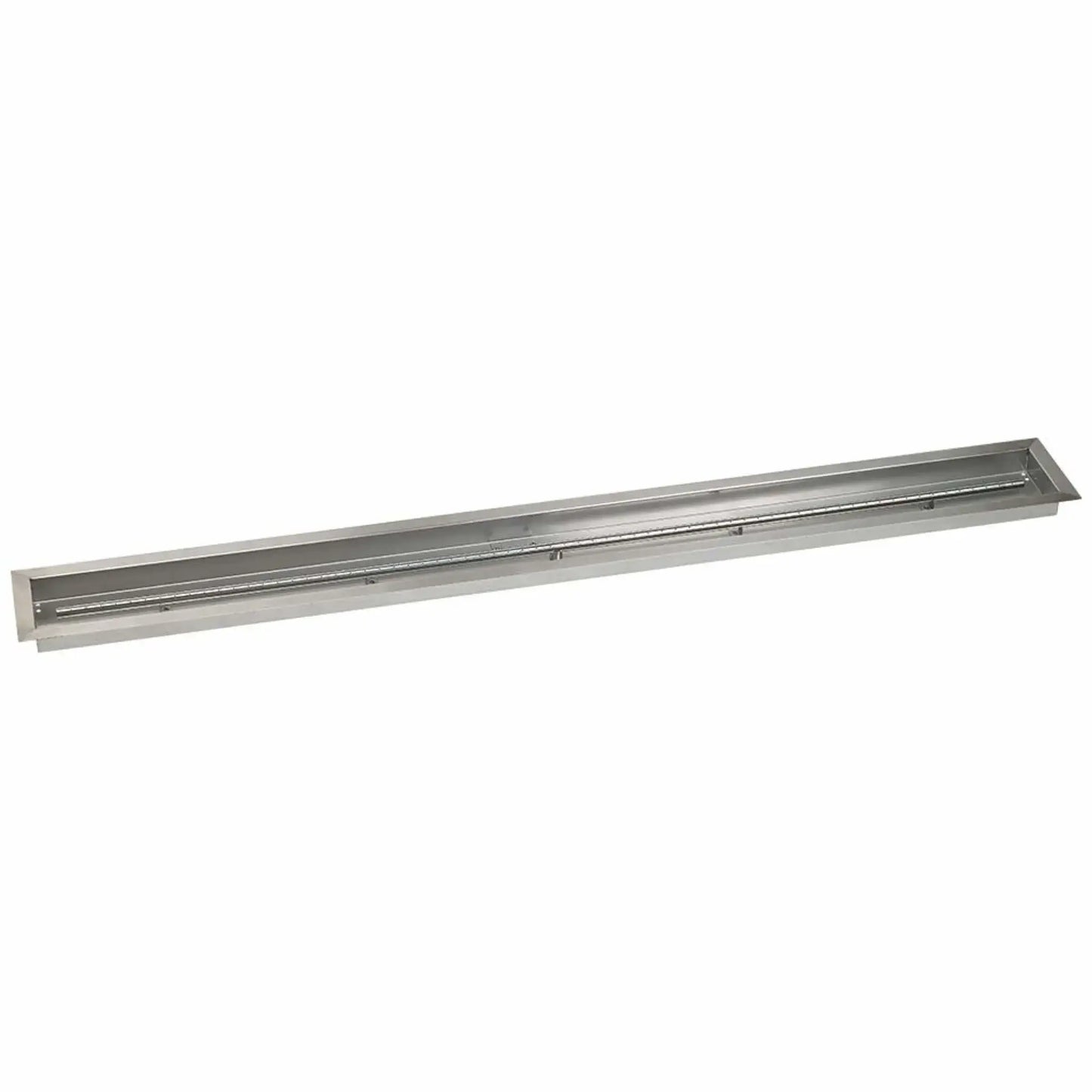

  • Angled product image of a 72x6 stainless steel linear fire pit burner pan showing the extended pan length, clean corners, and centered gas burner assembly.

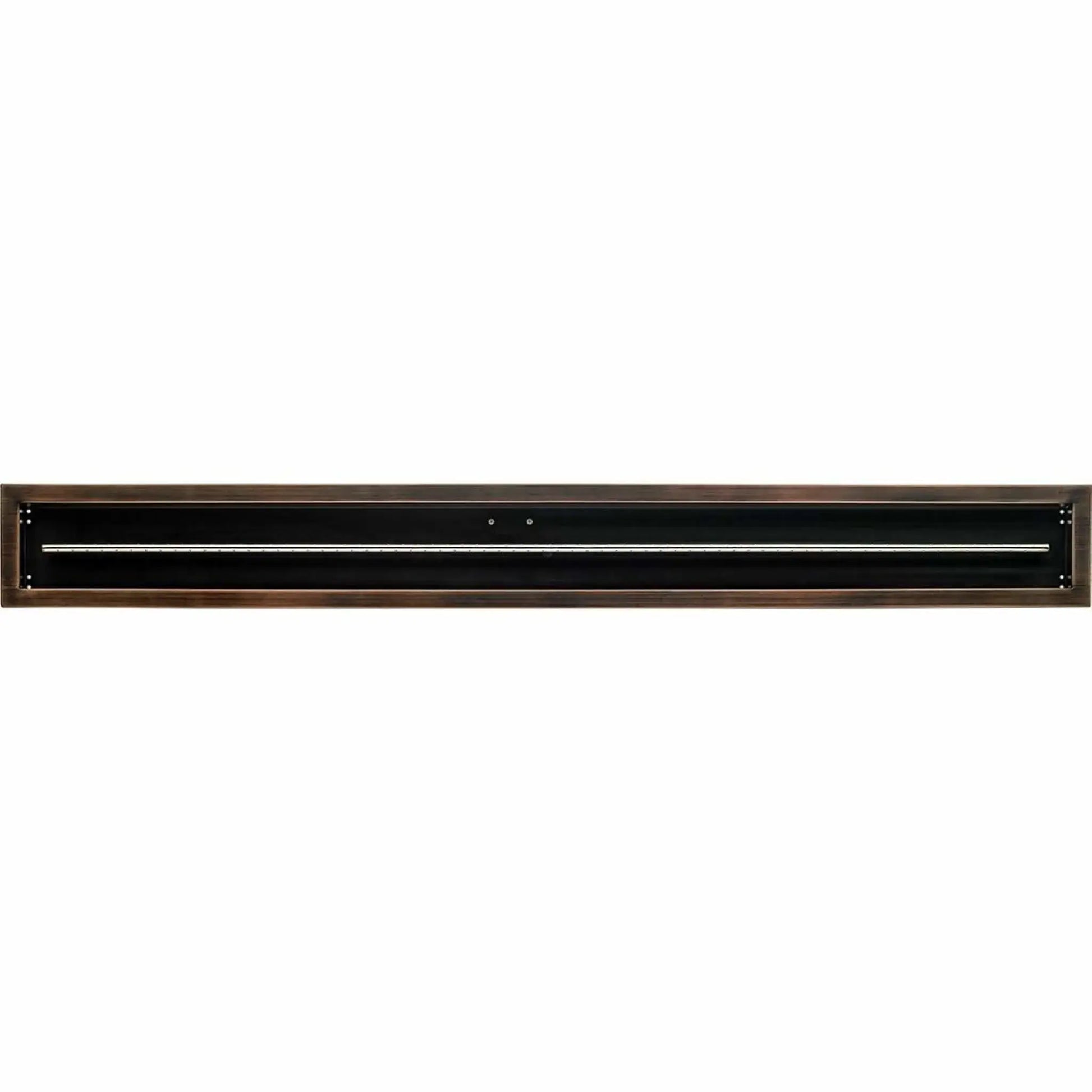

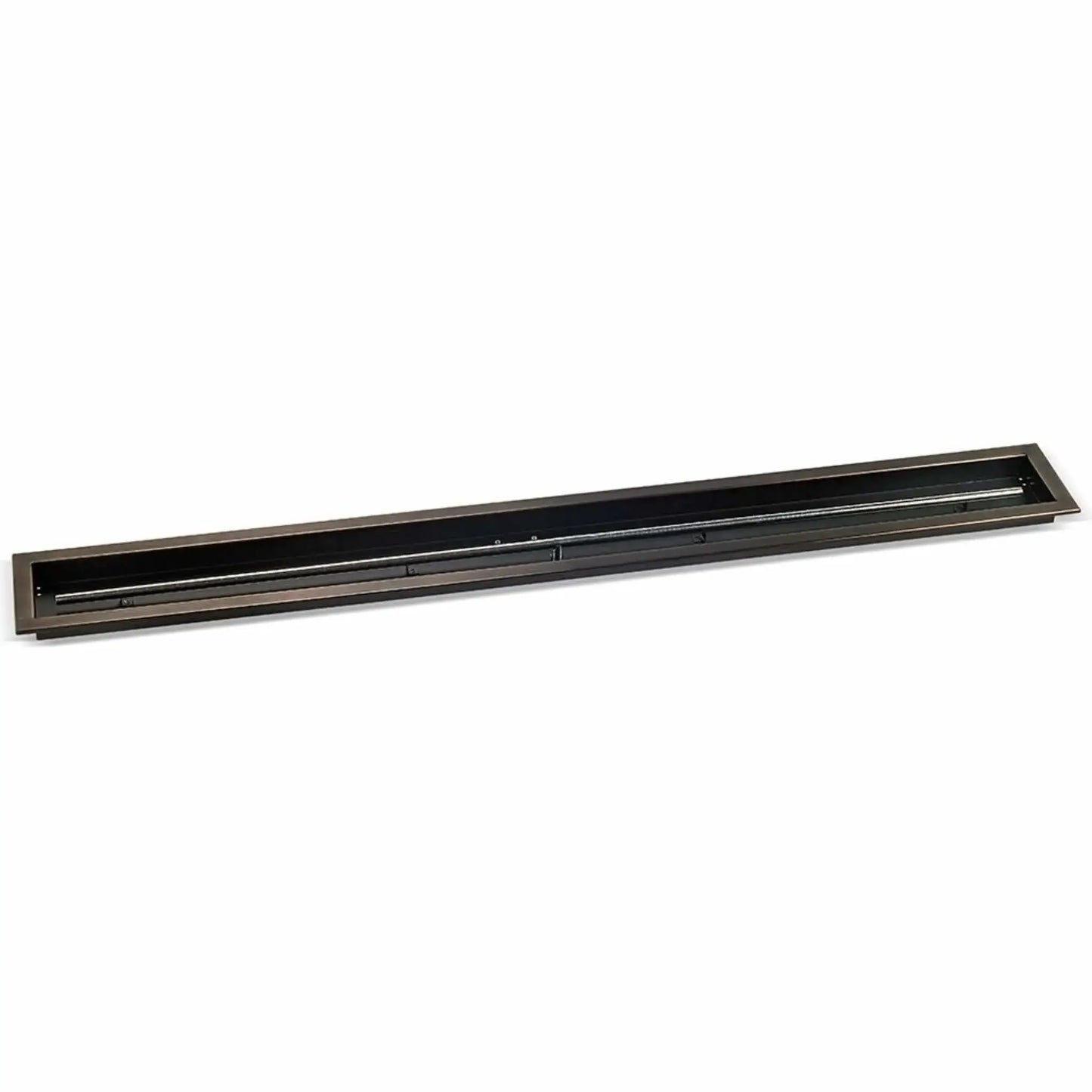

  • Straight-on view of a 72x6 linear drop-in burner pan by American Fire Products in an oil rubbed bronze finish, showing the full-length rectangular pan and centered stainless steel burner tube for large outdoor gas fire pits.

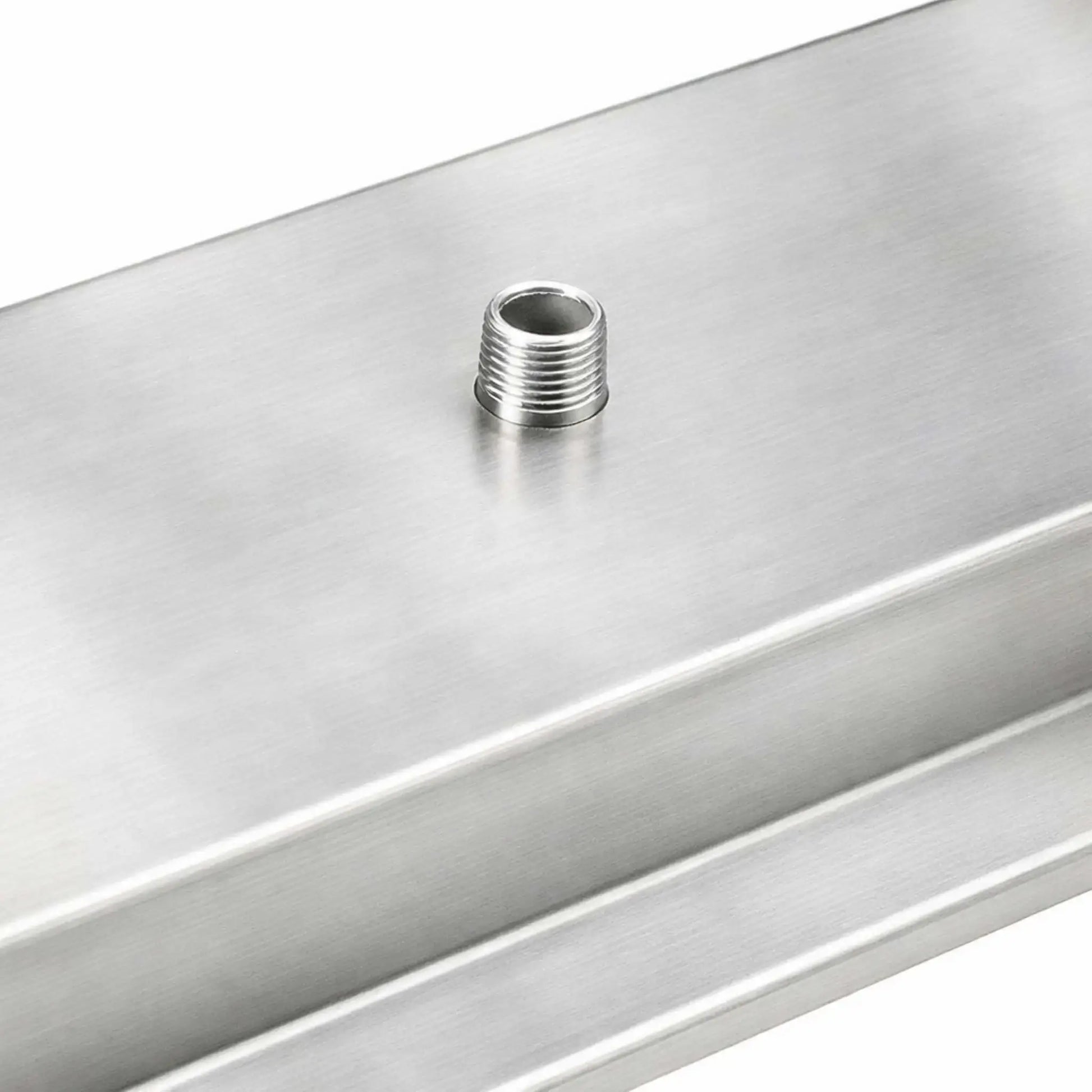

  • Close-up detail of the threaded gas inlet nipple on the underside of a stainless steel linear burner pan, showing the solid construction and secure gas connection point.

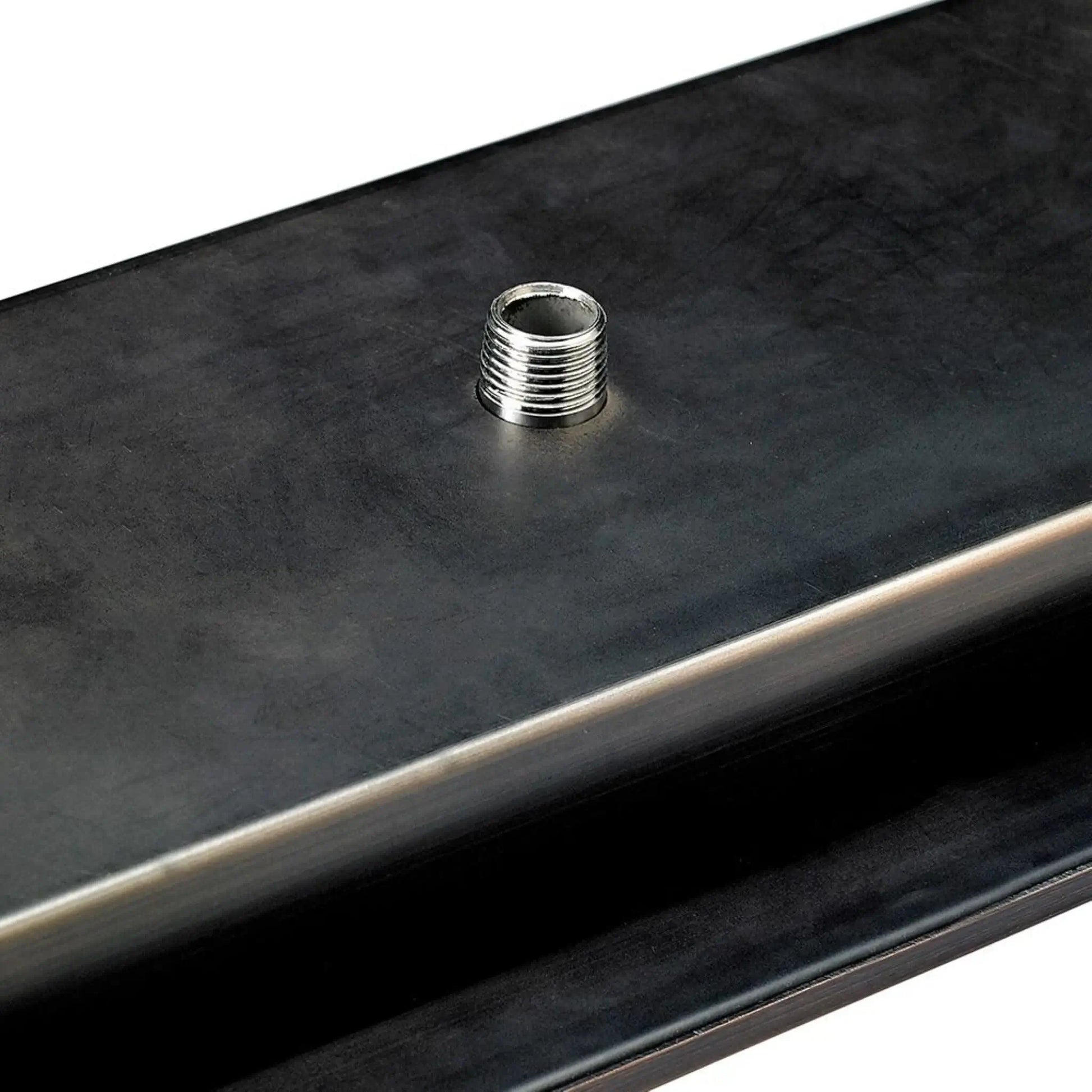

  • Close-up detail of the underside gas inlet nipple on an oil rubbed bronze linear drop-in burner pan from American Fire Products, highlighting the threaded gas connection used for secure outdoor fire pit installations.

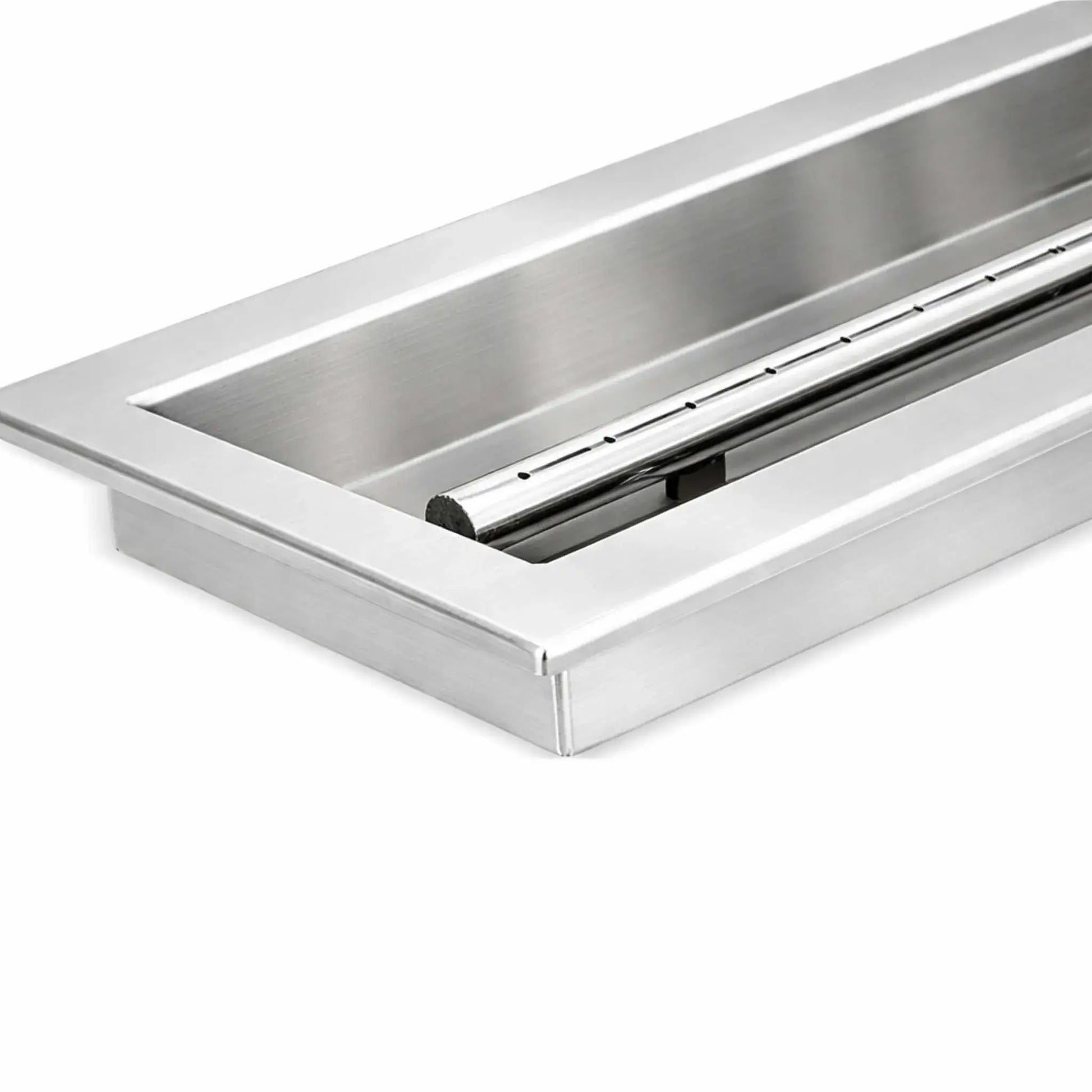

  • Close-up view of the corner on a stainless steel linear drop-in burner pan, showing the clean folded edges, brushed metal finish, and precision-welded construction designed for long-term outdoor fire pit installations.

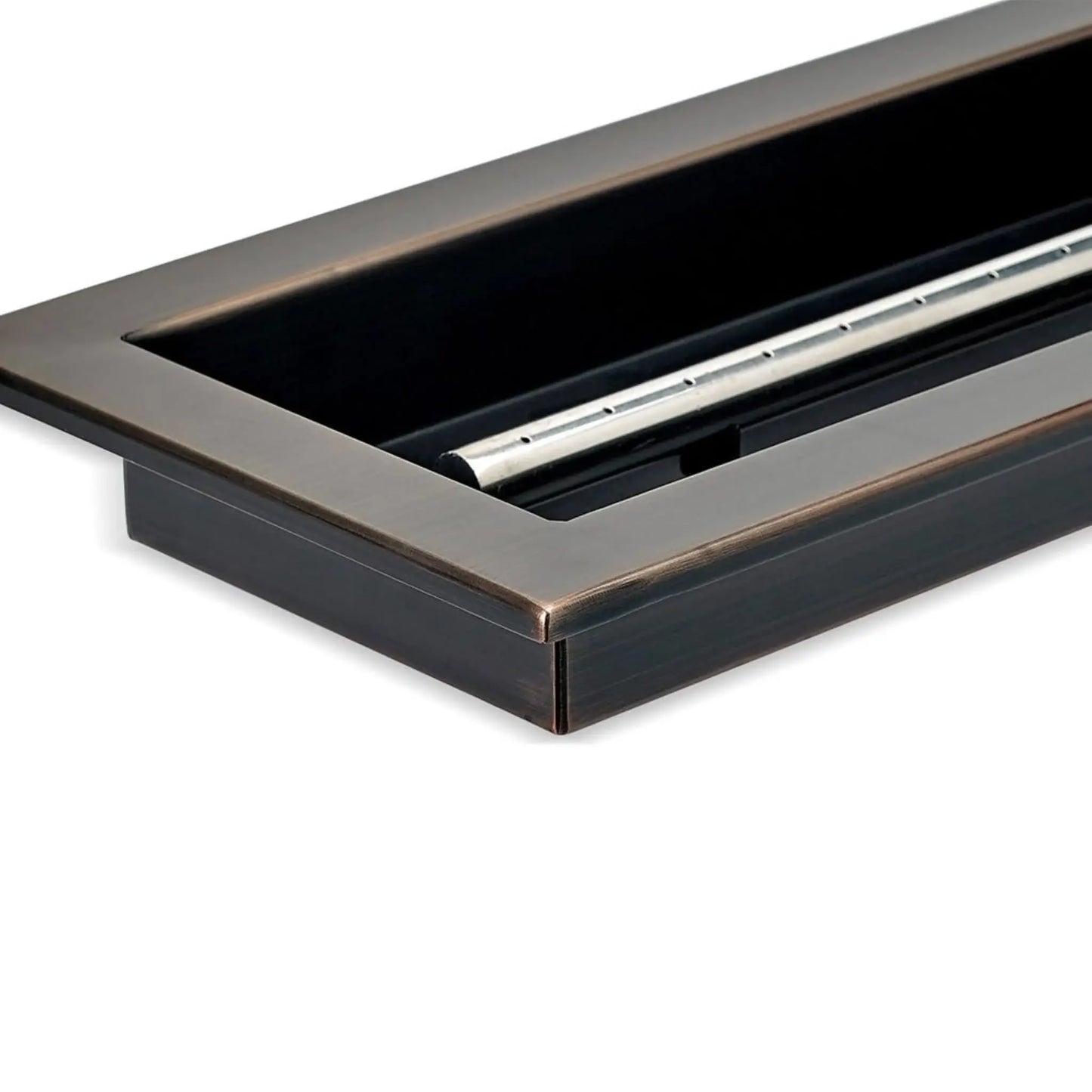

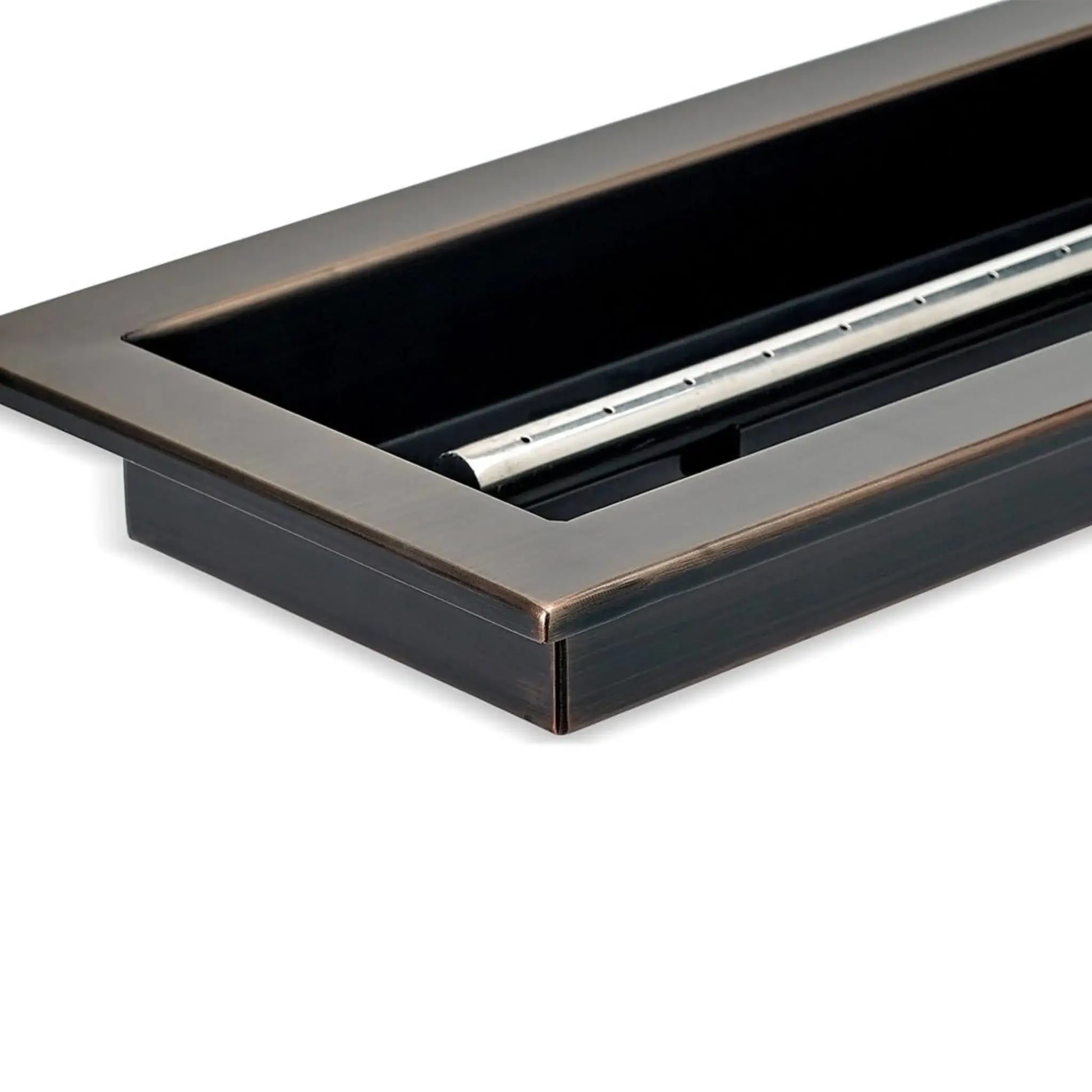

  • Corner close-up of an oil rubbed bronze linear drop-in burner pan by American Fire Products, showing the folded steel construction, finished edge detail, and recessed pan depth designed for durability and clean installation.
1 37

Linear 30" - 72" Stainless Steel Oil Rubbed Bronze Drop-In Fire Pit Burner & Pan by American Fire Products

Linear 30" - 72" Stainless Steel Oil Rubbed Bronze Drop-In Fire Pit Burner & Pan by American Fire Products

  • Premium Craftsmanship
  • Warranty Included
  • Certified Performance

Ships in: 1-3 Business Days

SS-LCB-30

Size
Finish
$288.74 USD
$384.99 USD $288.74 USD
Sale Sold out
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

What's Included

Your choice of Fire Pit Pan & Burner, including:

  • T-Burner Fire Pit Burner
  • Linear Drop-In Fire Pit Burner Pan

Specifications

Length:

  • 30" ( +1.25" Lip)
  • 36" ( +1.25" Lip)
  • 48" ( +1.25" Lip)
  • 60" ( +1.25" Lip)
  • 72" ( +1.25" Lip)

Width:

  • 6" ( +1.25" Lip)

Height: 2.5" - 3"

Weight: 11 lbs - 24 lbs

Material/Finish: Stainless Steel or Oil Rubbed Bronze

Fuel Type: Natural Gas or Propane Gas (With correct connection kit and necessary fittings)

Heat Output (BTUs):

  • 30": Up to 54K BTUs
  • 36": Up to 65K BTUs
  • 48": Up to 91K BTUs
  • 60": Up to 108K BTUs
  • 72": Up to 175K BTUs

Ignition Type: Match Lit, Spark Ignition, or Electronic Ignition (With correct connection kit and necessary parts & fittings)

Warranty: Lifetime

Documents & Downloads

Shipping & Returns

Shipping:

  • This Product Ships Small Parcel (Ground). For more details, please see our full shipping policy.

Returns & Exchanges:

  • This product is eligible for returns within 30 days of delivery minus 15% Re-Stocking Fee & any applicable Shipping cost. For more details, please see our full return policy.

Disclaimers

Important Safety Notice:

  • This product includes chemicals recognized by the State of California as potentially causing cancer, birth defects, or other reproductive harm. Please handle with care and adhere to all safety instructions outlined in the product manual. For detailed information about Proposition 65 and its implications, please visit the official CA Prop 65 Warning website.

Sooting or Blackening:

  • Due to the nature of Gas Burners, Sooting or Blacking seen on media is normal and to be expected. For excessive sooting, please refer to owner's manual attached.

Add timeless elegance to your outdoor space with the Linear Stainless Steel Oil Rubbed Bronze Drop-In Fire Pit Burner & Pan by American Fire Products. Featuring a sleek linear design and a stunning oil-rubbed bronze finish, this drop-in fire pit pan delivers both style and functionality. Crafted from premium 304 stainless steel, it is built to withstand the elements and ensure long-lasting durability.

The linear burner is designed for exceptional flame performance, producing a mesmerizing line of vibrant, evenly distributed flames. Its drop-in construction allows for a seamless, professional look, perfect for modern and rustic outdoor settings alike. Compatible with both natural gas and propane, it offers flexibility and efficiency to suit your needs.

Enhance the beauty of your fire feature with fire glass, as this burner and pan combination creates a brilliant interplay of light and warmth, elevating the ambiance of any gathering.

Key Features:

  • Durable 304 stainless steel construction with the options of an elegant oil-rubbed bronze finish.
  • Linear drop-in design for a sleek, polished look.
  • Even flame distribution for a captivating fire display.
  • Works with natural gas and propane for versatile fuel options.
  • Pairs beautifully with American Fire Products Fire Glass for added sparkle and charm.

Turn your fire pit into a luxurious focal point with the Linear Stainless Steel Oil Rubbed Bronze Drop-In Fire Pit Burner & Pan.

View full details

FAQ

Everything You Need to Know

What is GFRC concrete, and will every finish look identical?

GFRC is Glass Fiber Reinforced Concrete, offering strength, reduced weight, and outdoor durability. Because each enclosure is hand-finished, minor variations in color, texture, mottling, pinholes, and surface character are normal.

Can the fire pit remain outdoors year-round?

The GFRC enclosure is designed for outdoor use, but the fire pit should be protected from rain, snow, sprinklers, standing water, and prolonged moisture. The included protective cover should only be installed after the burner and fire glass are completely cool and dry.

Does the fire pit require professional installation?

A licensed or certified gas professional should install or connect the appliance, confirm gas pressure and capacity, perform leak testing, and verify safe operation. This is especially important for natural gas lines and any fuel conversion.

Are the glass wind guard and burner cover included?

They are optional accessories sold separately. Both are model-specific, so customers must select the correct shape and dimensions for their fire pit. The burner cover must always be removed before lighting the appliance.

Does the fire pit require electricity?

No household electrical connection is required. The ignition system is battery-powered and uses a spark igniter with flame-sensing technology. The system generally operates with a replaceable AAA battery.

What surface and clearances are required?

The fire pit must be installed on a stable, level, noncombustible surface such as concrete, masonry, brick, or stone. Adequate clearance must be maintained from walls, ceilings, furniture, vegetation, and combustible materials. Customers should follow the manual for their specific model and all applicable local codes.
