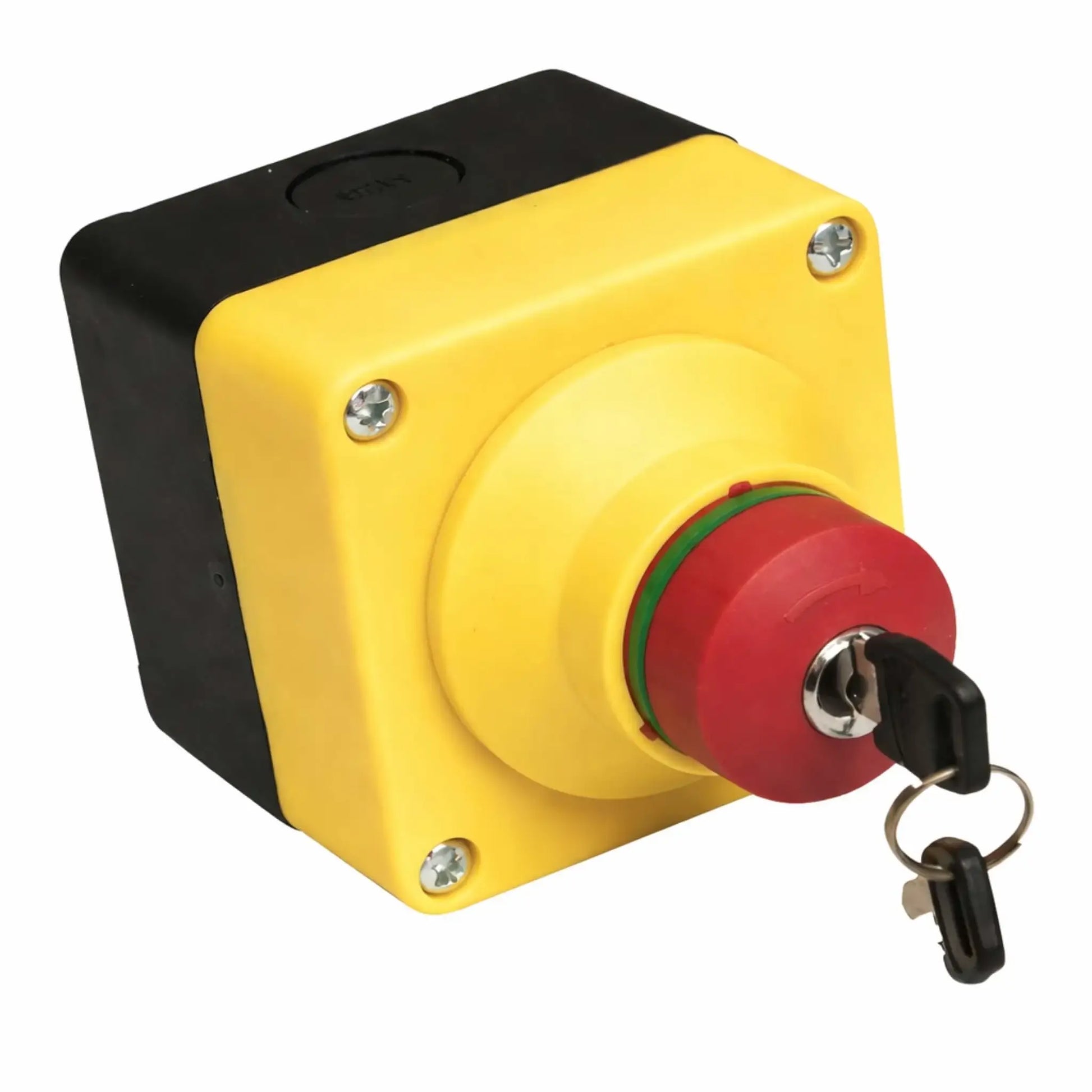

• Bright yellow industrial emergency stop control box with a red mushroom-style E-stop button and keyed reset mechanism. The unit features a durable black housing, four corner mounting screws, and a protruding push-to-stop button designed for commercial fire pit or gas appliance safety shutoff applications.

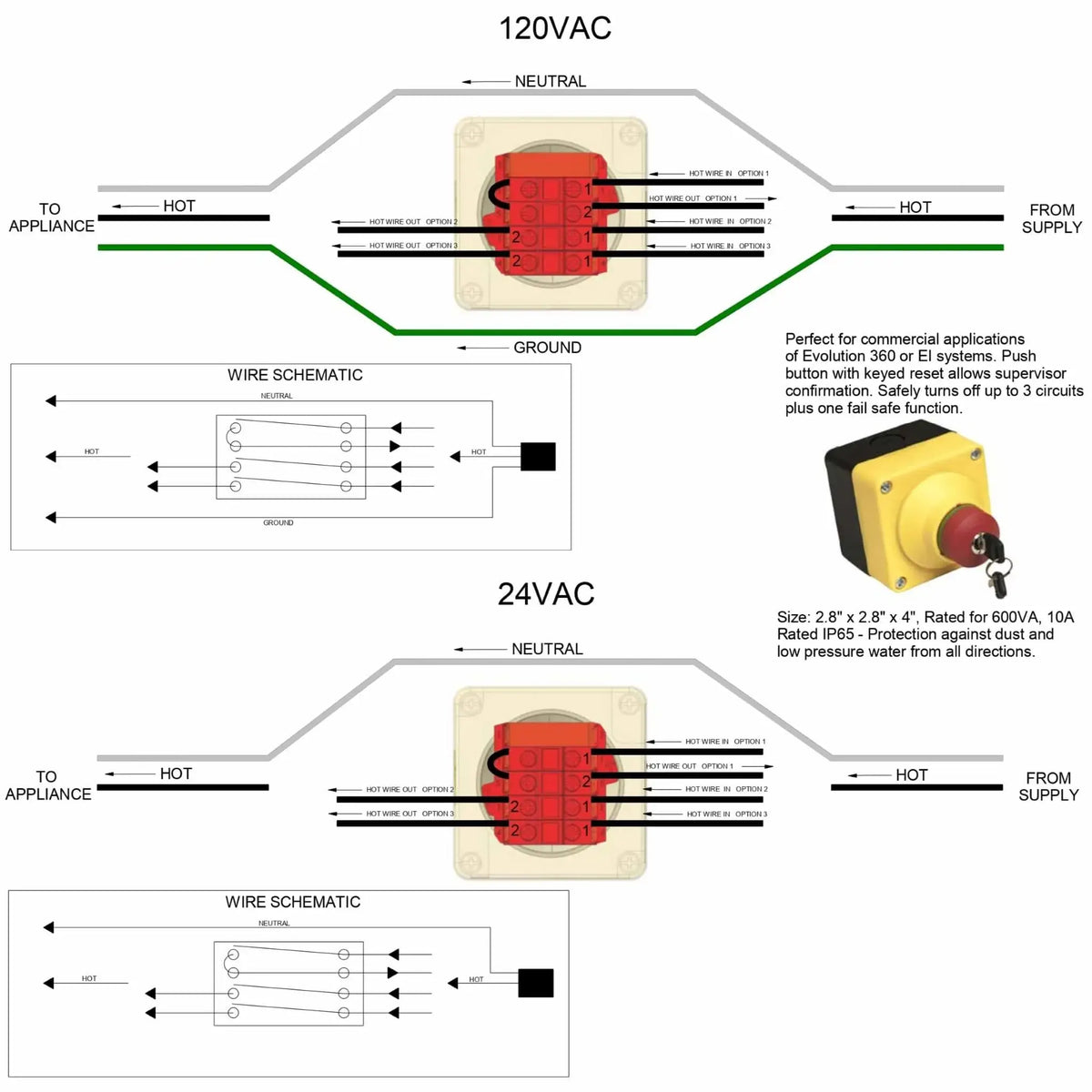

  • Detailed wiring diagram illustrating 120VAC and 24VAC configurations for a commercial emergency stop switch. The schematic shows labeled connections for hot, neutral, and ground wires, along with multiple circuit options and terminal layout, designed for safe integration with fire pit ignition or electrical control systems.

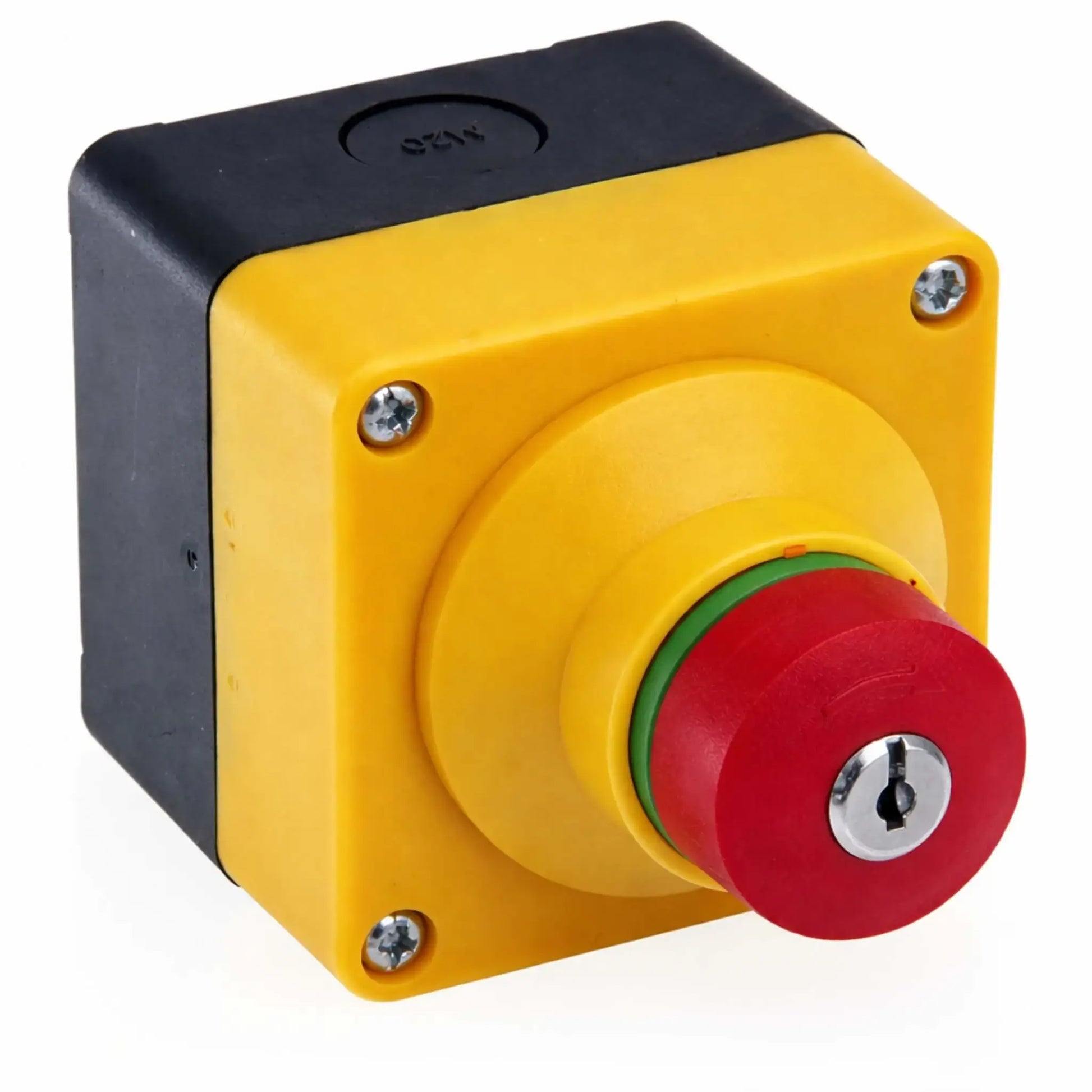

  • Angled front view of a commercial emergency stop button featuring a yellow faceplate and red push-button without the key inserted. The rugged design includes visible mounting screws and a recessed green indicator ring, emphasizing its use in safety shutoff systems for fire features or industrial controls.

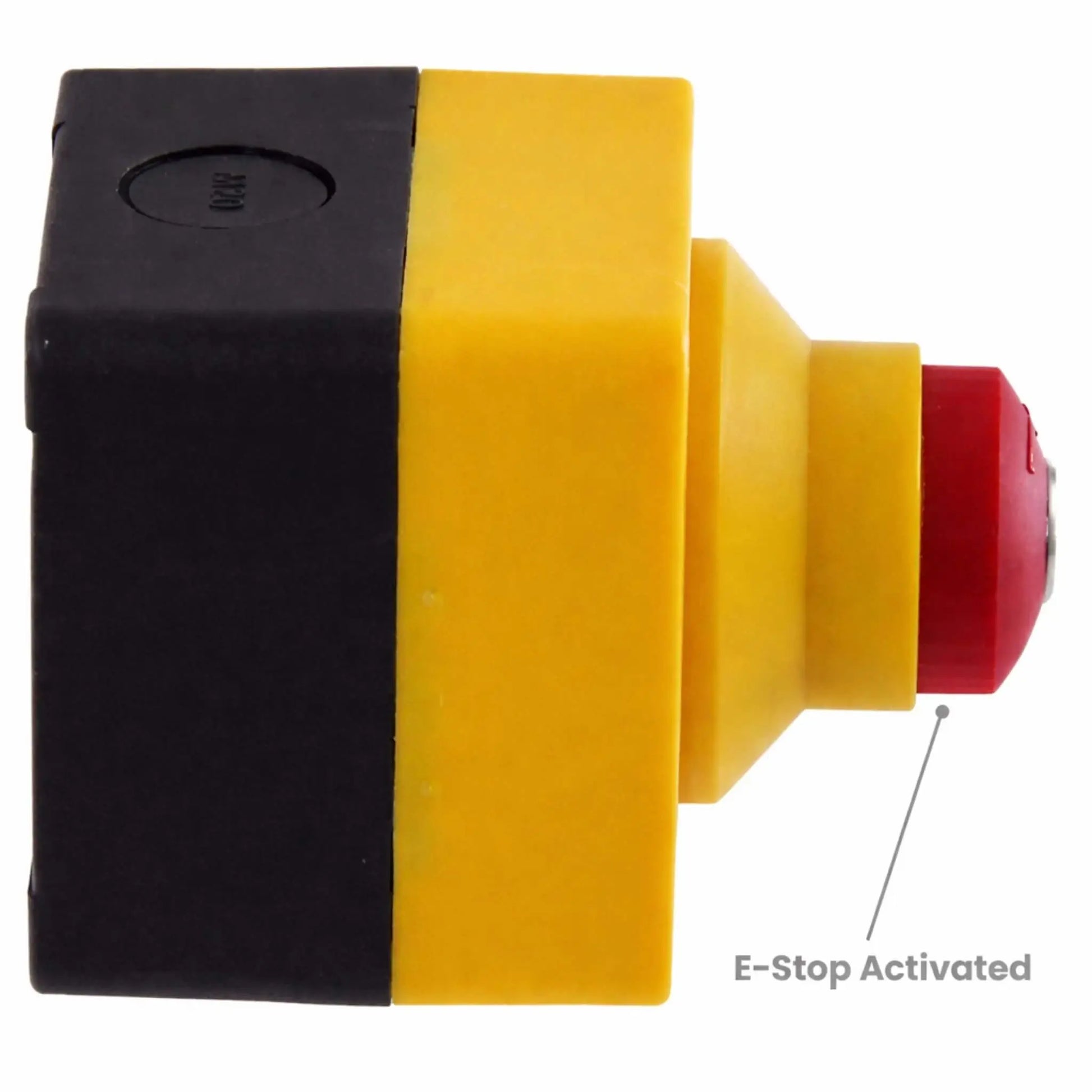

  • Side profile of an emergency stop control box in the activated position, showing the red button extended outward to indicate shutdown. The yellow and black enclosure highlights its industrial-grade build, with the extended button clearly signaling that the connected system has been safely disabled.

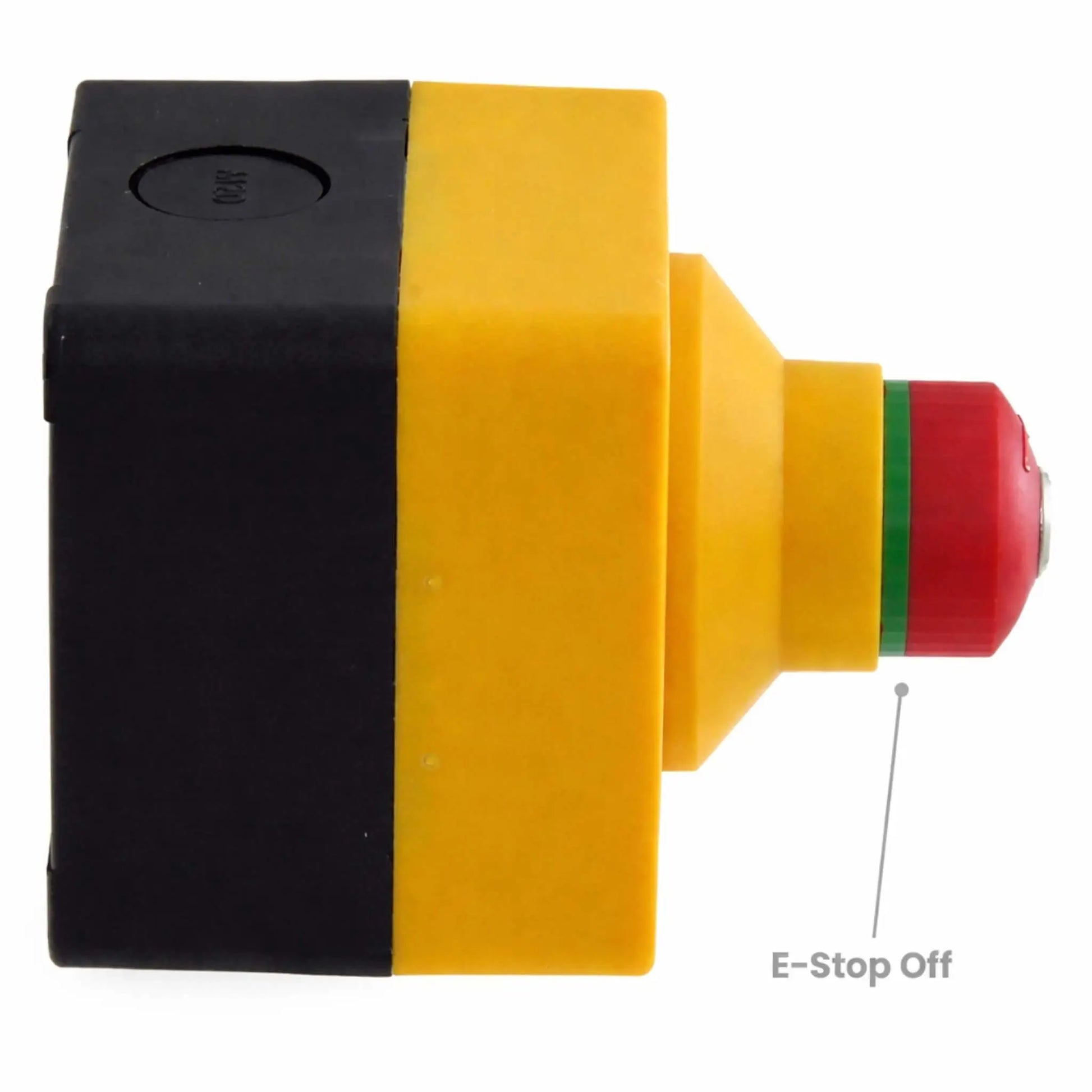

  • Side view of the emergency stop control unit in the deactivated or reset position, with the red button pushed inward and a green ring visible. The compact yellow and black housing demonstrates its ready-to-operate state, commonly used for commercial fire pit systems or electrical safety controls.

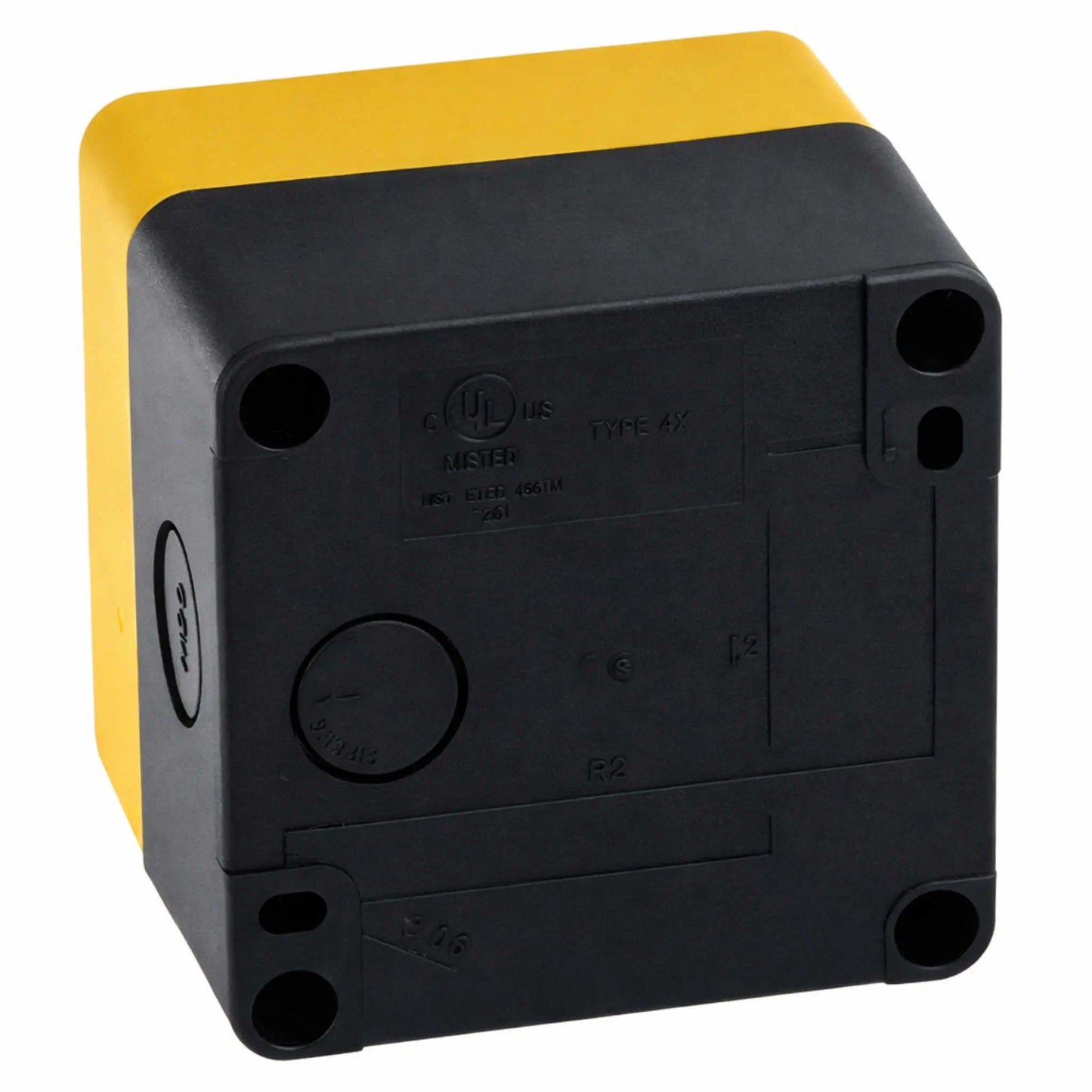

  • Rear view of a commercial emergency stop control box showing black plastic housing with molded UL certification markings, mounting holes, and knockout ports for conduit entry. The backside highlights wiring access points and structural design for secure installation in fire feature or electrical control systems.
1 6

Emergency Shutoff Switch 120VAC, 24VAC, and 12VAC by HPC Fire

Emergency Shutoff Switch 120VAC, 24VAC, and 12VAC by HPC Fire

gold proud authorized dealer badge

Ships in: 1-3 Business Days

311-ESTOP-3

$501.60 USD
$528.00 USD $501.60 USD
Sale Sold out
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

What's Included

  • One Emergency Shut-Off Switch

Specifications

Length: 2.8"

Width: 2.8"

Height: 4"

Weight: 4 lbs

Color: Yellow

Ignition Type: 120V, 24V, and 12V Electronic Ignition System

Warranty: 1 Year

Assembly: Some Assembly and Retrofitting Required

Documents & Downloads

Shipping & Returns

Shipping:

  • This Product Ships Small Parcel (Ground). For more details, please see our full shipping policy.

Returns & Exchanges:

  • This product is eligible for returns within 30 days of delivery minus 20% Re-Stocking Fee & any applicable Shipping cost. For more details, please see our full return policy.

Disclaimers

Important Safety Notice:

  • This product includes chemicals recognized by the State of California as potentially causing cancer, birth defects, or other reproductive harm. Please handle with care and adhere to all safety instructions outlined in the product manual. For detailed information about Proposition 65 and its implications, please visit the official CA Prop 65 Warning website.

Sooting or Blackening:

  • Due to the nature of Gas Burners, Sooting or Blacking seen on media is normal and to be expected. For excessive sooting, please refer to owner's manual attached.

Enhance the safety of your fire features and electrical systems with the Emergency Shutoff Switch 120VAC, 24VAC, and 12VAC by HPC Fire. Designed for quick and reliable operation, this push-button emergency switch instantly shuts off up to three circuits, plus an additional fail-safe function, ensuring maximum safety in critical situations. Built with durability in mind, it is rated IP65 for protection against dust and water, making it suitable for both indoor and outdoor installations.

Key Features:

  • Push-Button Emergency Shutoff: Instantly disables power to connected circuits for immediate safety.
  • Keyed Reset Function: Adds an extra layer of security by requiring a key to reactivate the system.
  • Multi-Circuit Control: Turns off up to three circuits simultaneously, with an additional fail-safe function for enhanced protection.
  • High Power Capacity: Handles up to 600VA and 10A, providing robust performance for commercial and residential applications.
  • IP65 Rated: Weather-resistant design ensures reliable operation in outdoor or harsh environments.

Prioritize safety with the Emergency Shutoff Switch 120VAC, 24VAC, and 12VAC by HPC Fire; reliable protection when it matters most.
