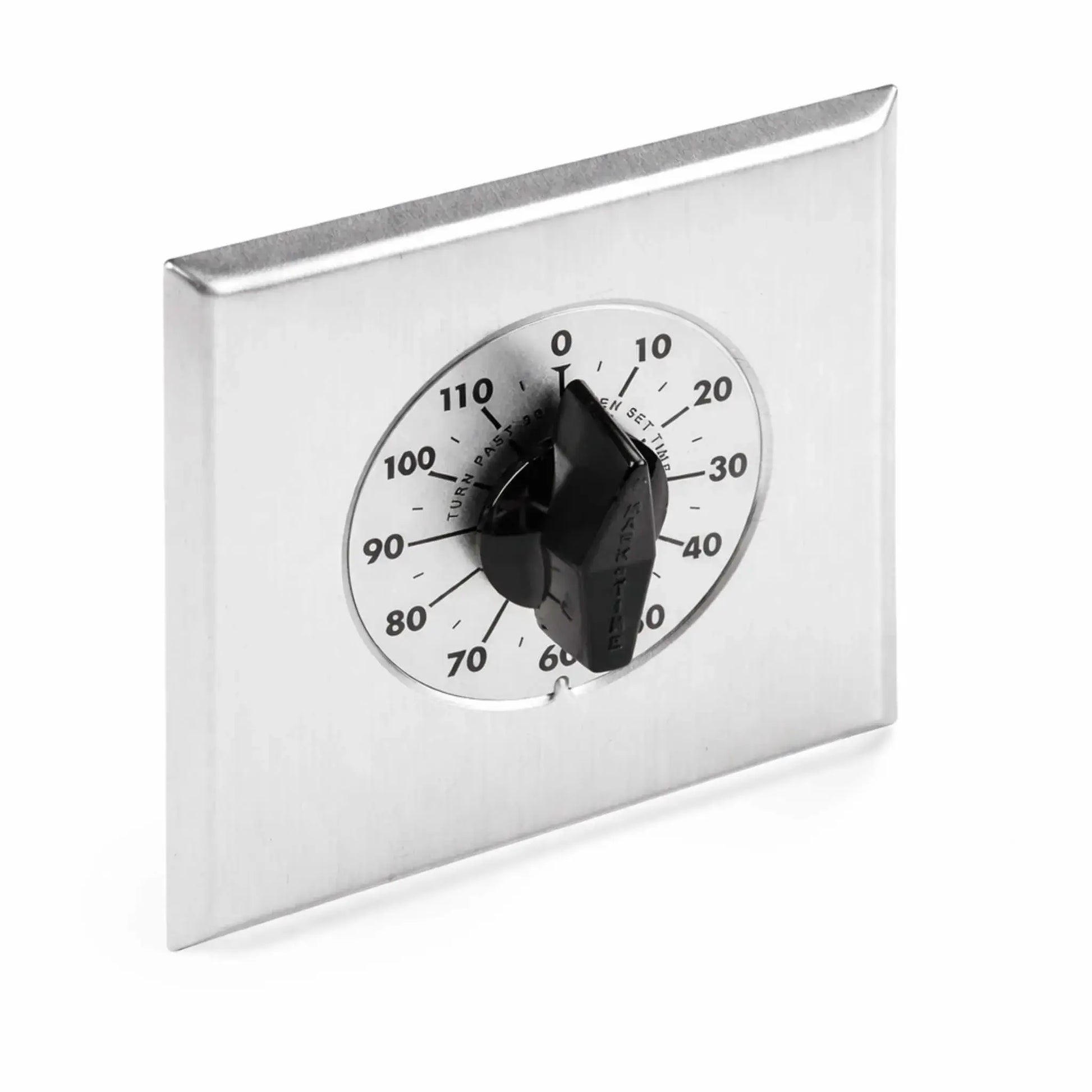

• Brushed stainless steel wall plate featuring a built-in mechanical countdown timer with a black rotary knob and clearly marked dial ranging from 0 to 120 minutes. Designed for 120V applications, this compact timer control is ideal for fire pit systems, heaters, or lighting where automatic shutoff is required.

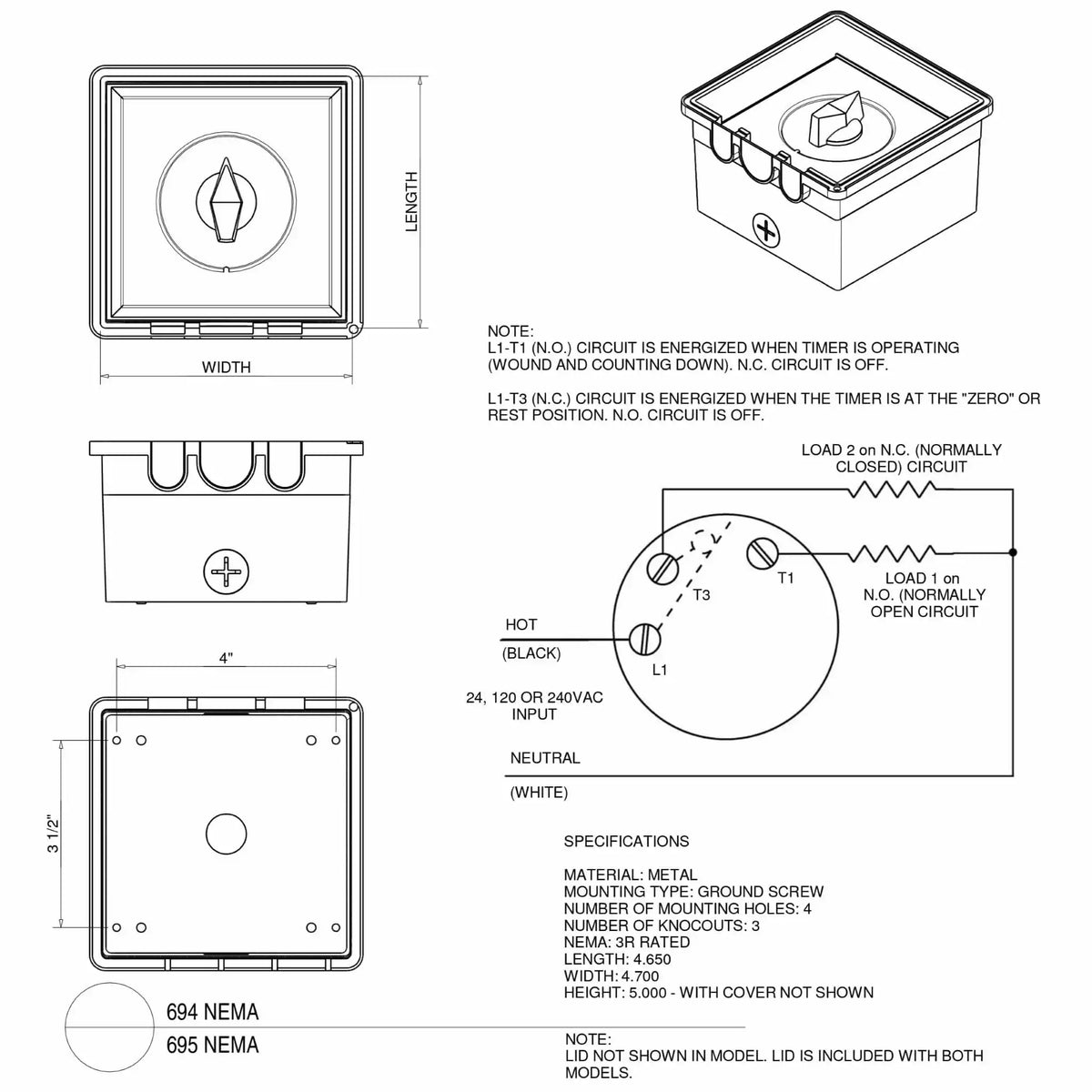

  • Technical diagram showing dimensions, mounting layout, and wiring configuration for automatic timer controls. Includes labeled terminals for hot and neutral connections, normally open and normally closed circuits, and detailed specifications for both 2-hour and 12-hour timer models used in fire pit or electrical control systems.
1 2

Commercial Automatic Shutoff Timers 120VAC by HPC Fire

Commercial Automatic Shutoff Timers 120VAC by HPC Fire

gold proud authorized dealer badge

Ships in: 1-3 Business Days

694

Hours
Weatherproof Box
$519.65 USD
$547.00 USD $519.65 USD
Sale Sold out
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

What's Included

  • One Timer Switch

Specifications

Length: 4.65"

Width: 4.7"

Height: 5"

Weight: 4 lbs

Color: Silver

Fuel Type: Natural Gas and Propane Gas

Ignition Type: 120V Electronic Ignition System

Warranty: 1 Year

Assembly: Some Assembly and Retrofitting Required

Documents & Downloads

Shipping & Returns

Shipping:

  • This Product Ships Small Parcel (Ground). For more details, please see our full shipping policy.

Returns & Exchanges:

  • This product is eligible for returns within 30 days of delivery minus 20% Re-Stocking Fee & any applicable Shipping cost. For more details, please see our full return policy.

Disclaimers

Important Safety Notice:

  • This product includes chemicals recognized by the State of California as potentially causing cancer, birth defects, or other reproductive harm. Please handle with care and adhere to all safety instructions outlined in the product manual. For detailed information about Proposition 65 and its implications, please visit the official CA Prop 65 Warning website.

Sooting or Blackening:

  • Due to the nature of Gas Burners, Sooting or Blacking seen on media is normal and to be expected. For excessive sooting, please refer to owner's manual attached.

Ensure safety and convenience for your fire features with Commercial Automatic Shutoff Timers by HPC Fire. Designed for commercial-grade reliability, these stainless steel rotary timers automatically shut off gas or electrical appliances after a preset time, providing peace of mind and energy efficiency. Perfect for outdoor fire pits, fireplaces, or any 120VAC application, these timers are available in two time settings and optional NEMA 3R weatherproof kits for versatile use.

Key Features:

  • Durable Stainless Steel Construction: Built to withstand commercial use and outdoor environments.
  • Automatic Shutoff: Helps improve safety and energy efficiency by automatically turning off connected systems.
  • Versatile Timing Options:
    • 2-Hour Timer (SKU: 694): Ideal for shorter operation durations.

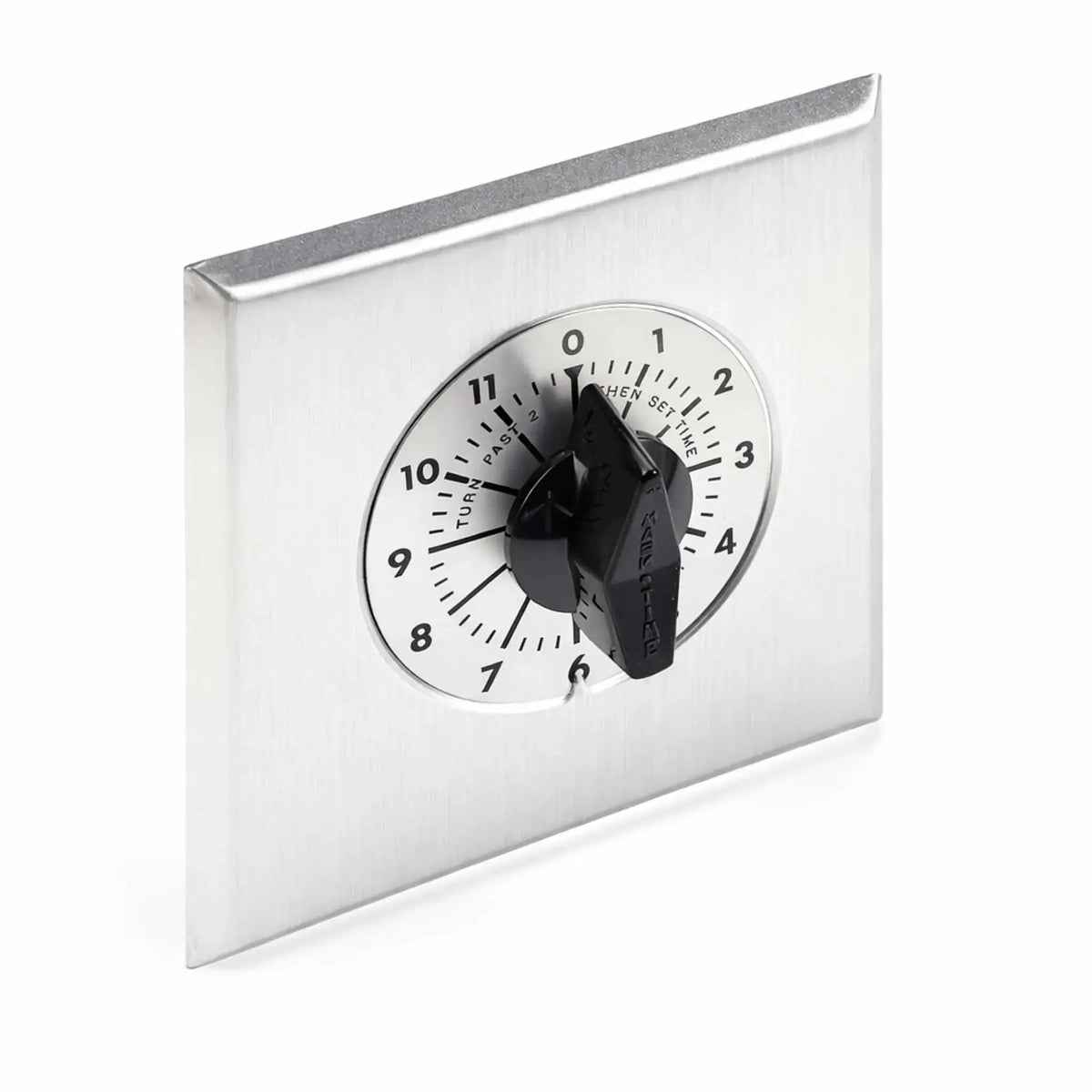

    • 12-Hour Timer (SKU: 695): Perfect for extended use without manual monitoring.

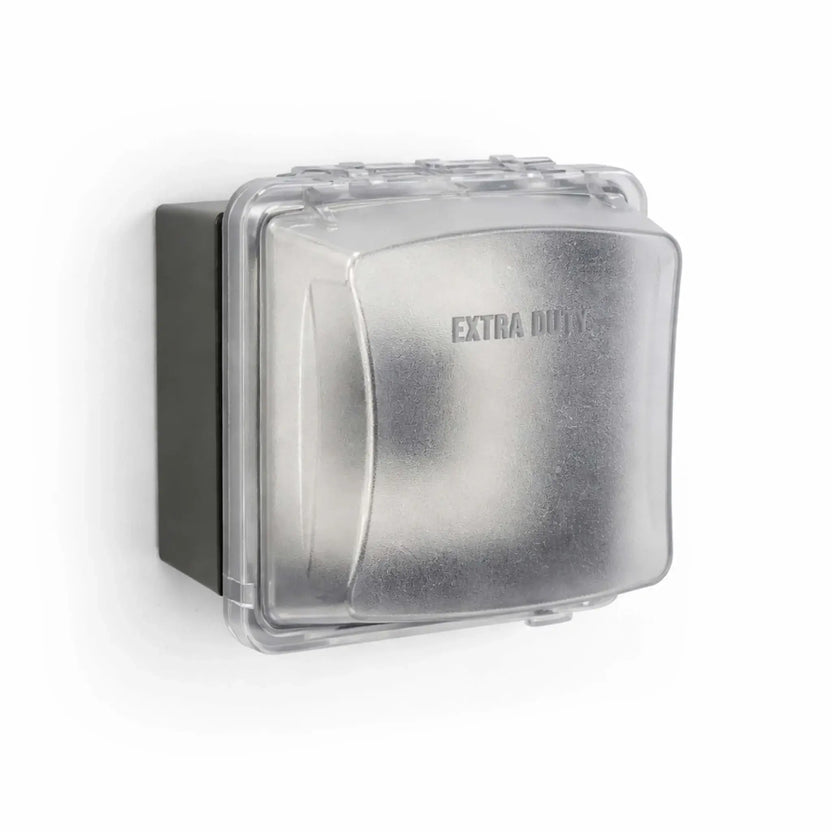

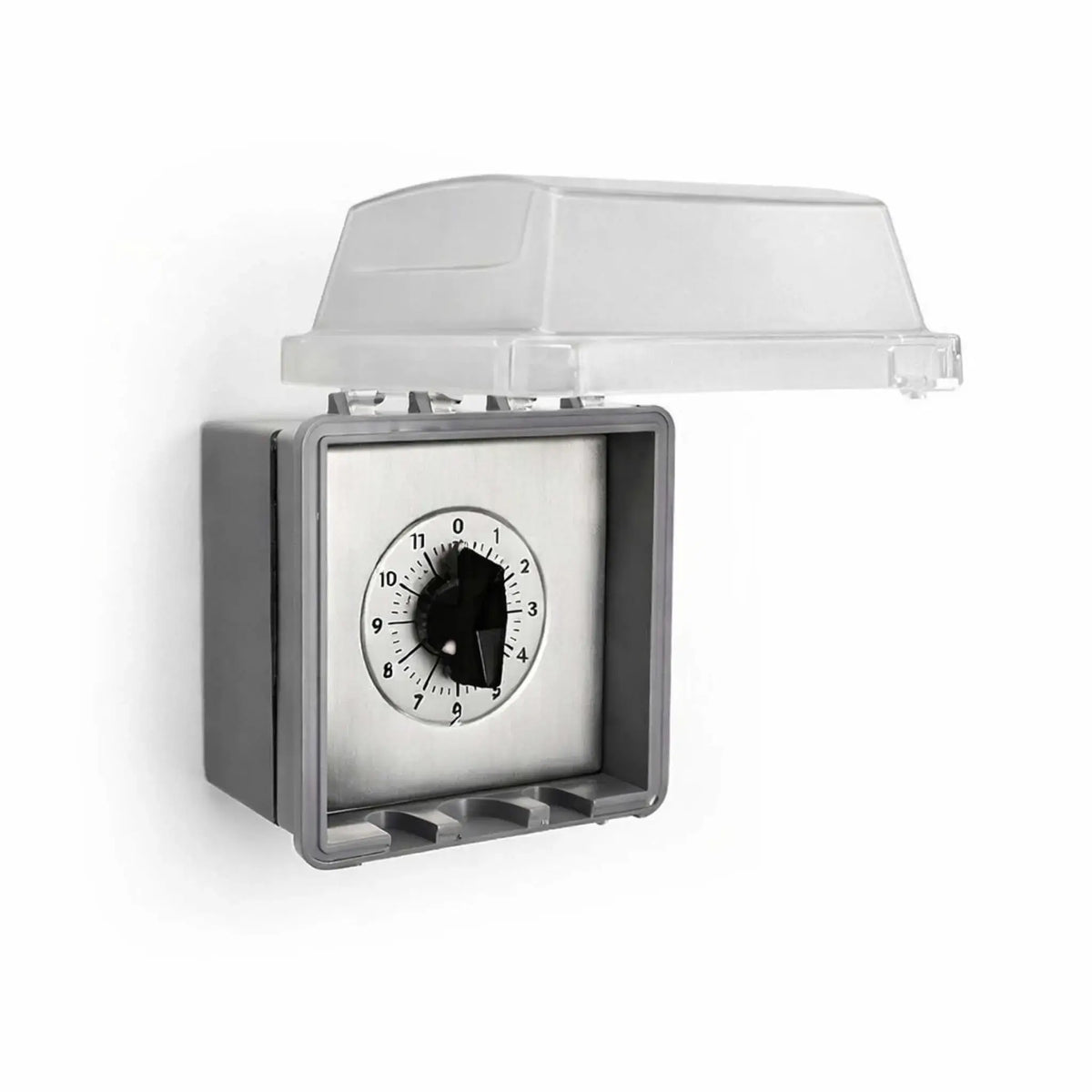

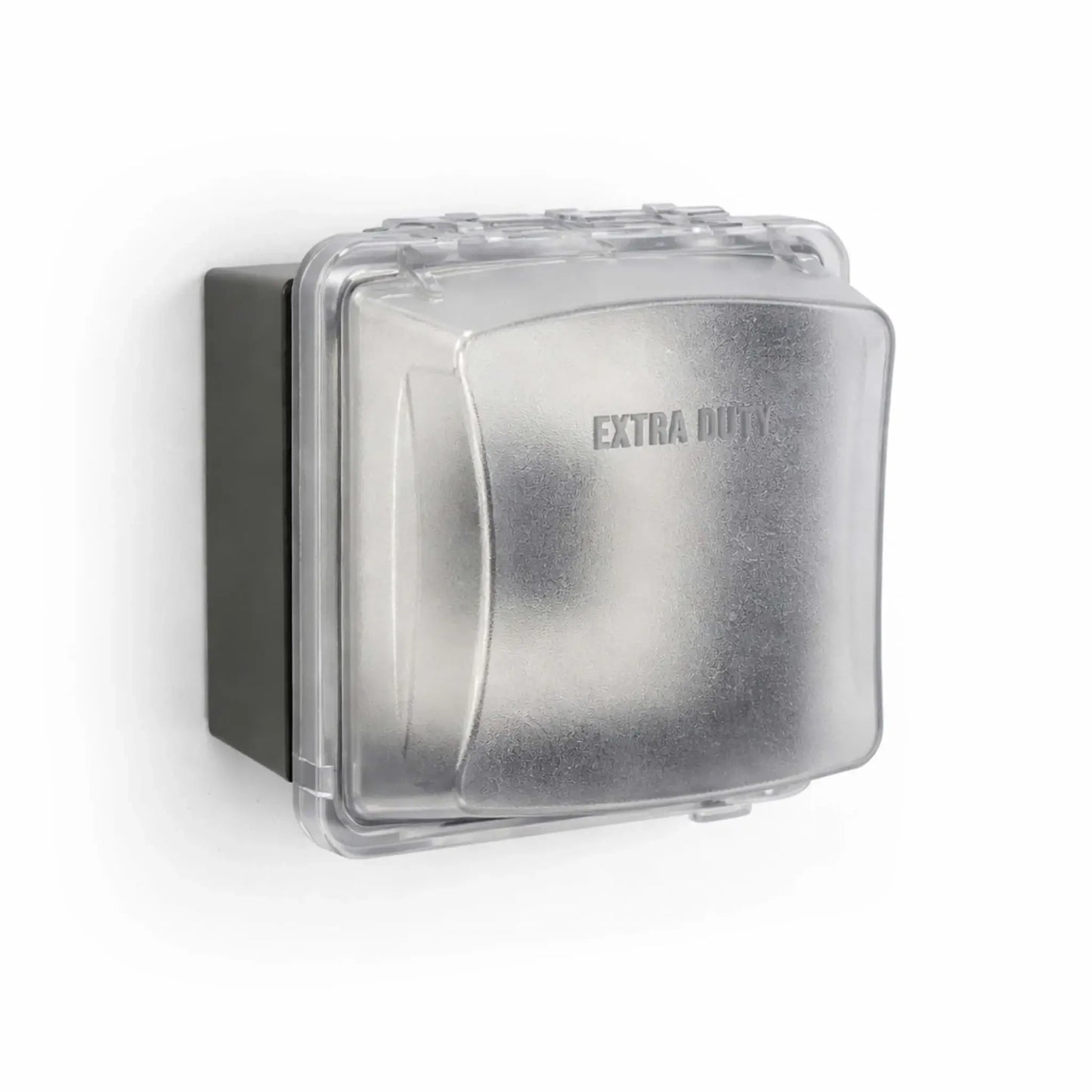

  • NEMA 3R Weatherproof Option: Includes a protective box for outdoor installations, ensuring durability in harsh conditions.
    • 694 NEMA: 2-hour timer with NEMA 3R box.
    • 695 NEMA: 12-hour timer with NEMA 3R box.
  • High Power Rating: Supports up to 20A SPDT (single pole, double throw) systems.
  • Easy Installation: Recommended for use with a 1/2" deep double gang box for a clean, secure fit.

Upgrade your fire feature's safety with Commercial Automatic Shutoff Timers by HPC Fire; precision and durability in every turn.
