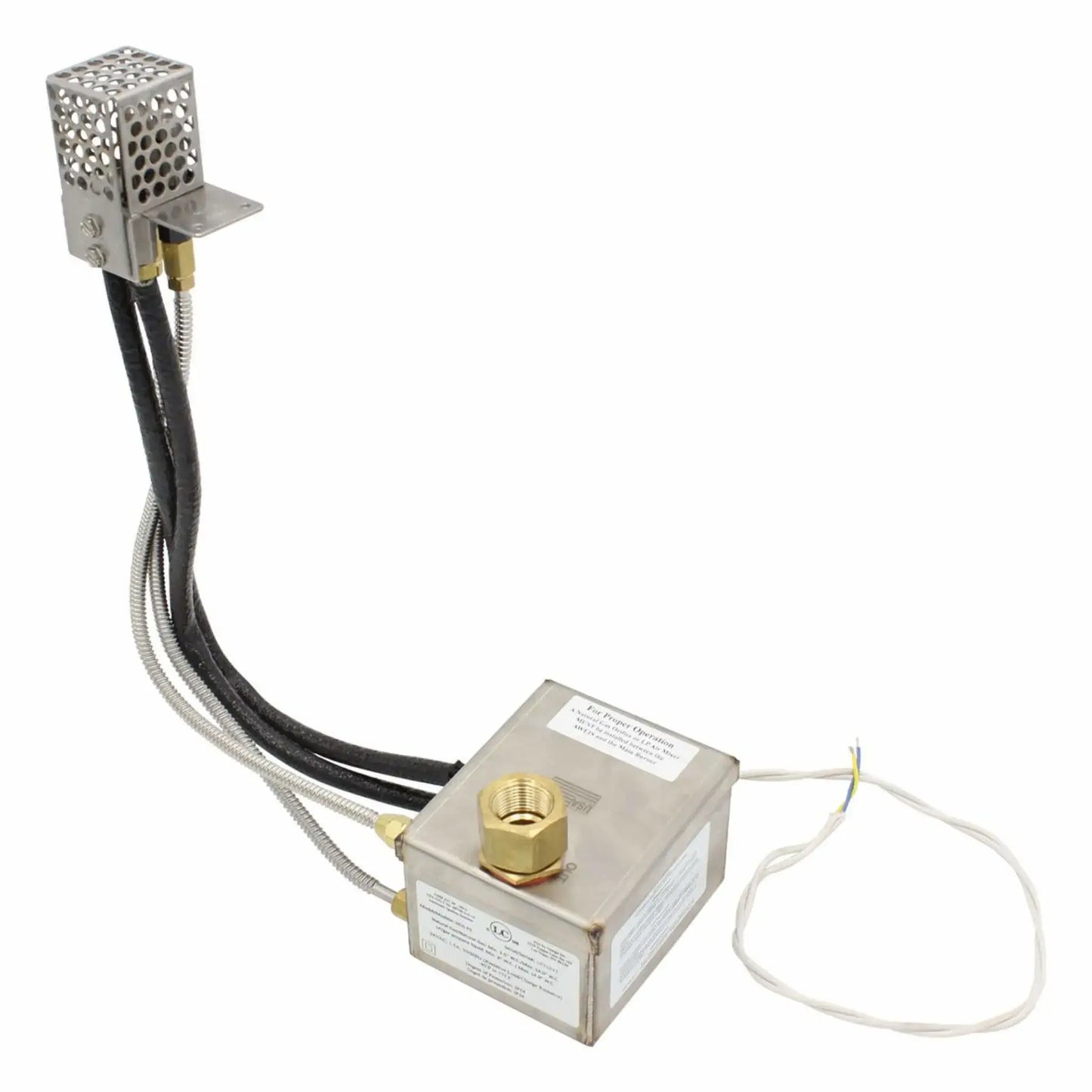

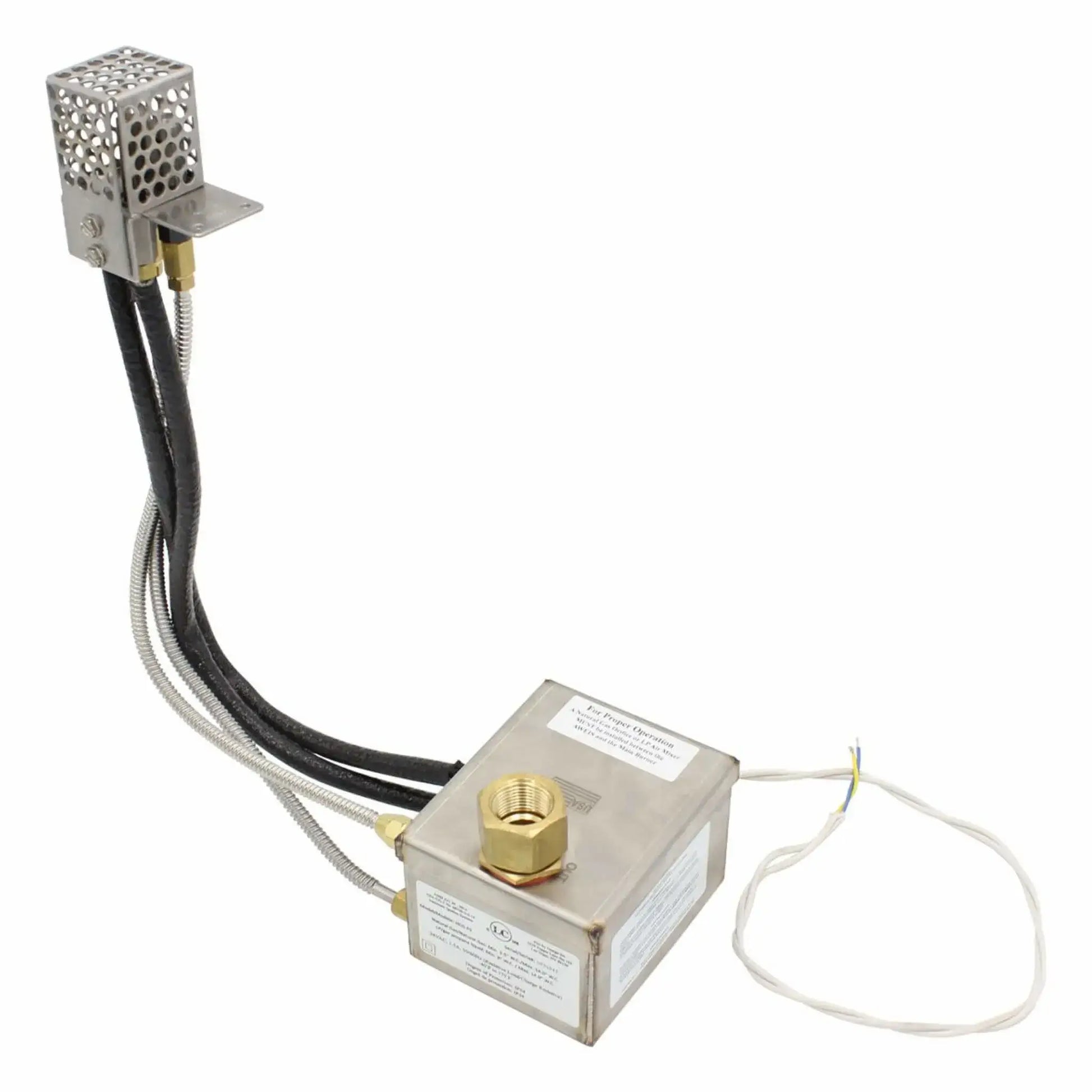

• Complete Fire by Design AWEIS high-capacity electronic ignition kit for outdoor gas fire pits, including stainless steel ignition control box with brass fittings, pilot burner assembly with protective cage, flexible stainless braided gas lines, insulated wiring leads, and mounting hardware for reliable all-weather natural gas or propane ignition.

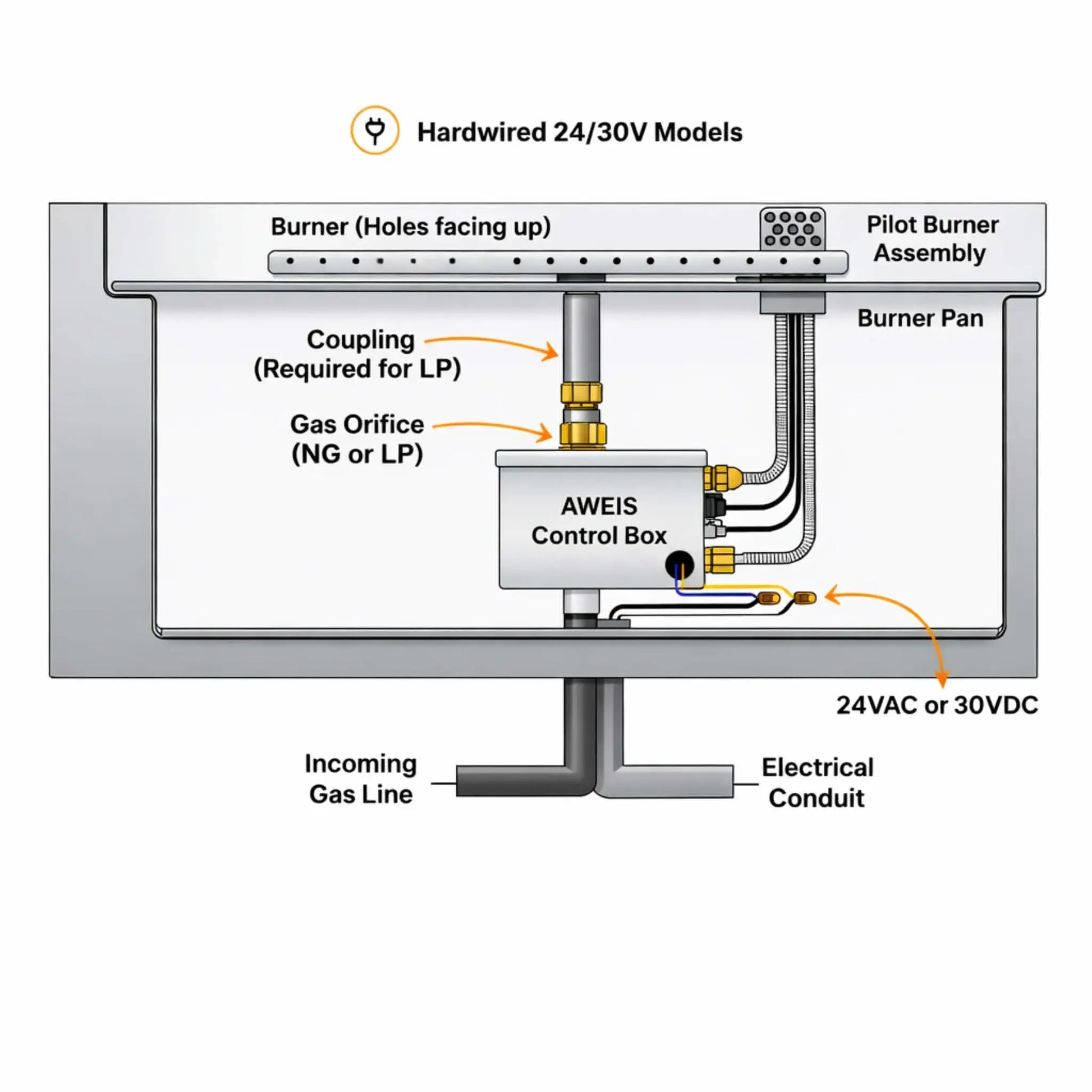

  • Detailed installation diagram of the Fire by Design AWEIS All-Weather Electronic Ignition System showing burner pan layout, pilot burner assembly, gas orifice (NG or LP), control box, electrical conduit, and incoming gas line, labeled for hardwired 24VAC or 30VDC fire pit installations.

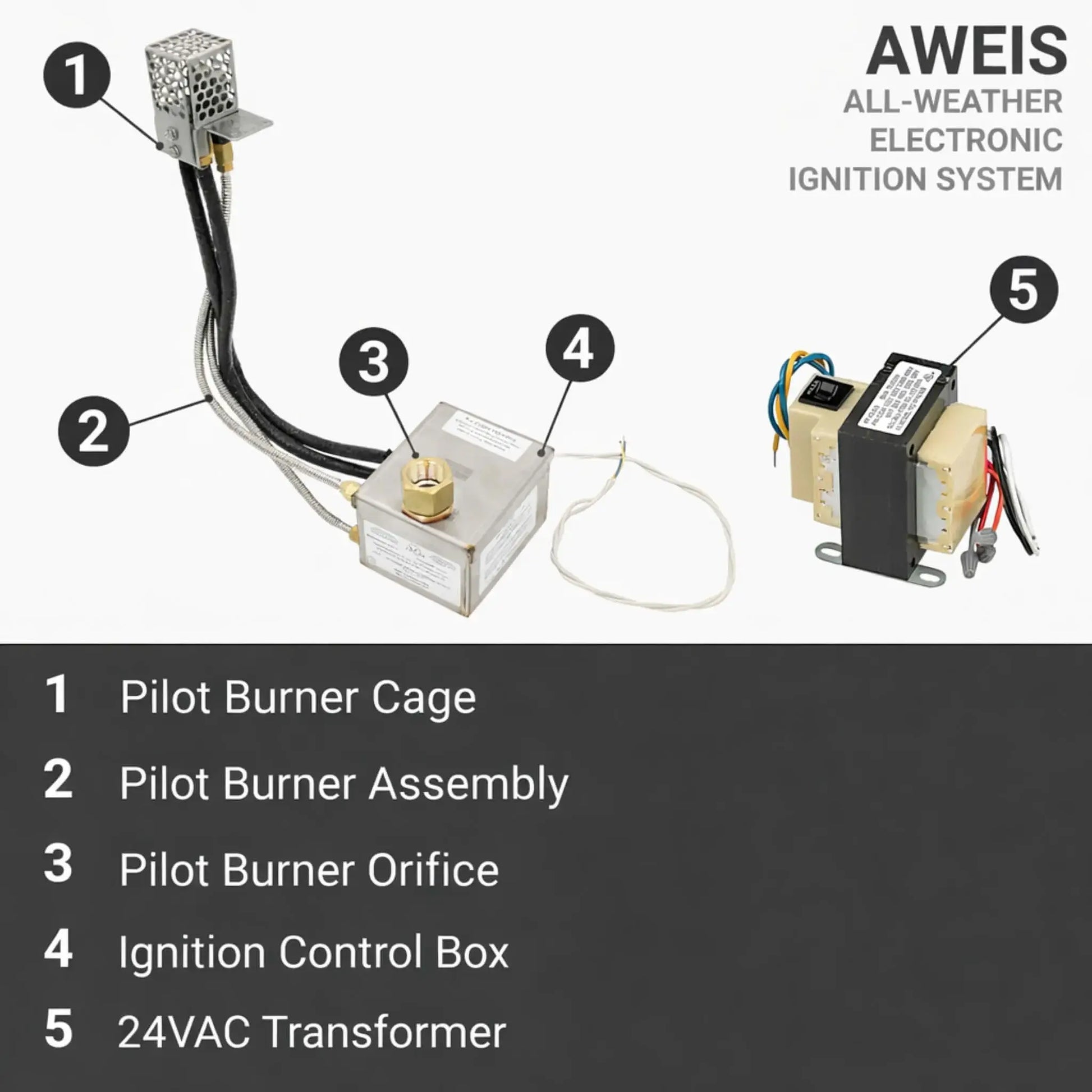

  • Component breakdown graphic of the Fire by Design AWEIS All-Weather Electronic Ignition System identifying the pilot burner cage, pilot burner assembly, pilot burner orifice, stainless steel ignition control box, and 24VAC transformer, clearly labeled for high-capacity natural gas and propane fire pit systems.

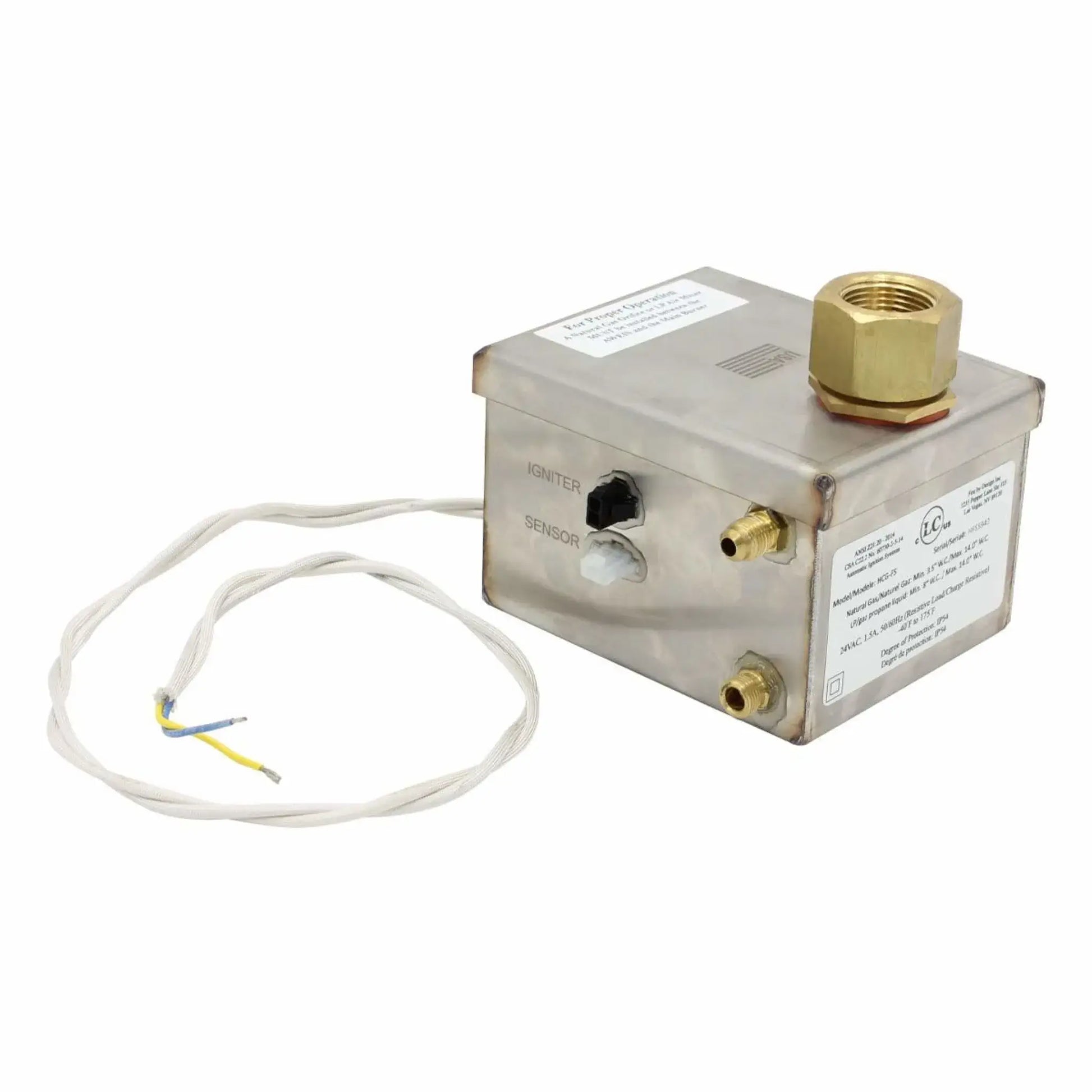

  • Close-up angled view of the Fire by Design AWEIS high-capacity ignition control box for natural gas and propane fire pits, featuring a stainless steel enclosure, large brass gas inlet fitting on top, side-mounted gas ports, clearly labeled igniter and sensor terminals, and braided low-voltage lead wires for all-weather electronic ignition systems.

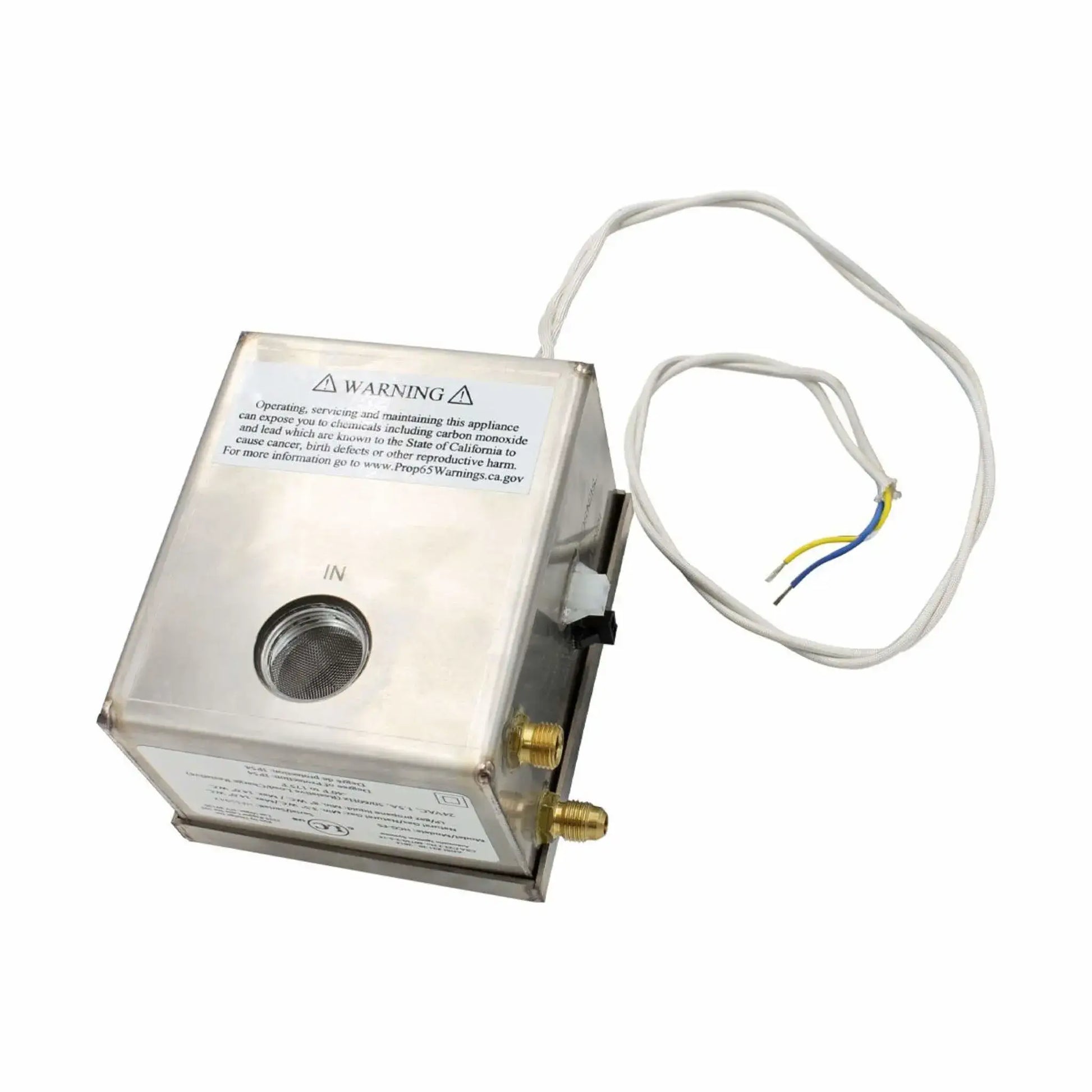

  • Underside view of the AWEIS high-capacity stainless steel ignition control box showing the threaded gas “IN” port with internal screen, dual brass gas connections on the side, weather-sealed wire pass-through, and manufacturer warning label, designed for outdoor natural gas or propane fire feature installations.

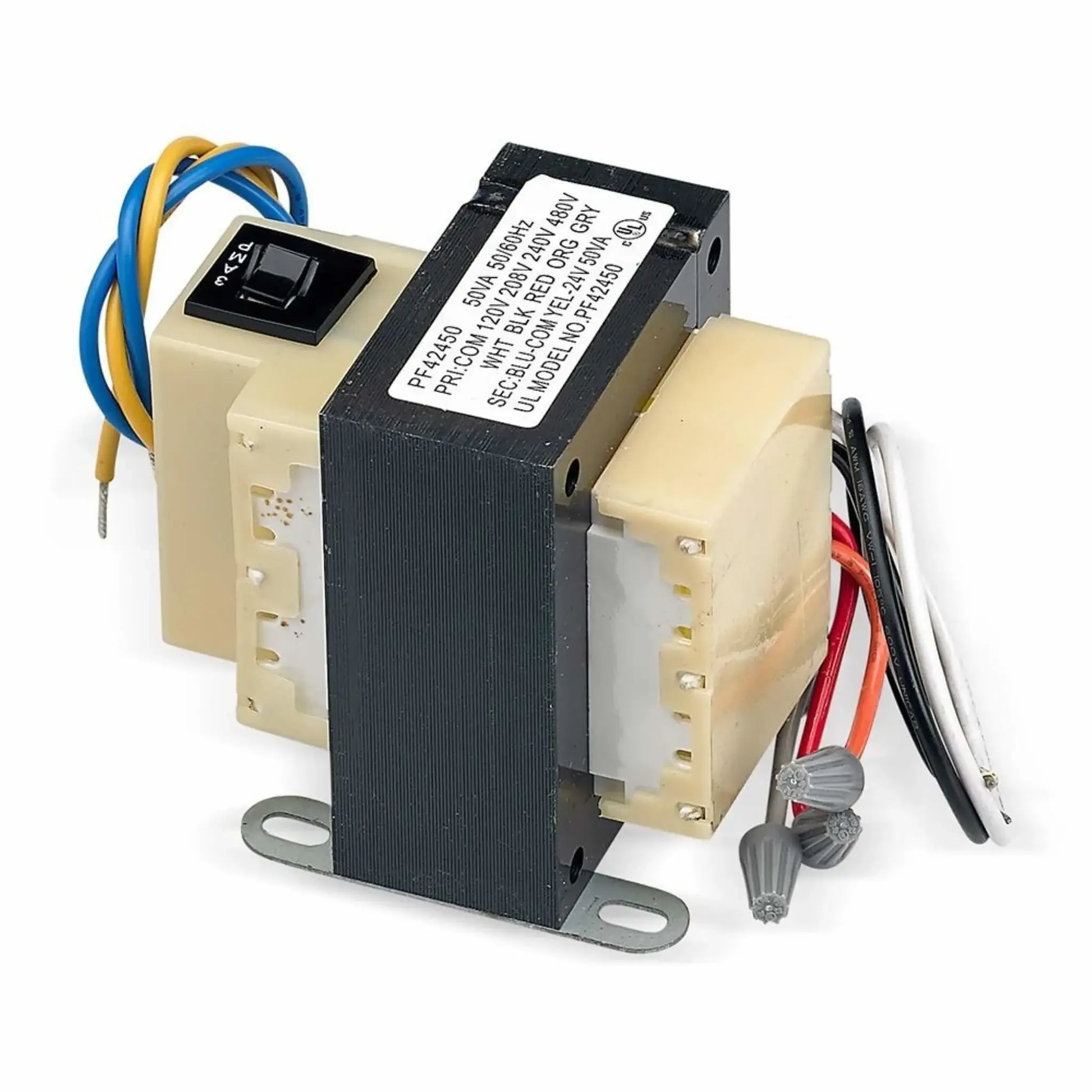

  • Close-up product image of a 24VAC transformer used with the Fire by Design AWEIS All-Weather Electronic Ignition System, featuring a black laminated steel core, beige housing, integrated on/off switch, and multiple colored lead wires for hardwired 24-volt fire pit ignition applications.
1 6

24v High Capacity All Weather Electronic Ignition System AWEIS by American Fire Products

24v High Capacity All Weather Electronic Ignition System AWEIS by American Fire Products

  • Premium Craftsmanship
  • Warranty Included
  • Certified Performance

Ships in: 5-7 Business Days

HCGNG-FS

Gas Type
$2,024.25 USD
$2,699.00 USD $2,024.25 USD
Sale Sold out
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

What's Included

24v High Capacity Electronic Ignition System:

  • 18" Pilot Assembly (Built for your Gas Type)
  • Ignition Control Box
  • 24VAC Transformer

Specifications

Length: Ignition Box

  • Natural Gas: 5.5"
  • Propane Gas: 5.5"

Width: Ignition Box

  • Natural Gas: 4.5"
  • Propane Gas: 4.5"

Height: Ignition Box

  • Natural Gas: 6.5"
  • Propane Gas: 8.75"

Weight: 10 lbs

Material/Finish: 316 Stainless Steel Ignition Box

Fuel Type: Natural Gas or Propane Gas

Heat Output (BTUs): Up to 780K (depending on gas supply pressure and volume)

Ignition Type: 24v Electronc Ignition

Certification: 24v Electronic Ignition LC Certification

Warranty: 1 Year Limited Warranty (See Owner's Manual for more Details)

Assembly: Assembly Required

Documents & Downloads

Shipping & Returns

Shipping:

  • This Product Ships Small Parcel (Ground). For more details, please see our full shipping policy.

Returns & Exchanges:

  • This product is eligible for returns within 30 days of delivery minus 15% Re-Stocking Fee & any applicable Shipping cost. For more details, please see our full return policy.

Disclaimers

Important Safety Notice:

  • This product includes chemicals recognized by the State of California as potentially causing cancer, birth defects, or other reproductive harm. Please handle with care and adhere to all safety instructions outlined in the product manual. For detailed information about Proposition 65 and its implications, please visit the official CA Prop 65 Warning website.
  • It is always highly advised to used a certified gas plumber and certified electrician to handle the installation, troubleshooting, and maintenance of this product.
  • Lava Rock must be dry prior to lighting burner. If Moisture is within Lava Rock (from a rainy day or humid area), turn fire pit on slowly, allowing excess moisture to evaporate within the first few minute before increasing the heat. Popping can result if instructions are not followed.

Sooting or Blackening:

  • Due to the nature of Gas Burners, Sooting or Blacking & Bluing on Stainless Steel seen on media is normal and to be expected. For excessive sooting, please refer to owner's manual attached.

The 24v High Capacity All Weather Electronic Ignition System AWEIS by American Fire Products is a premium hardwired ignition solution designed for outdoor gas fire pits, fire bowls, and custom fire features. Engineered for dependable all-weather performance, this system delivers safe, automatic ignition and flame monitoring for burners up to 290,000 BTUs.

Designed for Natural Gas (NG) or Propane (LP) HARDLINE applications only, this 24-volt system is ideal for professional installations requiring long-term durability and code-compliant operation.

Industry-Leading All-Weather Ignition Performance

The AWEIS (All Weather Electronic Ignition System) is specifically built to withstand harsh outdoor environments including:

  • Rain and moisture
  • Wind exposure
  • Cold-weather installations
  • High humidity climates

Its sealed stainless steel control box protects critical components, ensuring consistent performance season after season.

High Capacity - Up to 780,000 BTU/hr

This high Capacity AWEIS system supports burners up to approximately 780,000 BTUs, making it ideal for:

  • Residential gas fire pits
  • Outdoor linear burners
  • Custom masonry fire features
  • Commercial patio installations

24v Hardwired System (NG or LP HARDLINE Only)

This ignition system operates on 24 Volt power and is designed for permanent hardline gas installations.

Available Fuel Options:

  • Natural Gas (NG) – Hardline
  • Propane Gas (LP) – Hardline

Not intended for portable propane tanks.

Complete Ignition Assembly Includes:

  • Stainless steel AWEIS control box
  • Pilot burner assembly with protective cage
  • Pilot burner orifice (NG or LP specific)
  • Ignition control module
  • 24VAC transformer
  • Flame sensor
  • Wiring harness

Designed for integration with fire pit burner pans and hard-piped gas supply systems.

Advanced Flame Sensing & Safety Shutoff

Safety is at the core of the AWEIS system.

  • Automatic flame sensing technology
  • Immediate gas shutoff if flame loss is detected
  • Reignition attempt sequence
  • Code-compliant safety design

This ensures reliable startup and protection against unburned gas discharge.

Key Features

  • 24 Volt hardwired ignition system
  • High capacity up to 780,000 BTU/hr
  • Available in Natural Gas or Propane (hardline only)
  • All-weather stainless steel control box
  • Automatic spark ignition
  • Flame rectification sensor technology
  • Designed for outdoor fire pits and fire features
  • Professional-grade performance

Ideal For

  • Custom outdoor gas fire pits
  • Linear burner systems
  • Fire bowls and contemporary fire features
  • Hardscape and masonry fire pit builds
  • Residential and light commercial installations

Upgrade Your Fire Feature with Reliable Electronic Ignition

The 24v High Capacity All Weather Electronic Ignition System AWEIS by American Fire Products provides dependable, weather-resistant ignition for premium gas fire installations.
